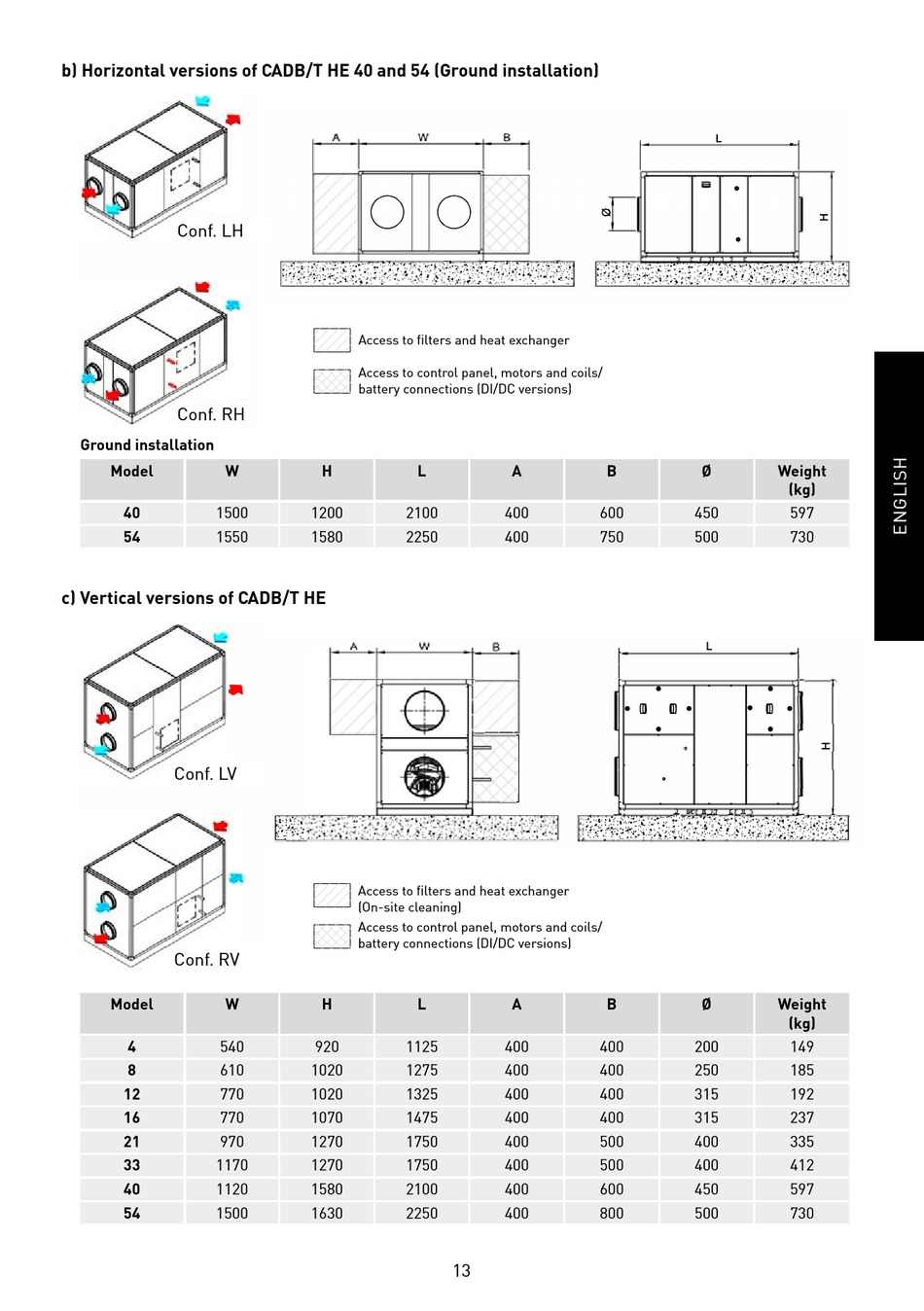

S&P CADB/T-HE PRO-REG Series Instruction Manual page 13

b) Horizontal versions of CADB/T HE 40 and 54 (Ground installation)
Conf. LH
Conf. RH
Ground installation
Model W
40 1500
54 1550
c) Vertical versions of CADB/T HE
Conf. LV
Conf. RV
Model W
4 540
8 610
12 770
16 770
21 970
33 1170
40 1120
54 1500
Access to fi lters and heat exchanger
Access to control panel, motors and coils/
battery connections (DI/DC versions)
H L
1200 2100
1580 2250
Access to fi lters and heat exchanger
(On-site cleaning)
Access to control panel, motors and coils/
battery connections (DI/DC versions)
H L
920 1125
1020 1275
1020 1325
1070 1475
1270 1750
1270 1750
1580 2100
1630 2250
13
A B
400 600
400 750
A B
400 400
400 400
400 400
400 400
400 500
400 500
400 600
400 800
Ø Weight
(kg)
450 597
500 730
Ø Weight
(kg)
200 149
250 185
315 192
315 237
400 335
400 412
450 597
500 730
