Avoid condensations in electrical cabinet
In units located in outdoor installation where the heat recovery units stop during the night or
during long intervals of time, it is necessary to:
a) Install isolation dampers in air inlet and air outlet.
b) Add anticondensation devices in the electrical cabinet as: cabinet heating elements that pre-
vent condensation formation on cabinet surfaces and electronic components.

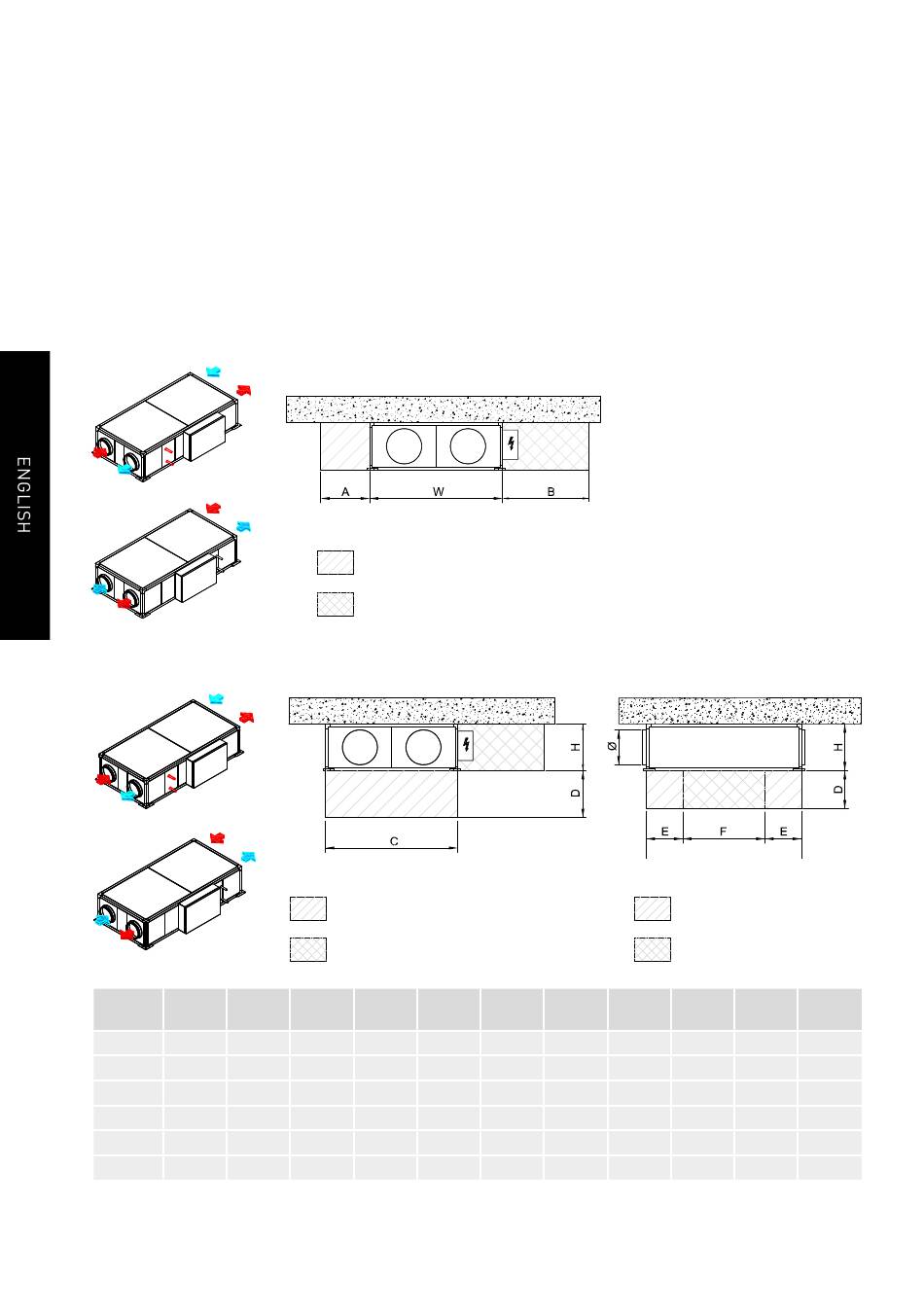

6.2. DIMENSIONS AND FREE SPACE FOR MAINTENANCE

a) Horizontal versions of CADB/T HE 04 to 21 (False ceiling installation)
Distances for maintenance in installations with access from the lateral panels
Conf. LH
Conf. RH
Distances for maintenance in installations with access from the inferior panels
Conf. LH
Conf. RH
Model W
04 760 375
08 910 425
12 1050 425
16 1240 450
21 1640 550
33 1640 650
Access to fi lters and heat exchanger
Access to control panel, fans and coils/battery
connections (DI/DC versions)
Access to fi lters and heat exchanger
Access to control panel, fans and coils/battery
connections (DI/DC versions)
H L A
1520 400
1750 450
1700 500
1950 600
2300 800
2300 800
B C D
400 700 350
400 860 400
400 1000 400
500 1190 425
700 1590 525
700 1590 625
12
L
Access to fi lters and fan
Access to heat exchanger
Ø E F
200 350 920
250 400 950
315 400 900
315 400 1150
400 500 1300
400 500 1300
Weight
(kg)
147
183
190
235
333
420
