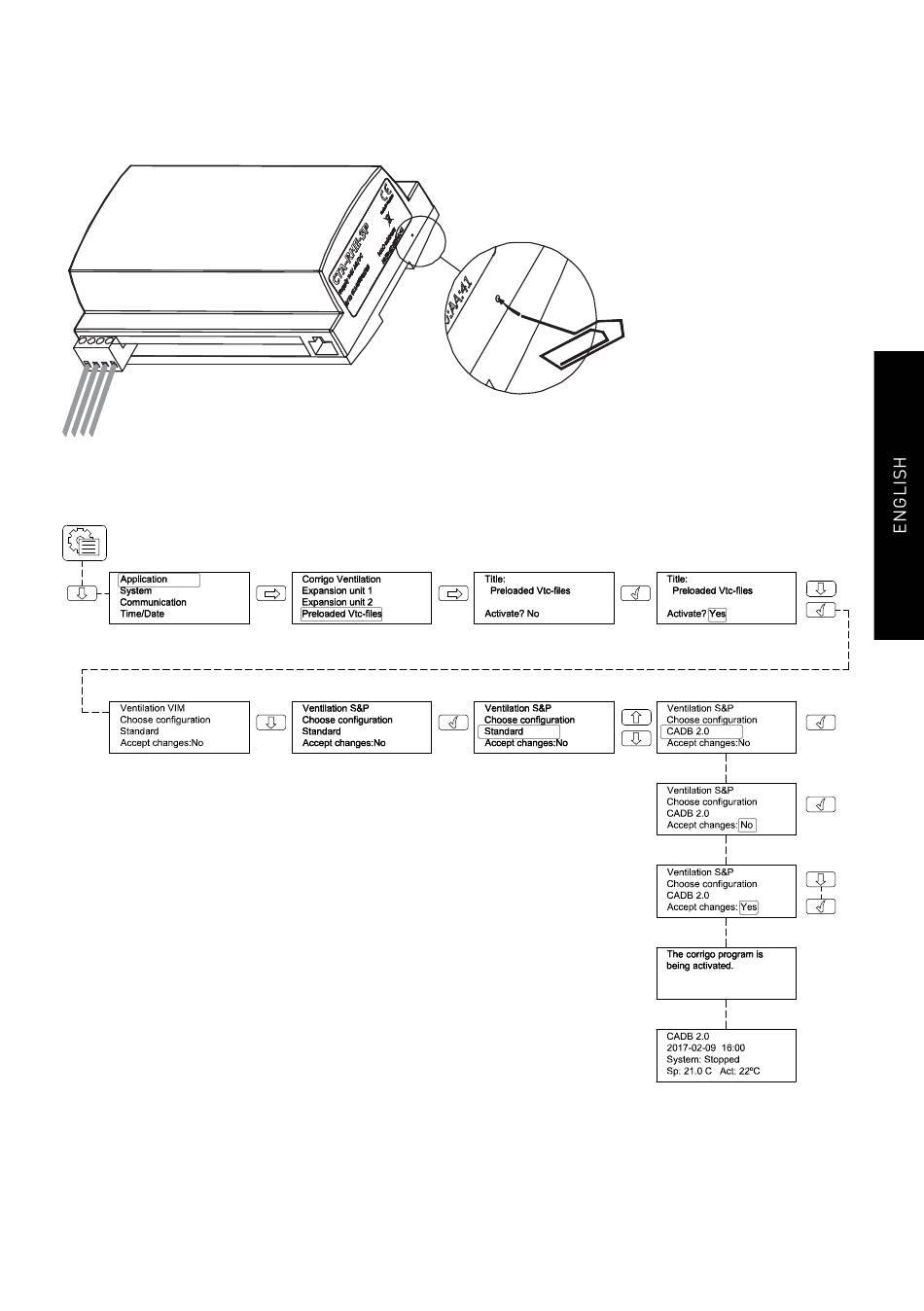

To reset the controller use a clip as shown in the picture: connect the ETD remote control cable and
hook the Corrigo back onto the DIN rail. DO NOT CONNECT ANY OTHER PLUGS – AT THIS POINT, ONLY
THE ETD REMOTE CONTROL AND 4-WAY ELECTRICAL SUPPLY PLUG SHOULD BE CONNECTED TO
THE CORRIGO.
When the ETD cable and 4-Way electrical supply plug have been connected, perform the following
sequence of operations:
Isolate the electrical power supply again. Re-connect all of the other cables to the Corrigo controller
and fi nally re-energise CADB/T-HE and the reset procedure is now complete.
The run mode of the system (I.e VAV/CAV/COP) should now be re-set-up, together with ensuring that
the additional parameters (K-Constant, heater type etc.) are correct.
53
