Control Reconfiguration - S&P CADB/T-HE PRO-REG Series Instruction Manual

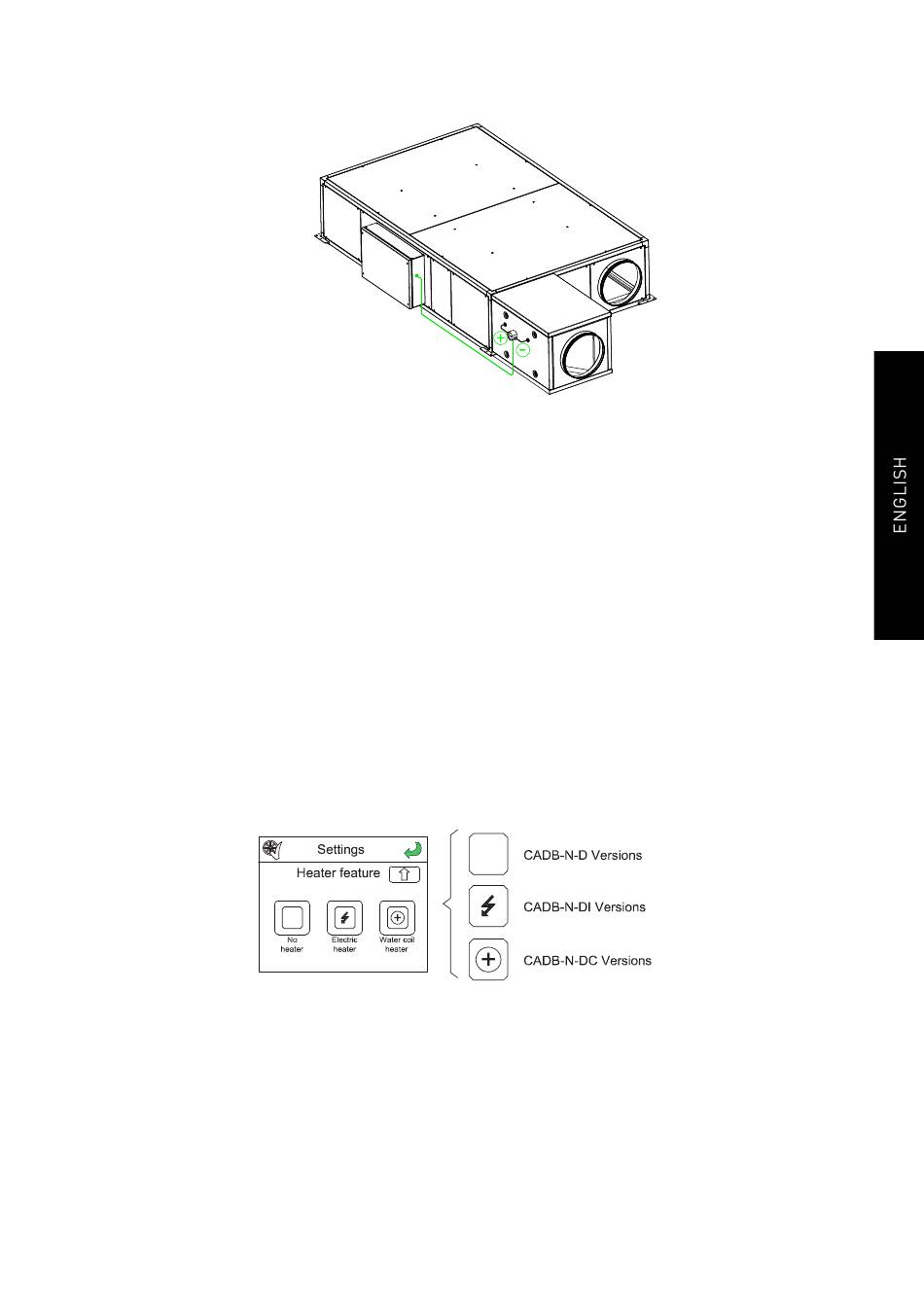

Install the pressure switch, respecting the position of the (+) and (-) pressure connectors, ac-
cording to the indications in the following image:
Connector + : Filtered air
Connector - : Non fi ltered air
Adjust pressure setpoint according to the particularities of each installation (dust concentra-
tion in the external ambient, as well as fi lter replacement frequency). The adjustment is done
by rotating the dial on the front of the pressure switch.
Once installed, rewire the pressure switch DPS to the electric cabinet, according to the indica-
tions in the electric diagrams annex.

16.3. CONTROL RECONFIGURATION

Once the required rewire was done, it will be necessary to reconfi gure the PRO-REG controller from
the Advance Parameters menu.
IMPORTANT:
Coil control reconfi gurations made from the Advance Parameters, will be immediately erased at the
moment that from the Settings – Heater feature screen, a different coil confi guration is choosen:
Coil module reconfi guration did not appear at Settings – Heater feature screen.
Tomas presostato
47
