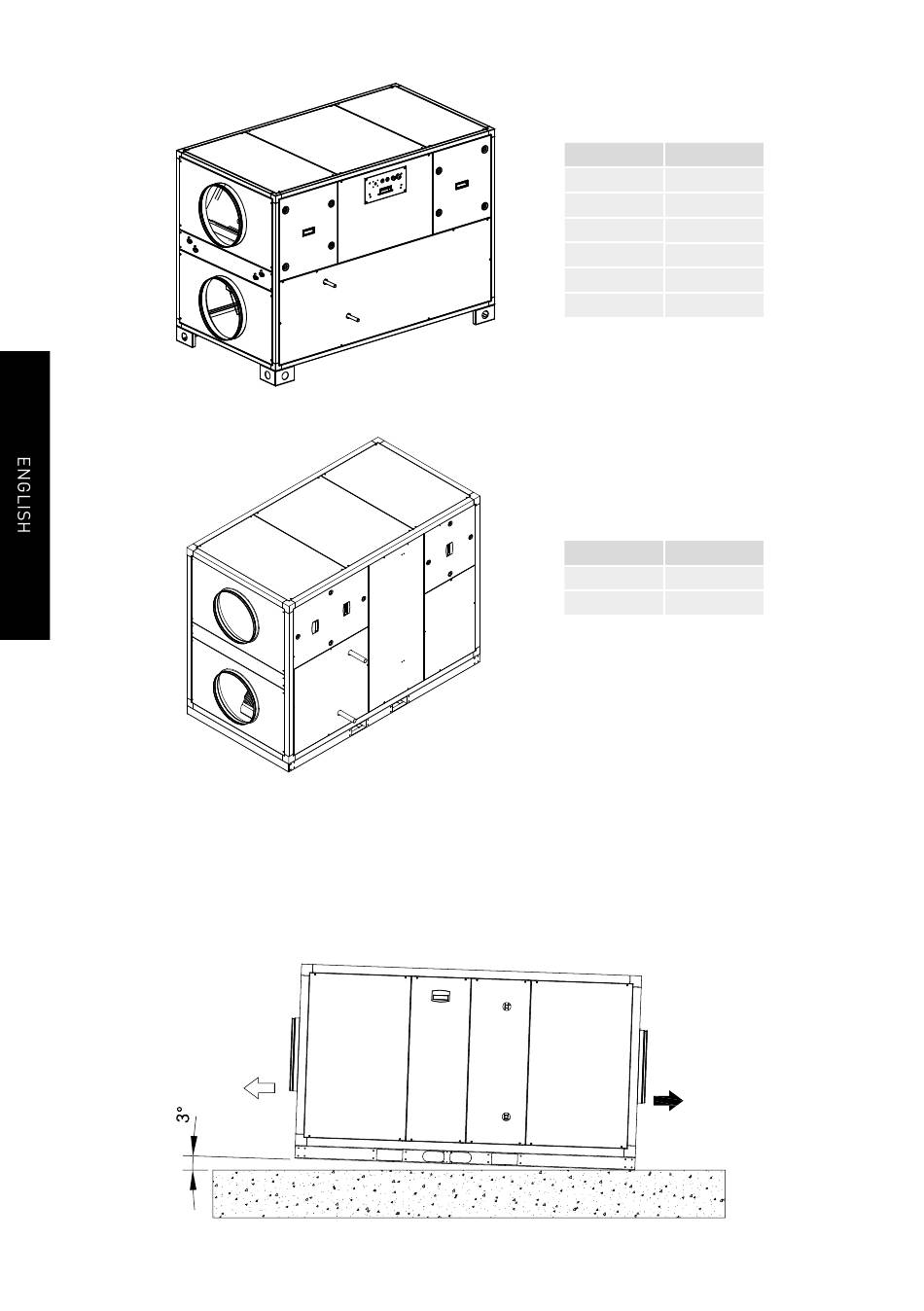

S&P CADB/T-HE PRO-REG Series Instruction Manual page 8

Models 04 to 33
Models 40 and 54
Horizontal models of sizes 40 and 54
IMPORTANT!
Particularities in the installation of horizontal versions LH and RH
For a correct evacuation of condensation generated into the heat exchanger, it is necessary to install
the unit with a minimum slope of 3º to the side where the extraction fan is placed:
SUPPLY FAN
Model
4
8
12
16
21
33
Model
40
54
8
Weight (kg)
149
185
192
237
335
422
Weight (kg)
597
730
EXTRACT FAN
