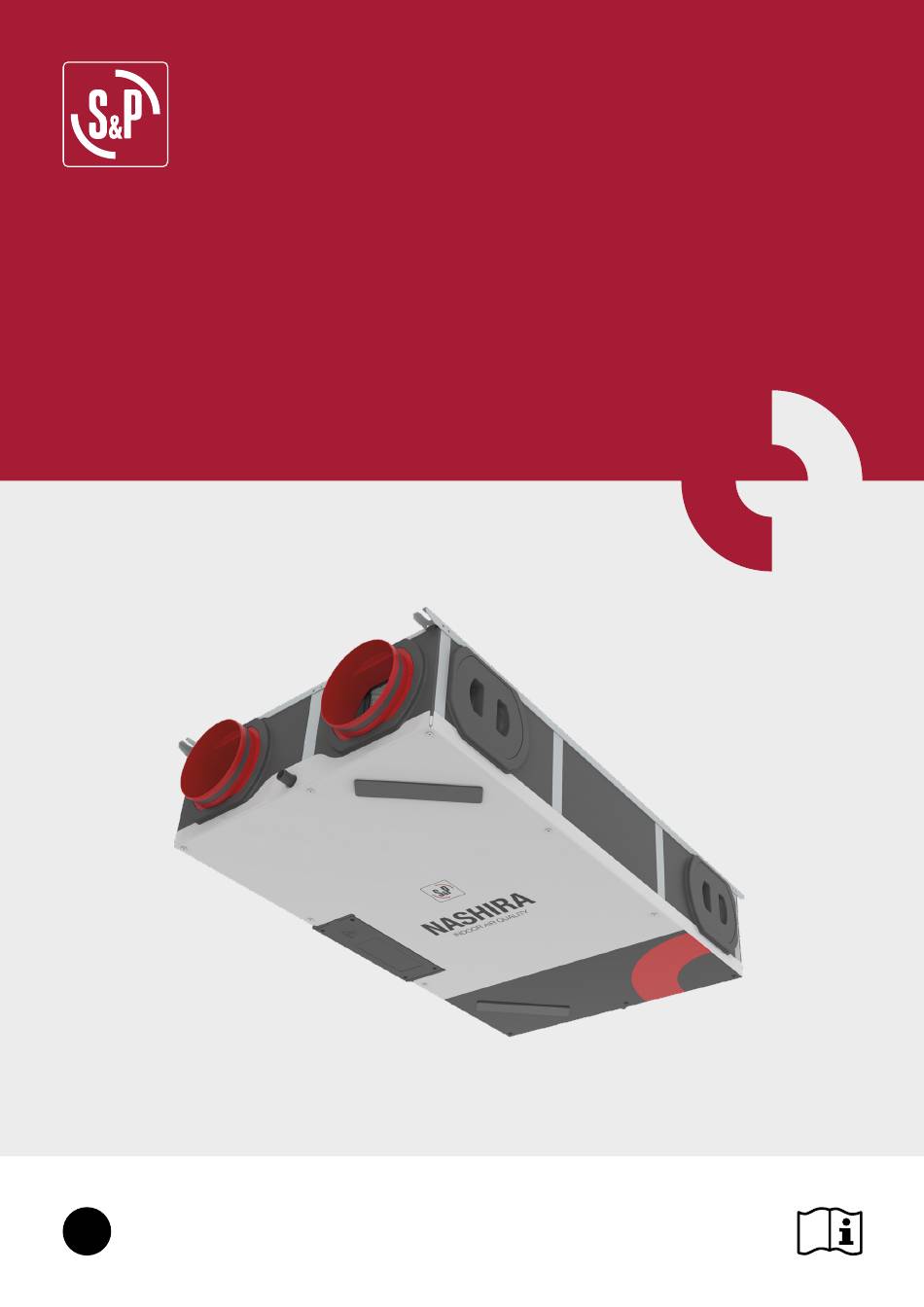

  • Page 1 NASHIRA User manual...

  • Page 3: Intended Use

    FOREWORD Carefully read this document before using the product. With this document, you will be able to operate and carry out basic maintenance on the NASHIRA heat recovery unit in a safe and optimal way. In this document, the NASHIRA equipment will be referred to as “the unit”. The unit is subject to continuous improvement, therefore the unit may be slightly different from the descriptions given.
  • Page 4 1. INTRODUCTION Congratulations for purchasing a NASHIRA ventilation system, the most efficient compact system on the market. The unit consists of a centralised heat recovery unit that ensures efficient air renewal. What is a heat recovery unit? A heat recovery unit extracts contaminated air from a building at the same time as introducing filtered air from outside. Thanks to this air renewal and filtration, a healthy environment is achieved inside the dwelling.

  • Page 5: General Description Of The Unit

    1.1. GENERAL DESCRIPTION OF THE UNIT Description of the unit – View from below Extraction filter Supply filter Electronics box Table 1 Description of the unit 1.2. MODEL IDENTIFICATION Information on the model is on the main plate. Main plate Illustration 3.

  • Page 6: Unit Control

    Parameter Description Meaning Range NASHIRA Name of the range. Maximum flow rate of 150 m³/h @ 300 Pa Size Maximum flow rate of 200 m³/h @ 300 Pa ( - ) Sensible heat exchanger Type Enthalpy exchanger Table 2 Product descriptions 2.

  • Page 7: Optional Accessories

    SPEED LEVELS Low speed Medium speed High speed Automatic mode Table 4 NASHIRA speed levels 3. OPTIONAL ACCESSORIES Image Reference Description Radio frequency kit. Ideal for wireless NASHIRA-RF-KIT installations. Includes a new remote control. WiFi communication module. Controls the SPCM Lite ventilation unit via Internet, from any part of the world.

  • Page 8: Alarm List

    4. ALARM LIST If there is any type of alarm in the unit, button (A) on the remote control will flash red: Illustration 5. Alarm signal on NASHIRA controller Each alarm is indicated with a different flashing code: Type of alarm Number of flashes Action Motor 1 error...

  • Page 9: Basic Maintenance

    5. BASIC MAINTENANCE Major maintenance and repair work (such as cleaning the heat exchanger or repairing a fan) must be carried out by qualified personnel. Nevertheless, other basic maintenance operations can be carried out by the end user as described in this section.
  • Page 10 5.1.5. Place the dirty filters in the plastic bag. The filters contain dust and fine particles among other contaminants. Do not shake the filters and carefully place them in the plastic bag to prevent the transmission of contaminants to the environment. Seal the bag and throw it in the general waste container. 5.1.6.

  • Page 11: Cleaning The Remote Control

    5.3. CLEANING THE REMOTE CONTROL It is recommended to clean the remote control at least twice a year. For this, a damp cloth with neutral soap can be used. Do not use excess water. The remote control is an electronic component that can be damaged if not cleaned carefully.
  • Page 12 S&P SISTEMAS DE VENTILACIÓN, S.L.U. C. Llevant, 4 Polígono Industrial Llevant 08150 Parets del Vallès Barcelona - Spain Tel. +34 93 571 93 00 www.solerpalau.com Ref. 9023130600...
