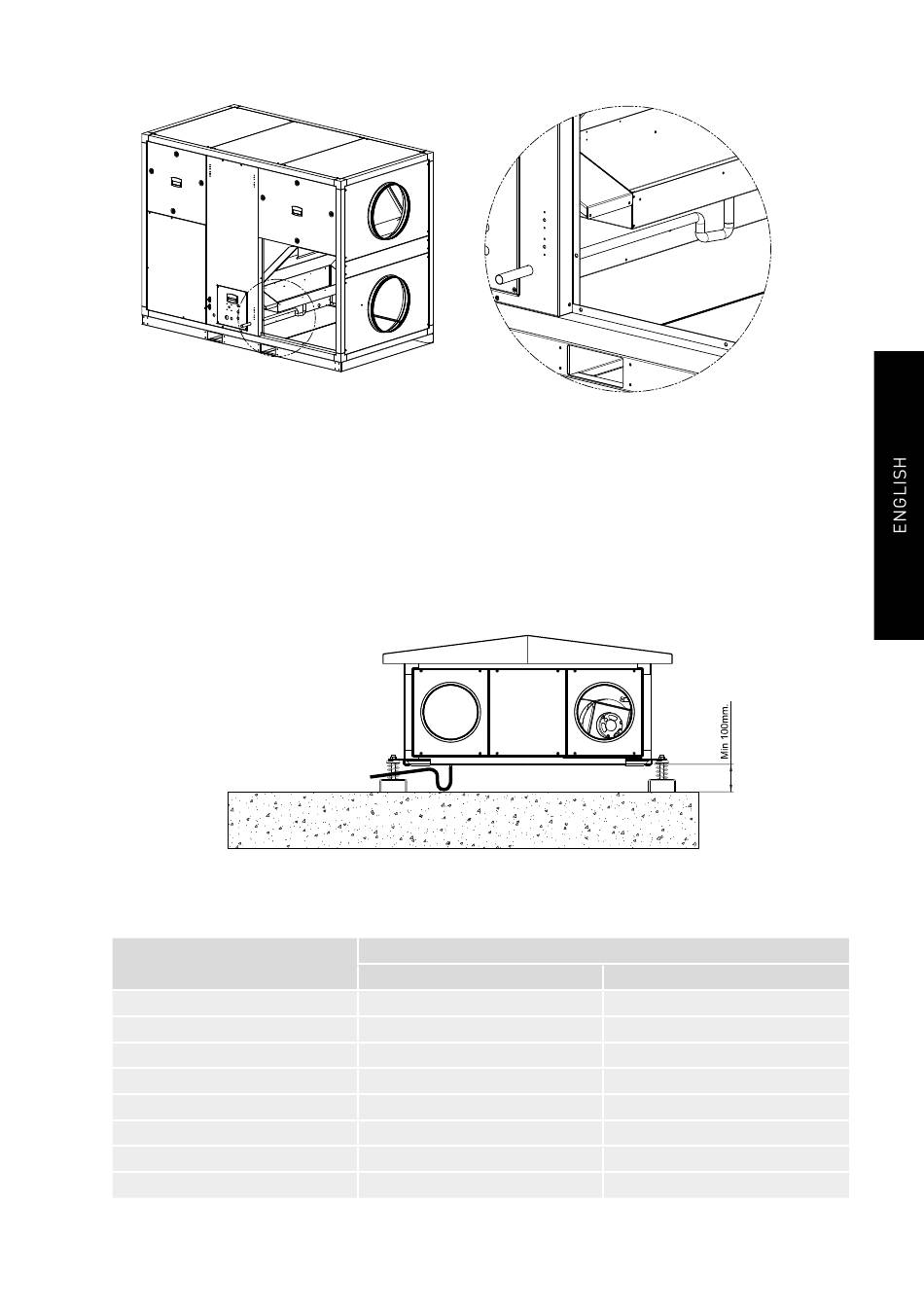

d) Vertical versions of CADB/T HE 40 to 54
In these versions, the drainpipe and the siphon are supplied mounted in the unit.
6.1.1. Outdoor installation
The CADB/T-HE PRO-REG range is designed to be mounted indoors. When it is installed
outdoors, it is necessary to place the equipment under a cover which offers enough protection
to prevent rain falling directly to the unit, or install the corresponding roof mounting.
In horizontal version, models 04 to 33, ensure the suffi cient space below the unit, to install a
siphons in the drain pipe.
Rain protection canopy available, according to the heat recovery unit model:
Heat recovery unit model
CADB-HE D/DI/DC 04
CADB-HE D/DI/DC 08
CADB-HE D/DI/DC 12
CADB-HE D/DI/DC 16
CADB/T-HE D/DI/DC 21
CADT-HE D/DI/DC 33
CADB/T-HE D/DI/DC 40
CADB/T-HE D/DI/DC 54
Drain pipe connexion
Horizontal (LH / RH)
Rain protection cowl model
TPP-HE-H 04
TPP-HE-H 08
TPP-HE-H 12
TPP-HE-H 16
TPP-HE-H 21/33
TPP-HE-H 21/33
TPP-HE-H 40
TPP-HE-H 54
11
Vertical (LV / RV)
TPP-HE-V 04
TPP-HE-V 08
TPP-HE-V 12
TPP-HE-V 16
TPP-HE-V 21
TPP-HE-V 33
TPP-HE-V 40
TPP-HE-V 54
