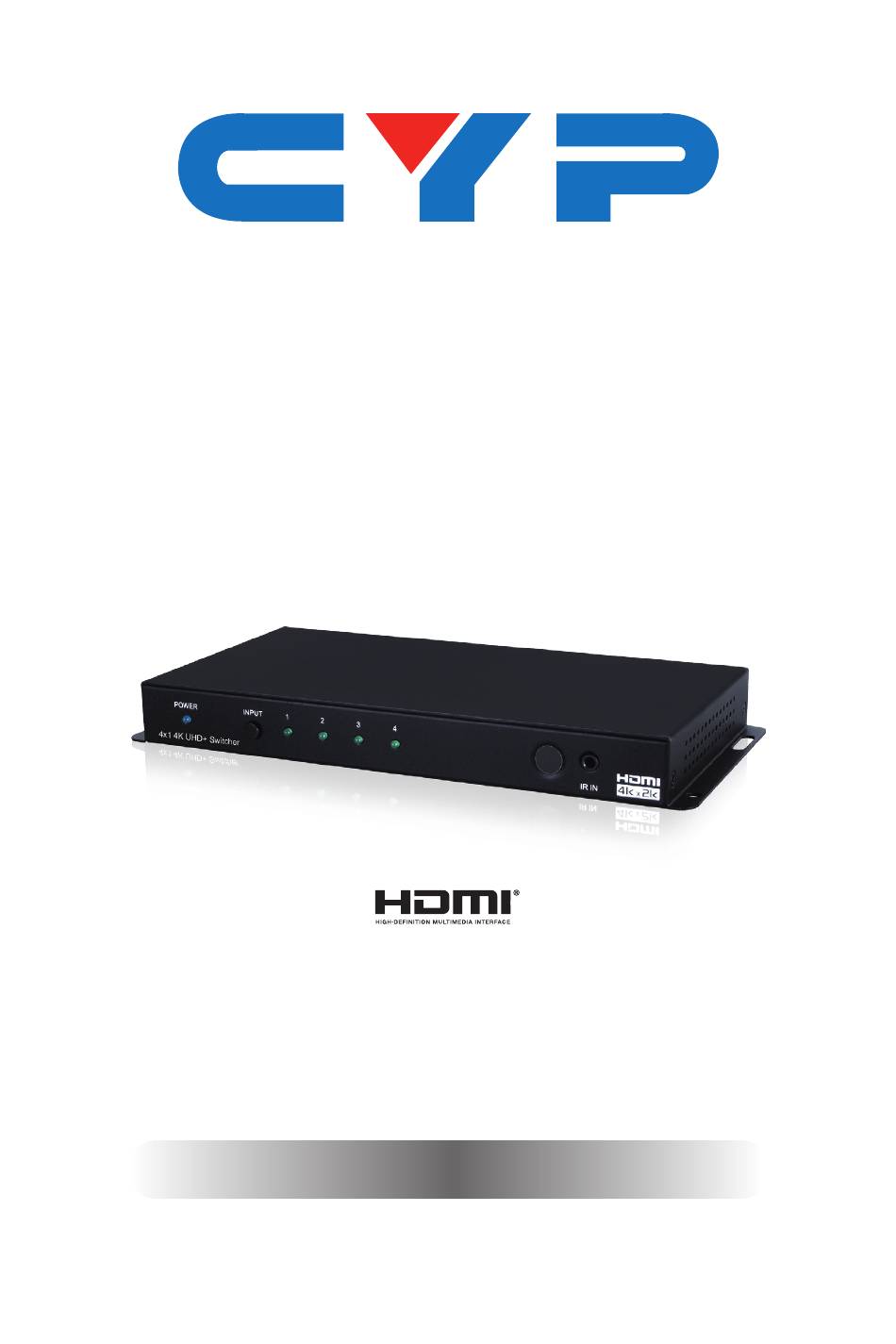

- Page 1 CPLUS-V4H1H 4K UHD 4×1 HDMI Switcher Operation Manual Operation Manual...
- Page 3 DISCLAIMERS The information in this manual has been carefully checked and is believed to be accurate. Cypress Technology assumes no responsibility for any infringements of patents or other rights of third parties which may result from its use. Cypress Technology assumes no responsibility for any inaccuracies that may be contained in this document.
- Page 4 SAFETY PRECAUTIONS Please read all instructions before attempting to unpack, install or operate this equipment and before connecting the power supply. Please keep the following in mind as you unpack and install this equipment: • Always follow basic safety precautions to reduce the risk of fire, electrical shock and injury to persons.
-
Page 5: Table Of Contents
CONTENTS 1. Introduction ............1 2. Applications .............1 3. Package Contents ..........1 4. System Requirements ........1 5. Features ............2 6. Operation Controls and Functions ....2 6.1 Front Panel ..........2 6.2 Rear Panel ..........3 6.3 Remote Control [Optional] ...... 3 6.4 IR Cable Pinouts [Optional] ..... -
Page 6: Introduction

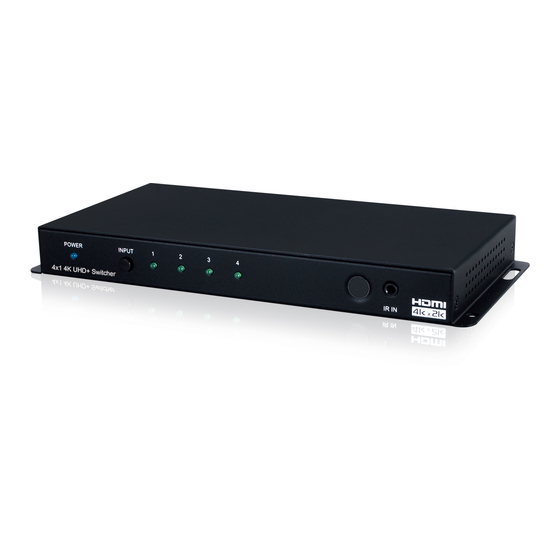

1. INTRODUCTION This 4 by 1 HDMI Switcher is a brand new high performance design for the next generation of audio/video equipment. It allows a single HDMI output to switch between 4 HDMI sources. This unit comes with full support for 18Gbps (600Mhz) resolutions up to, and including 4K@60Hz (4:4:4, 8-bit) as well as support for 16-bit Deep Color up to 1080p60Hz, HDR (High Dynamic Range), HD audio and other features defined by the HDMI 2.0a specification. -
Page 7: Features
5. FEATURES • HDMI 2.0a and DVI 1.0 compliant • HDCP 1.x and 2.2 compliant • 4 HDMI inputs and 1 HDMI output • Supports UHD resolutions up to 3840×2160@60Hz (4:4:4, 8-bit) & 4096×2160@60Hz (4:4:4, 8-bit) • Supports 16-bit Deep Color up to 1080p@60Hz •... -
Page 8: Rear Panel
6.2 Rear Panel RS-232 OUTPUT INPUT 4 INPUT 3 INPUT 2 INPUT 1 SERVICE DC 5V OUTPUT: Connect to HDMI TVs, monitors or amplifiers for digital video and audio output. INPUT 1~4: Connect to HDMI source equipment such as media players, game consoles or set-top boxes. -
Page 9: Rs-232 Control
6.5 RS-232 Control UNIT TERMINAL SERIAL PORT SETTINGS Pinout Pinout Baud Rate 115200 Data Bits Parity Bits None Stop Bits Flow Control None 6.6 RS-232 Commands Command Description and Parameters Show the full command list. HELP Show the full command list. OUT N1 Select the input to display. - Page 10 Command Description and Parameters HDCPIN ? Show the current HDCP status. EDIDMODE N1 Set the EDID Mode. Available values for N1: [All] [Appoint] EDIDMODE ? Show the current EDID mode. EDIDALL N1 Set the EDID to use in “EDID All” mode. Available values for N1: [FHD/2CH] [FHD/MCH]...
- Page 11 Command Description and Parameters ECHO N1 Enable or disable the console’s text echo mode. Available values for N1: [Off] [On] ECHO ? Show the current state of the console’s text echo mode. INNAME N1 N2 Set the name for Input N1. N1 = 1~4 [Input number] N2 = {name} [16 chars max]...
-
Page 12: Connection Diagram
7. CONNECTION DIAGRAM Blu-ray Player Set-top Box Game Console Satellite Receiver HDMI Inputs RS-232 OUTPUT INPUT 4 INPUT 3 INPUT 2 INPUT 1 SERVICE DC 5V Power Supply HDMI Output RS-232 Serial Equipped Computer UHDTV... -
Page 13: Specifications
8. SPECIFICATIONS 8.1 Technical Specifications HDMI Bandwidth 600MHz/18Gbps Input Ports 4×HDMI Output Port 1×HDMI Control Interfaces 1×IR Extender (3.5mm) 1×RS-232 (9-pin D-sub) HDMI Cable Length 15m (1080p@60Hz, 8-bit) 10m (1080p@60Hz, 12-bit) 5m (4K@60Hz, 4:2:0, 8-bit) 3m (4K@60Hz, 4:4:4, 8-bit) IR Frequency 30 - 50kHz (30 - 60kHz under ideal conditions) Power Supply... -
Page 14: Video Specifications
8.2 Video Specifications Supported PC Resolutions (Hz) Input Output 640×480 60, 72, 75, 85 800×600 56, 60, 72, 75, 85 1024×768 60, 70, 75, 85 1280×768 60, 70, 75, 85 1280×800 ... -
Page 15: Acronyms
9. ACRONYMS ACRONYM COMPLETE TERM Alternating Current Consumer Electronics Control Direct Current Digital Visual Interface EDID Extended Display Identification Data Full HD High-Definition HDCP High-bandwidth Digital Content Protection HDMI High-Definition Multimedia Interface High Dynamic Range Infrared LCPM Linear Pulse-Code Modulation Light-Emitting Diode On-Screen Display Ultra HD... - Page 16 CYPRESS TECHNOLOGY CO., LTD. www.cypress.com.tw...
