CYP nT14AX15 Operation Manual

Uhd+ multi-format hdmi switcher with amplifier

Advertisement

Quick Links

nT
SOLUTIONS FOR GROWTH
n - TECH SOLUTIONS
nT14AX15 | CPLUS-V2030
+
UHD
Multi-Format HDMI Switcher with Amplifier
Operation Manual
Operation Manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the nT14AX15 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for CYP nT14AX15

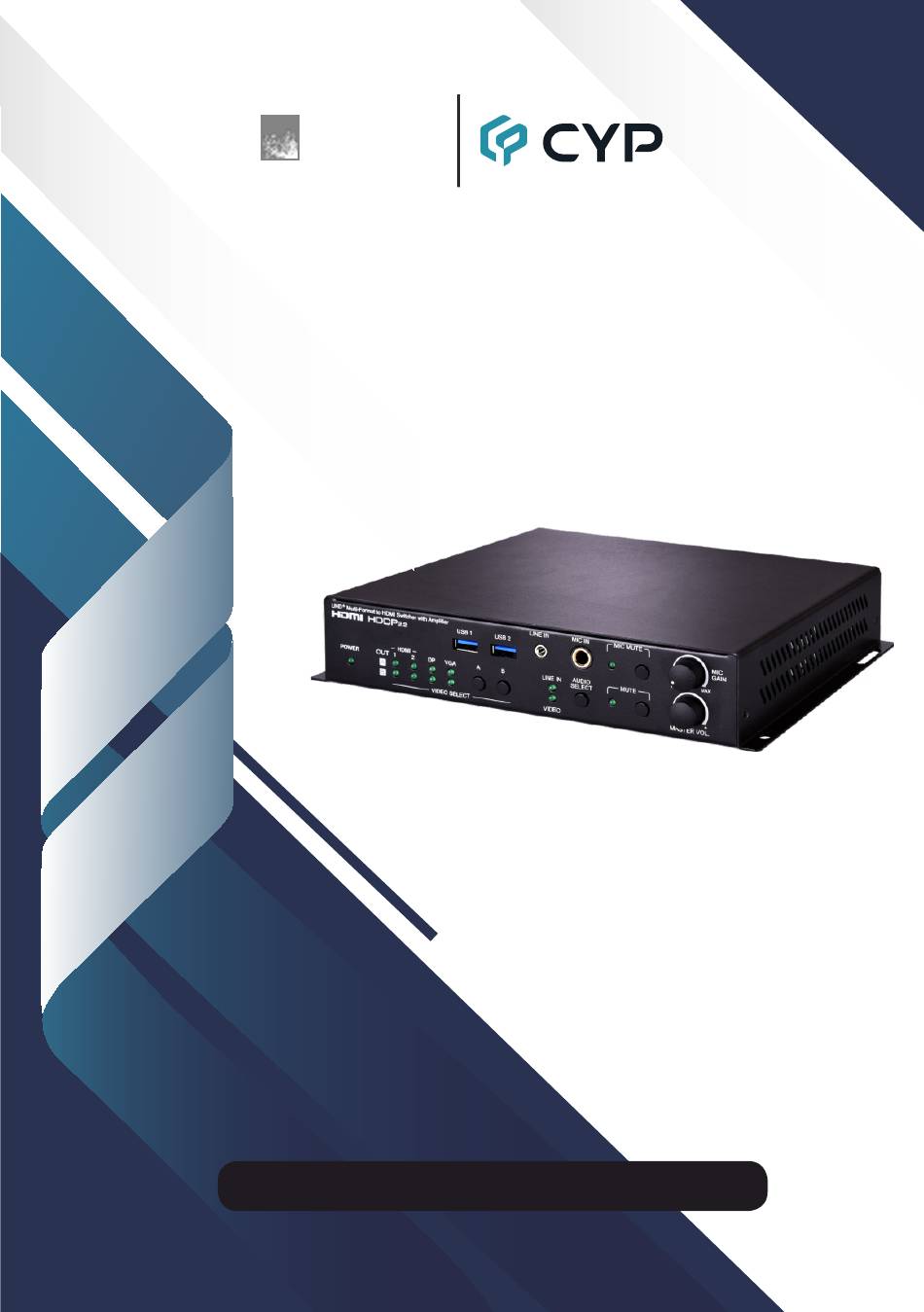

  • Page 1 SOLUTIONS FOR GROWTH n - TECH SOLUTIONS nT14AX15 | CPLUS-V2030 Multi-Format HDMI Switcher with Amplifier Operation Manual Operation Manual...
  • Page 2 ® registered trademarks of HDMI licensing Administrator, Inc.
  • Page 3: Copyright Notice

    DISCLAIMERS The information in this manual has been carefully checked and is believed to be accurate. Cypress Technology assumes no responsibility for any infringements of patents or other rights of third parties which may result from its use. Cypress Technology assumes no responsibility for any inaccuracies that may be contained in this document.
  • Page 4: Safety Precautions

    SAFETY PRECAUTIONS Please read all instructions before attempting to unpack, install or operate this equipment and before connecting the power supply. Please keep the following in mind as you unpack and install this equipment: • Always follow basic safety precautions to reduce the risk of fire, electrical shock and injury to persons.
  • Page 5: Table Of Contents

    CONTENTS 1. Introduction ............1 2. Applications ............. 2 3. Package Contents ........... 2 4. System Requirements ........2 5. Features............3 6. Operation Controls and Functions ....4 6.1 Front Panel ..........4 6.2 Rear Panel........... 5 6.3 RS-232 Pinout and Defaults ......6 6.4 WebGUI Control ..........
  • Page 6: Introduction

    1. INTRODUCTION This 4 by 2 matrix switch with amplifier is designed for use in environments needing a wide range of flexibility when it comes to inputs, outputs, and control. The three most common video input interfaces (HDMI, DisplayPort, and VGA w/stereo audio) are included along with a pair of HDMI outputs, providing the ultimate in source compatibility and flexibility.
  • Page 7: Applications

    2. APPLICATIONS • Lecture room display and control • Showroom display and control • Meeting room presentation and control • Classroom display and control 3. PACKAGE CONTENTS • 1× UHD Multi-Format HDMI Switcher with Amplifier • 1× 24V/3.75A DC Power Adapter •...
  • Page 8: Features

    5. FEATURES • HDMI 2.0 and DVI 1.0 compliant • HDCP 1.x and 2.2 compliant • 4 video inputs (2×HDMI, 1×DisplayPort, 1×VGA w/ analog audio) • 2 matrixed HDMI outputs • HDMI and DisplayPort inputs support resolutions up to 4K@60Hz (4:4:4, 8-bit) •...
  • Page 9: Operation Controls And Functions

    6. OPERATION CONTROLS AND FUNCTIONS 6.1 Front Panel MIC GAIN UHD + Multi-Format to HDMI Switcher with Amplifier LINE IN MIC IN MIC MUTE USB 1 USB 2 HDMI AUDIO POWER LINE IN MUTE SELECT VIDEO SELECT VIDEO MASTER VOL. POWER LED: This LED will illuminate to indicate the unit is on and receiving power.
  • Page 10: Rear Panel

    LINE IN Port: Connect to the stereo analog output of a device such as an audio player or PC. MIC IN Port: Connect to a standard microphone using a 6.35mm plug. Note: If the microphone requires 48V phantom power, that setting must be activated within the WebGUI.
  • Page 11: Rs-232 Pinout And Defaults

    Note: Audio on this output is not controllable and is bypass only. RS-232 CONSOLE 3-pin Terminal Block: Connect directly to a PC, laptop, or other serial control device with a 3-pin adapter cable to send RS-232 commands to control the unit. DC 24V Port: Plug the 24V DC power adapter into this port and connect it to an AC wall outlet for power.
  • Page 12: Webgui Control

    6.4 WebGUI Control • Device Discovery Please obtain the “Device Discovery” software from your authorized dealer and save it in a directory where you can easily find it. Connect the unit and your PC/Laptop to the same active network and execute the “Device Discovery”...
  • Page 13 • WebGUI Overview After connecting to the WebGUI’s address in a web browser, the login screen will appear. Please enter the appropriate user name and password then click “Submit” to log in. Note: The default user name and password is “admin”. On the left side of the browser you will see the following menu tabs where all primary functions of the unit are controllable via the built in WebGUI.
  • Page 14: Video Select Tab

    6.4.1 Video Select Tab This tab provides A/V routing control, auto switch controls, I/O renaming options and preset controls. To begin assigning a new video route, please click an output button and then click on the button of the preferred input port. As you select each button they will change their color to orange.
  • Page 15 This unit can store up to four routing presets. Presets can be utilized to store multiple different routing states in advance for rapid, hassle-free, recall. 3) Preset Set: Once you have the routing set the way you like, you can click the “Preset Set”...
  • Page 16: Edid Tab

    6.4.2 EDID Tab This tab provides the option of six standard EDIDs, two sink sourced EDIDs and four customer uploaded User EDIDs that can be assigned to any or all of the HDMI/DisplayPort input ports. 1) Customer EDID Settings: Save Name: To modify the name of a User EDID, simply type the new name in the space provided and then click on the “Save Name”...
  • Page 17 2) Sink EDID Download: To save the EDID from a connected display to your local PC, select the sink from the dropdown list then press the “Download” button. Depending on your browser settings you will either be asked where to save the downloaded file, or the file will be transferred to the default download location on your PC.
  • Page 18: Hdcp Tab

    6.4.3 HDCP Tab This tab provides the option of three HDCP operational modes that can be assigned to any or all of the HDMI/DisplayPort input ports. 1) Set HDCP Input Mode/HDCP Mode: This section allows for the assignment of a specific HDCP behavior to any supported input port. Click on one or more input buttons on the left and then select the new HDCP mode to use from the choices on the right.
  • Page 19: Audio Select Tab

    6.4.4 Audio Select Tab This tab provides control over which audio is routed to Output A and the analog audio outputs as well as providing control over audio mixing, analog I/O volume and the microphone’s phantom power voltage. Note: HDMI output B’s audio is always a direct pass-through from the selected source and is not affected by the controls on this tab.
  • Page 20 Microphone: Allows the adjustment of the microphone input’s volume level. The available adjustment range is 0(-35dB) to 100(+60dB). Note: This control is greyed out and disabled when the toggle switch is set to “Panel”. Master Volume: Allows the adjustment of the currently selected audio source’s volume.
  • Page 21 Note: Only LPCM 2.0 audio is supported and bitstream audio will be automatically muted when the mixer is enabled. Talk Over Toggle: This switch enables or disables the unit’s talk over mode which allows finer control over how the microphone input is handled.
  • Page 22: Trigger Tab

    6.4.5 Trigger Tab This tab allows the user to define the action assigned to each Trigger pin. Trigger assignments may also be tested here. 1) Set Trigger Input: Click on the dropdown next to each trigger number to assign a unit function or behavior to that trigger. If the selected function indicates a progression, then each activation of the trigger will move sequentially to the next item in the progression list.
  • Page 23: System Tab

    6.4.6 System Tab This tab provides system information, network configuration options, system configuration resets, and a firmware update function. 1) System: Web User Setting: This section provides a way to change the username and password for the Administrator account. Click on “Save” to confirm and activate any changes made to these settings.
  • Page 24 Web Login Timeout: Select the length of time to wait before logging the user out of the WebGUI due to inactivity. Available range is from 1 to 65535 minutes. Setting this to 0 will disable the inactivity timeout. Firmware Upgrade: To update the unit’s firmware, click the “Choose File”...
  • Page 25: Telnet Control

    6.5 Telnet Control Before attempting to use Telnet control, please ensure that both the unit and the PC are connected to the same active networks. Start your preferred Telnet/Console client, or use the built in client provided by most modern computer operating systems. After starting the client, connect by using the current IP address of the unit and port 23 (if the communication port number used by the unit has not been changed previously).
  • Page 26 COMMAND Description and Parameters get command ver Show the unit’s current command version. get mac addr Show the unit’s MAC address. get model name Show the unit’s model name. get model type Show the unit’s product type index number. set factory default Reset the unit to the factory defaults.
  • Page 27 COMMAND Description and Parameters set keylock N1 Enable or disable the front panel key lock. Available values for N1: [Front panel locked] [Front panel unlocked] get keylock Show the current front panel lock state. set ip mode N1 Set the IP address assignment mode. Available values for N1: STATIC [Static IP mode]...
  • Page 28 COMMAND Description and Parameters set static netmask N1 Set the unit’s static netmask. N1 = X.X.X.X [X = 0~255] get static netmask Show the unit’s current static netmask. set static gateway N1 Set the unit’s static gateway address. N1 = X.X.X.X [X = 0~255] get static gateway Show the unit’s current static gateway address.
  • Page 29 COMMAND Description and Parameters get webgui login timeout Show the current WebGUI inactivity timeout value. set in N1 name N2 Set the name of the specified input. Available values for N1: [HDMI Input 1] [HDMI input 2] [DisplayPort input] [VGA input] N2 = {Name} [16 characters max] get in N1 name...
  • Page 30 COMMAND Description and Parameters set out N1 route N2 Route the specified input to the specified output. Available values for N1: [HDMI Input 1] [HDMI input 2] [DisplayPort input] [VGA input] Available values for N2: [HDMI output A] [HDMI output B] get out N1 route Show the current input routed to the specified output.
  • Page 31 COMMAND Description and Parameters get out auto mode Show the current auto switching/scanning mode of the unit. get in N1 sync status Show the current sync state of the specified input. Available values for N1: [HDMI Input 1] [HDMI input 2] [DisplayPort input] [VGA input] Possible response values:...
  • Page 32 COMMAND Description and Parameters get out N1 refresh rate Show the refresh rate of the specified output’s signal. Available values for N1: [HDMI output A] [HDMI output B] get out N1 interlace Show the interlace state of the specified output’s signal. Available values for N1: [HDMI output A] [HDMI output B]...
  • Page 33 COMMAND Description and Parameters set out route AN1,BN1 Set unique input routing for both outputs simultaneously. Available values for N1: [HDMI Input 1] [HDMI input 2] [DisplayPort input] [VGA input] set all out route N1 Route the specified input to all outputs. Available values for N1: [HDMI Input 1] [HDMI input 2]...
  • Page 34 COMMAND Description and Parameters get route preset N1 name Show the current name of the specified preset. N1 = 1~4 [Preset number] set audio out A mute N1 Enable or disable muting all audio output. Available values for N1: [Mute] [Unmute] get audio out A mute Show the current mute state of all audio output.
  • Page 35 COMMAND Description and Parameters get audio in N1 pre-gain Show the current pre-gain volume level for the specified audio input. Available values for N1: [Current video’s audio] [Front panel line in] get audio in type list List all available audio input sources. get audio out type list List all available audio output destinations.
  • Page 36 COMMAND Description and Parameters get audio mixer out A source Show the unit’s currently selected primary audio source. set audio volume knob lock N1 Set the control location for the master volume and microphone gain controls. Available values for N1: [Front panel control] [WebGUI control] get audio volume knob lock...
  • Page 37 COMMAND Description and Parameters set audio out A talkover hold time N1 Set the audio mixer’s talkover hold time value. N1 = 0~200 [Time in 1/10 seconds] get audio out A talkover hold time Show the current audio mixer’s talkover hold time value. set audio out A talkover release time N1 Set the audio mixer’s talkover release time value.
  • Page 38 COMMAND Description and Parameters set in N1 edid N2 Set the EDID to use on the specified input. Available values for N1: [HDMI Input 1] [HDMI input 2] [DisplayPort input] Available values for N2: [FHD 2CH] [FHD MCH] [UHD 2CH] [UHD MCH] [UHD+ 2CH] [UHD+ MCH]...
  • Page 39 COMMAND Description and Parameters set edid N1 name N2 Set the name for the specified EDID. Available values for N1: [User 1] [User 2] [User 3] [User 4] N2 = {Name} [32 characters max] Note: Only User EDIDs may be renamed. get edid N1 name Show the name for the specified EDID.
  • Page 40 COMMAND Description and Parameters get sink N1 edid data Show the EDID from the display connected to the specified output as hex data. Available values for N1: [HDMI output A] [HDMI output B] get in N1 edid data Show the EDID currently used by the specified input as hex data. Available values for N1: [HDMI Input 1] [HDMI input 2]...
  • Page 41 COMMAND Description and Parameters set all in edid N1 Set the EDID to use when the “All” EDID mode is active. Available values for N1: [FHD 2CH] [FHD MCH] [UHD 2CH] [UHD MCH] [UHD+ 2CH] [UHD+ MCH] [User 1] [User 2] [User 3] [User 4] [Sink A]...
  • Page 42 COMMAND Description and Parameters get in N1 hdcp mode Show the current HDCP behavior used by the specified input. Available values for N1: [HDMI Input 1] [HDMI input 2] [DisplayPort input] get in N1 hdcp status Show the current HDCP status of the specified input. Available values for N1: [HDMI Input 1] [HDMI input 2]...
  • Page 43 COMMAND Description and Parameters get out N1 hdcp ability Show the HDCP compliance level of the display device connected to the specified output. Available values for N1: [HDMI output A] [HDMI output B] Possible response values: [No HDCP support] [HDCP 1.x only] [HDCP 2.2 only] [HDCP 1.x+2.2] get in N1 hdcp ability...
  • Page 44 COMMAND Description and Parameters get out N1 cec capability Show if the display connected to the specified output supports CEC. Available values for N1: [HDMI output A] [HDMI output B] Possible response values: [Supported] [Unsupported] Note: Commands will not be executed unless followed by a carriage return. Commands are not case-sensitive.
  • Page 45: Connection Diagram

    7. CONNECTION DIAGRAM Powered Speakers Router Trigger Control Keypad Keyboad & Mouse Macro Macro Macro Macro Macro Macro Trigger Macro Macro Input Stereo Output Speaker Amplified Stereo Output SERVICE TRIGGER IN AUDIO OUT AMPLIFIER OUT DP IN TXRX Power Supply HDMI 1 IN HDMI 2 IN VGA IN...
  • Page 46: Specifications

    8. SPECIFICATIONS 8.1 Technical Specifications HDMI Bandwidth 18Gbps DisplayPort Bandwidth 21.6Gbps VGA Bandwidth 165MHz Input Ports 2×HDMI (Type-A) 1×DisplayPort 1×VGA (HD-15) 2×Analog Stereo (3.5mm) 1×Microphone (6.35mm) Output Ports 2×HDMI (Type-A) 1×Stereo Audio (2×RCA) 1×Stereo Audio (2×2-pin Terminal Block) Pass-through Ports 2×USB 3.0 (Type-A) 1×USB 3.0 (Type-B) Control Ports...
  • Page 47: Video Specifications

    8.2 Video Specifications Input Output Supported Resolutions (Hz) HDMI HDMI 720×400p@70/85 640×480p@60/72/75/85 720×480i@60 720×480p@60 720×576i@50 720×576p@50 800×600p@56/60/72/75/85 848×480p@60 1024×768p@60/70/75/85 1152×864p@75 1280×720p@50/60 1280×768p@60/75/85 1280×800p@60/75/85 1280×960p@60/85 1280×1024p@60/75/85 1360×768p@60 1366×768p@60 1400×1050p@60 1440×900p@60/75 1600×900p@60RB 1600×1200p@60 1680×1050p@60 1920×1080i@50/60 1920×1080p@24/25/30 1920×1080p@50/60 1920×1200p@60RB...
  • Page 48 Input Output Supported Resolutions (Hz) HDMI HDMI 2560×1440p@60RB 2560×1600p@60RB 2048×1080p@24/25/30 2048×1080p@50/60 3840×2160p@24/25/30 3840×2160p@50/60 (4:2:0) 3840×2160p@24, HDR10 3840×2160p@50/60 (4:2:0),HDR10 3840×2160p@50/60 4096×2160p@24/25/30 4096×2160p@50/60 (4:2:0) 4096×2160p@24, HDR10 4096×2160p@50/60 (4:2:0),HDR10 4096×2160p@50/60...
  • Page 49: Audio Specifications

    8.3 Audio Specifications 8.3.1 Digital Audio HDMI Input / Output LPCM Max Channels 8 Channels Sampling Rate (kHz) 32, 44.1, 48, 88.2, 96, 176.4, 192 Bitstream Supported Formats Standard & High-Definition DisplayPort Input LPCM Max Channels 8 Channels Sampling Rate (kHz) 32, 44.1, 48, 88.2, 96, 176.4, 192 Bitstream Supported Formats...
  • Page 50: Analog Audio

    8.3.2 Analog Audio Analog Input (Stereo 3.5mm) Max Audio Level 2Vrms Impedance 28kΩ Type Unbalanced Analog Input (Microphone 6.35mm) Max Audio Level 2Vrms Impedance 28kΩ Type Balanced Analog Output (RCA Pair) Max Audio Level 2Vrms THD+N < −92dB@0dBFS 1kHz (A-wt) >...
  • Page 51: Cable Specifications

    8.4 Cable Specifications 1080p 4K30 4K60 (4:4:4) (4:4:4) Cable Length 8-bit 12-bit 8-bit 8-bit High Speed HDMI Cable HDMI Input HDMI Output DisplayPort Cable DisplayPort Input VGA Cable VGA Input Bandwidth Category Examples: • 1080p (FHD Video) - Up to 1080p@60Hz, 12-bit color - Data rates lower than 5.3Gbps or below 225MHz TMDS clock •...
  • Page 52: Acronyms

    9. ACRONYMS ACRONYM COMPLETE TERM Analog-to-Digital Converter ASCII American Standard Code for Information Interchange Cat.5e Enhanced Category 5 cable Cat.6 Category 6 cable Cat.6A Augmented Category 6 cable Cat.7 Category 7 cable Consumer Electronics Control Command-Line Interface Digital-to-Analog Converter Decibel DHCP Dynamic Host Configuration Protocol DisplayPort...
  • Page 53 ACRONYM COMPLETE TERM Transmission Control Protocol THD+N Total Harmonic Distortion plus Noise 4K UHD 4K Ultra-High-Definition (10.2Gbps max) 4K UHD 4K Ultra-High-Definition (18Gbps max) UHDTV Ultra-High-Definition Television Universal Serial Bus Video Graphics Array WUXGA (RB) Widescreen Ultra Extended Graphics Array (Reduced Blanking) Extended Graphics Array Ω...
  • Page 56 CYPRESS TECHNOLOGY CO., LTD. www.cypress.com.tw...
