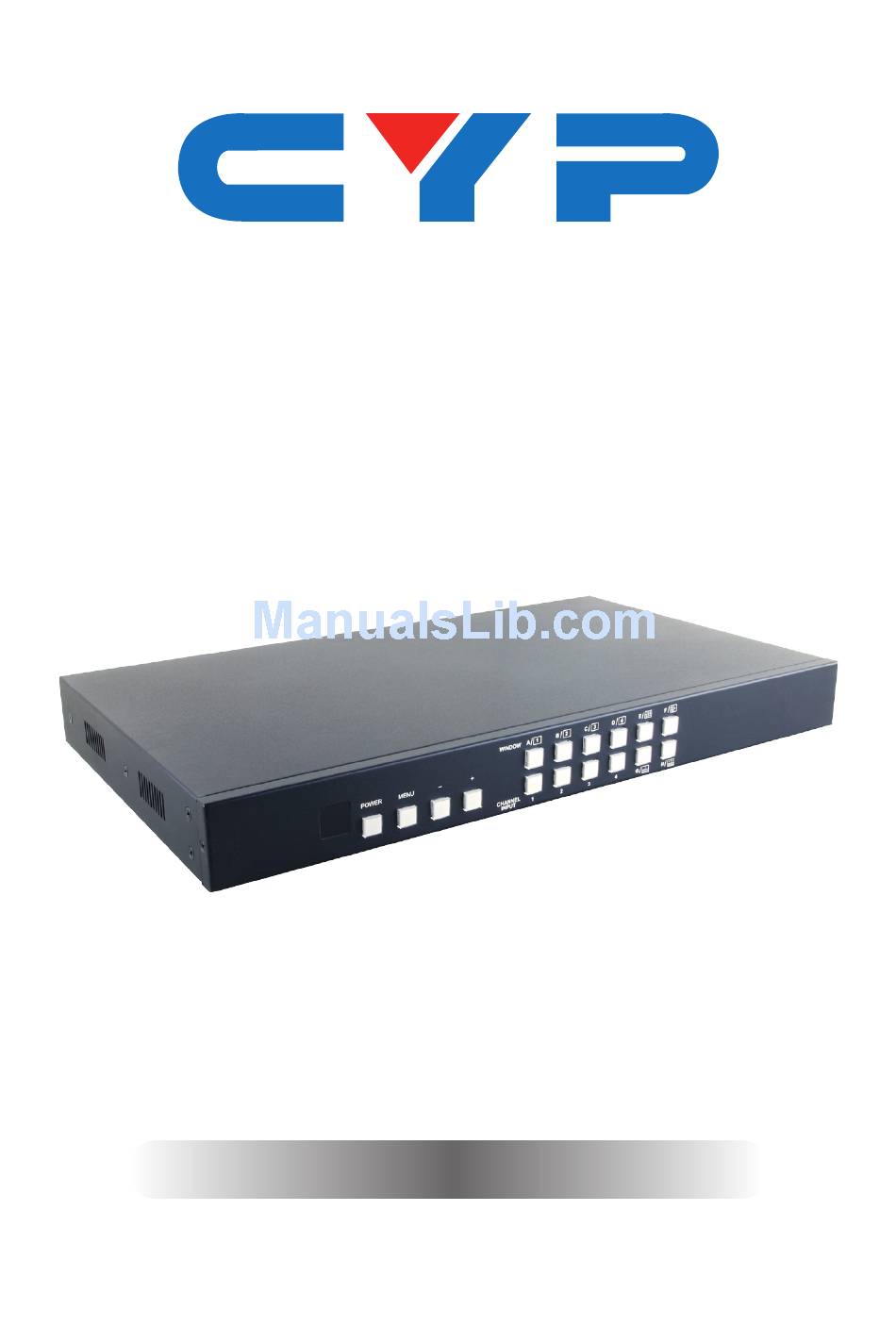

CDPS-41SQN
4×1 HDMI Switcher
with PiP/PoP & Multi-Window Display
Operation Manual
Operation Manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the CDPS-41SQN and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for CYP CDPS-41SQN

Summary of Contents for CYP CDPS-41SQN

  • Page 1 CDPS-41SQN 4×1 HDMI Switcher with PiP/PoP & Multi-Window Display Operation Manual Operation Manual...

  • Page 3: Copyright Notice

    DISCLAIMERS The information in this manual has been carefully checked and is believed to be accurate. Cypress Technology assumes no responsibility for any infringements of patents or other rights of third parties which may result from its use. Cypress Technology assumes no responsibility for any inaccuracies that may be contained in this document.

  • Page 4: Revision History

    SAFETY PRECAUTIONS Please read all instructions before attempting to unpack, install or operate this equipment and before connecting the power supply. Please keep the following in mind as you unpack and install this equipment: • Always follow basic safety precautions to reduce the risk of fire, electrical shock and injury to persons.

  • Page 5: Table Of Contents

    CONTENTS 1. Introduction ............1 2. Applications .............1 3. Package Contents ..........1 4. System Requirements ........1 5. Features ............2 6. Operation Controls and Functions ....2 6.1 Front Panel ..........2 6.2 Rear Panel ..........3 6.3 Remote Control ......... 4 6.4 OSD Menu ..........5 6.5 RS-232 Protocol ........

  • Page 6: Introduction

    1. INTRODUCTION This HDMI Switcher is a high performance, low latency, multi- windowing system that can be easily configured for a variety of professional video processing tasks. Up to 4 different input sources may be freely selected and arranged and output to a single display. When switched into single window mode the unit can be a seamless switcher with cross-fade support, or two sources can be combined with the use of chroma keying.

  • Page 7: Features

    5. FEATURES • Seamless switching between sources and windows • Supports PiP, PoP, and multi-window display • Easy individual window size and position and layer priority adjustment • Enlarge or shrink up to 4 input windows • Crossfade, chroma key, mirror, and rotation (90˚ left/right and 180˚) functions •...

  • Page 8: Rear Panel

    (1~4). It is possible for a single input to be displayed in multiple windows simultaneously. WINDOW A~H: Press buttons A~D will put the unit into full screen single window mode and display the associated channel’s currently selected source (1~4). Switching between windows A~D is seamless, and if the “Fade”...

  • Page 9: Remote Control

    USB cable. The unit should appear as an empty USB drive on your PC named “USB UPDATE”. Drag or copy the logo file into the new “USB UPDATE” drive on your PC and the upload will automatically proceed. All Window and Channel buttons will be illuminated while the upload is in process.

  • Page 10: Osd Menu

    Chroma Key*: Press to toggle the Chroma Key function on/off. Note: Channel 1 is always the background and channel 2 is always the keyed foreground image. Mirror*: Press to display current channel mirrored (left/right). Rotation*: Press to rotate the image 90˚ left, 90˚ right or 180˚. Note: For functions with asterisks (*) only work on Windows A~D.
  • Page 11 LEVEL 1 LEVEL 2 LEVEL 3 LEVEL 4 Window A I/O Setup Output (cont.) Windows Window B Window C Window D Window E Window F Window G Window H Output Win Fav 1 Windows Win Fav 2 Win Fav 3 Win Fav 4 Menu Exit OSD Settings...
  • Page 12 LEVEL 1 LEVEL 2 LEVEL 3 LEVEL 4 0~100 (50) Image Brightness Adjust Adjust 0~100 (50) 0~100 (50) 0~100 (50) Value Reset Menu Exit 0~100 (50) Contrast Adjust 0~100 (50) 0~100 (50) 0~100 (50) Value Reset Menu Exit 0~100 (50) Hue Adjust 0~100 (50) 0~100 (50)
  • Page 13 LEVEL 1 LEVEL 2 LEVEL 3 LEVEL 4 Image Image Swap CH 1 CH 2 Swap Adjust CH 1 CH 3 Swap (cont.) CH 1 CH 4 Swap CH 2 CH 3 Swap CH 2 CH 4 Swap CH 3 CH 4 Swap Window Channel 1~4 Size...
  • Page 14 LEVEL 1 LEVEL 2 LEVEL 3 LEVEL 4 Window Label Select Video 1 Setup Video 2 (cont.) Video 3 Video 4 Menu Exit Fav. Store FAV 1 Store On/Off FAV 2 Store On/Off FAV 3 Store On/Off FAV 4 Store On/Off Menu Exit Menu Exit...
  • Page 15 LEVEL 1 LEVEL 2 LEVEL 3 LEVEL 4 000~255 (233/0/0) Chromakey Green Minimum for R/G/B Setup 222~255 (255/16/16) Maximum for R/G/B (cont.) 000~255 (0/233/233) Magenta Minimum for R/G/B 222~255 (16/255/255) Maximum for R/G/B 000~255 (0/233/0) Minimum for R/G/B 222~255 (0/233/0) Maximum for R/G/B 000~255 (0/0/232) Blue...
  • Page 16 Note: • Values in bold or ( ) are factory default settings. • The “Chromakey Setup” feature only works with Inputs 1 & 2. Input 1 is always the background video and Input 2 is always the top layer with the key applied to it. The part of Input 2 that is to be keyed out (removed) should, ideally, be a single color that is not used anywhere else in the source signal.

  • Page 17: Rs-232 Protocol

    6.5 RS-232 Protocol SWITCHER REMOTE CONTROLLER Assignment Assignment ► ◄ Baud Rate: 115200bps Data Bits: 8 Parity: None Flow Control: None Stop Bits: 1...

  • Page 18: Rs-232 And Telnet Commands

    6.6 RS-232 and Telnet Commands COMMAND DESCRIPTION HELP/? Displays all available commands. SPOW M Turn the unit’s power on or off (stand-by). M = 0 [off], 1 [on] RPOW Display the current power state. SRES M Set the output resolution. Available values for M: 0 [480p@60Hz] 1 [576p@50Hz]...
  • Page 19 COMMAND DESCRIPTION SOSDH M Set the OSD’s horizontal position. M = 0~20 (Default = 5) ROSDH Display the OSD’s current horizontal position. SOSDV M Set the OSD’s vertical position. M = 0~20 (Default = 5) ROSDV Display the OSD’s current vertical position. SOSDT M Set the OSD’s visibility duration.
  • Page 20 COMMAND DESCRIPTION RSAT N Display the current saturation value for the specified channel. N = 0 [all channels], 1~4 [single channel] SHUE N M Set the hue value for a channel. N = 0 [all channels], 1~4 [single channel] M = 0~100 (Default = 50) RHUE N Display the current hue value for the specified channel.
  • Page 21 COMMAND DESCRIPTION RSWAP M Display current image swap settings for the specified channel pairs. Available values for M: 0 [CH1 & CH2 current sources] 1 [CH1 & CH3 current sources] 2 [CH1 & CH4 current sources] 3 [CH2 & CH3 current sources] 4 [CH2 &...
  • Page 22 COMMAND DESCRIPTION RVSIZE Display the current vertical size of the specified channel. N = 1~4 [channel] SHPOS N M Set the horizontal position (in pixels) of the top- left pixel of the specified channel. N = 1~4 [channel] M = 0~X (Max value of X depends on the current resolution.) RHPOS Display the current horizontal position of the...
  • Page 23 COMMAND DESCRIPTION RPRI N Show the selected channel’s window layer priority. N = 0 [all channels], 1~4 [single channel] SLABEL N “Name” Assign a name to a channel. N = 1~4 [channel] “Name” = Up to 9 alphanumeric characters. RLABEL Display the selected channel’s name.
  • Page 24 COMMAND DESCRIPTION SFADE M Set the fade in/fade out time. Available values for M (in seconds): 0 [off] 1 [1.0] 2 [1.1] 3 [1.2] 4 [1.3] 5 [1.4] 6 [1.5] 7 [1.6] 8 [1.7] 9 [1.8] 10 [1.9] 11 [2.0] 12 [2.1] 13 [2.2] 14 [2.3]...
  • Page 25 COMMAND DESCRIPTION SCHRKS M Select a key color preset for the chroma key. Available values for M: 0 [User 1] 1 [User 2] 2 [White] 3 [Yellow] 4 [Cyan] 5 [Green] 6 [Magenta] 7 [Red] 8 [Blue] 9 [Black] (Default = 0) RCHRKS Display the current chroma key preset selection.
  • Page 26 COMMAND DESCRIPTION RCHRC N Display the current brightness value of the selected chroma key item. Available values for N: 0 [User 1, G max] 1 [User 1, G min] 2 [User 1, R max] 3 [User 1, R min] 4 [User 1, B max] 5 [User 1, B min] 6 [User 2, G max] 7 [User 2, G min]...
  • Page 27 COMMAND DESCRIPTION SETHT M Set the Ethernet timeout. Available values for M: 0 [off] 1 [10 min] 2 [20 min] 3 [30 min] 4 [40 min] 5 [50 min] 6 [60 min] (Default = 0) RETHT Display the current Ethernet timeout value. RELINK Re-link the unit after 2 seconds.
  • Page 28 COMMAND DESCRIPTION RBIOS Display the BIOS version. SLOGOD M Enable or disable the logo display. M = 0 [off], 1 [on] (Default = 0) RLOGOD Display the current state of the logo display. SLOGOH M Set the horizontal position (in pixels) of the top- left pixel of the logo.

  • Page 29: Telnet Control

    6.7 Telnet Control Before attempting to use telnet control, please ensure that both the unit and the PC/Laptop are connected to the same active networks. To access Telnet in Windows 7, click on the “Start” menu and type “cmd” in the search field, then press “Enter”. Under Windows XP go to the “Start”...
  • Page 30 This will connect us to the unit we wish to control. Type “help” to list the available commands. Type “IPCONFIG” to list all IP configurations. Type “IPMODE” to put the unit into static IP/DHCP mode. For a full list of commands, see section 6.6. Note: •...

  • Page 31: Webgui Control

    6.8 WebGUI Control All primary functions of this unit are controllable via the built in WebGUI. This control is presented across 8 separate tabs, including Image Adjust, Image Swap, Output Resolution, Windows Setup, OSD/ LOGO Settings, Window Convert, Chromakey Setup, and Ethernet. Depending on the unit’s current operation mode, some tabs will be disabled.

  • Page 32: Image Adjust

    6.8.1 Image Adjust Select the “Image Adjust” tab to adjust the contrast, saturation, brightness, brightness and hue of each channel window. Additionally, each channel can be paused/un-paused independently, or all at the same time. 6.8.2 Image Swap (Multi-Window Mode [E~H] only) Click on the “Image Swap”...

  • Page 33: Output Resolution

    6.8.3 Output Resolution Click on the “Output Resolution” tab to set the output resolution for the unit. 6.8.4 Windows Setup (Multi-Window Mode [E~H] only) Click on the “Windows Setup” tab to configure each channel window’s size, position, depth priority, and label. The individual channels may also be enabled/disabled.

  • Page 34: Osd/Logo Settings

    Notes: • The positioning coordinates are measured from the upper-left corner of each channel window and the values depend on the selected output resolution. • All changes made via mouse control occur immediately and are saved to the current Window Mode. To apply and save changes made via text entry the “Save”...

  • Page 35: Window Convert

    6.8.6 Window Convert (Single Window Mode [A~D] only) Click on the “Window Convert” tab to access controls for mirror mode, 90° rotation and crossfade length. Note: When rotation is enabled, crossfade and chromakey functionality is disabled. 6.8.7 Chromakey Setup (Single Window Mode [A~D] only) Click on the “Chromakey Setup”...

  • Page 36: Ethernet

    Note: When Chromakey is enabled, crossfade and rotation functionality is disabled. 6.8.8 Ethernet Click on the “Ethernet” tab to access control of the IP configuration for the unit. The IP Address, Netmask and Gateway can be set manually, or DHCP can be enabled for automatic IP configuration if your local network supports it.

  • Page 37: Connection Diagram

    7. CONNECTION DIAGRAM Camera Set-top Box DVD/Blu-ray Player Game Console HDMI Inputs Internet Connected Router 4 3 2 1 Power Supply HDMI IN HDMI OUT CONTROL RS232 DC 12V SERVICE ONLY HDMI Output RS-232 RS-232 Enabled PC/Laptop or Control System HDTV Screen Configurations: Window E...

  • Page 38: Specifications

    8. SPECIFICATIONS 8.1 Technical Specifications Video Bandwidth 225MHz/6.75Gbps Input Ports 4×HDMI Output Ports 1×HDMI Supported Resolutions 480i@60Hz - 1080p@60Hz (12-bit) VGA@60Hz - WUXGA@60Hz (RB) HDMI Cable Length 15m (1080p@60Hz, 12-bit) Power Supply 12V/3A DC (US/EU standards, CE/FCC/UL certified) ESD Protection Human Body Model: ±12kV (Air Discharge) ±8kV (Contact Discharge)

  • Page 39: Video Specifications

    8.2 Video Specifications Supported PC Resolutions (Hz) Input Output 640×480@60  640×480@72  640×480@75  640×480@85  800×600@56  800×600@60  800×600@72  800×600@75  800×600@85  1024×768@60   1024×768@70  1024×768@75  1024×768@85  1360×768@60  1280×768@60  1280×768@75 ...
  • Page 40 Supported TV Resolutions (Hz) Input Output 480i@60  576i@50  480p@60   576p@50   720p@50   720p@60   1080i@50  1080i@60  1080p@24   1080p@25  1080p@30  1080p@50   1080p@60  ...

  • Page 41: Acronyms

    9. ACRONYMS ACRONYM COMPLETE TERM Command Line Interface Digital Visual Interface EDID Extended Display Identification Data Graphical User Interface High-Definition HDCP High-bandwidth Digital Content Protection HDMI High-Definition Multimedia Interface Infrared LPCM Linear Pulse-Code Modulation On-Screen Display Personal Computer Pulse-Code Modulation Universal Serial Bus Video Graphics Array (640×480@60Hz) WUXGA...
  • Page 44 CYPRESS TECHNOLOGY CO., LTD. www.cypress.com.tw...
