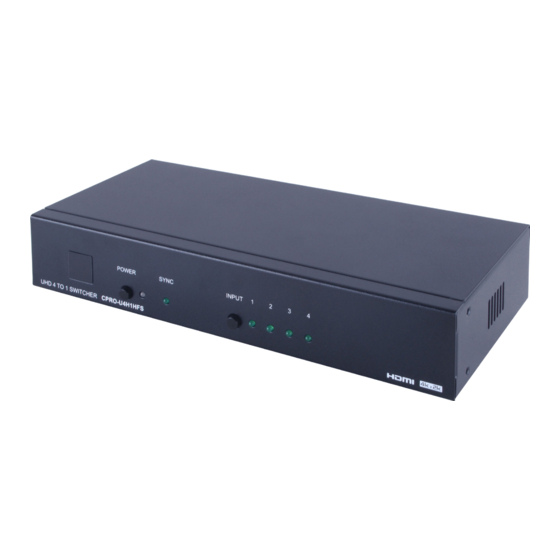

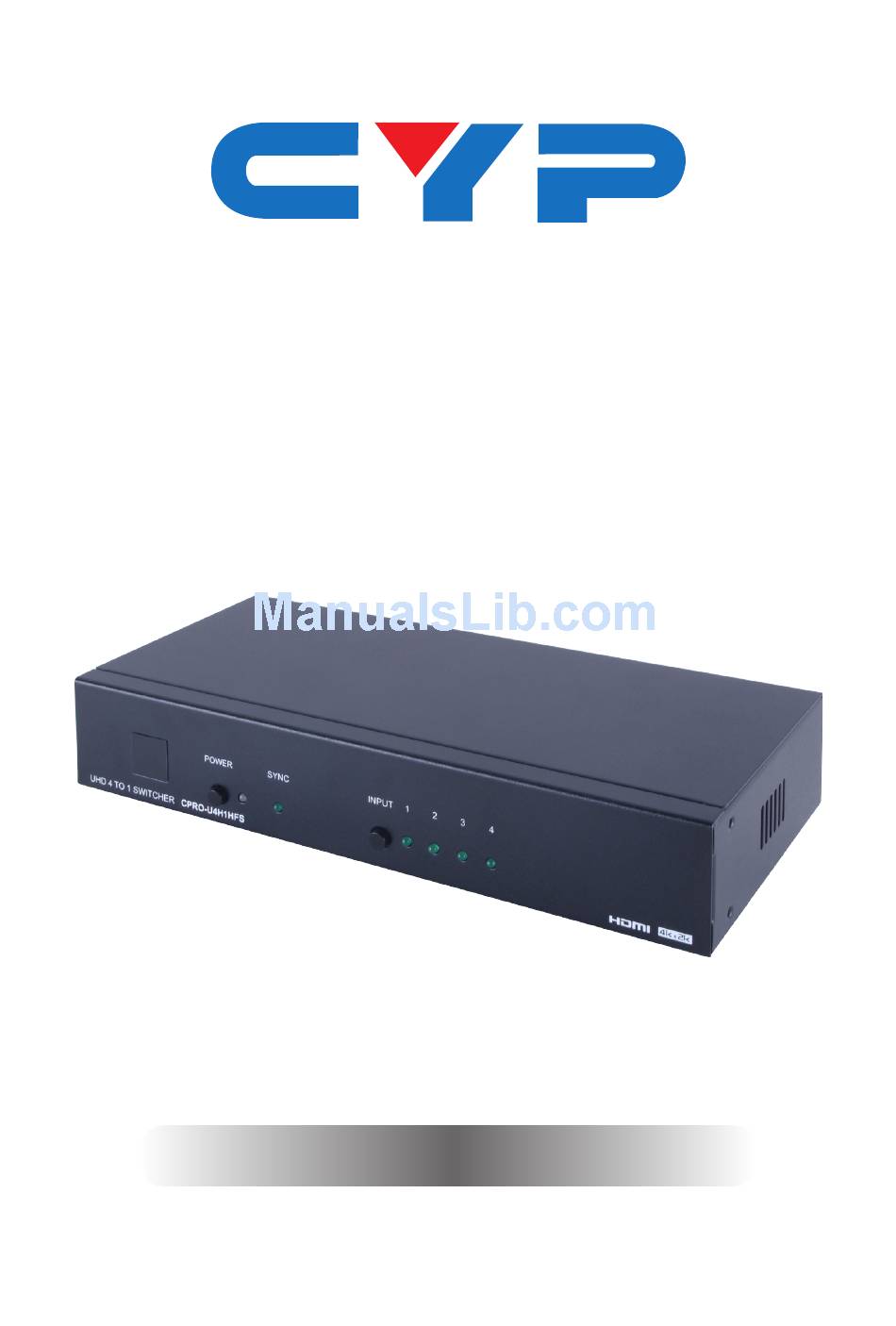

- Page 1 CPRO-U4H1HFS UHD 4 to 1 HDMI Switcher Operation Manual Operation Manual...
-
Page 3: Copyright Notice
DISCLAIMERS The information in this manual has been carefully checked and is believed to be accurate. Cypress Technology assumes no responsibility for any infringements of patents or other rights of third parties which may result from its use. Cypress Technology assumes no responsibility for any inaccuracies that may be contained in this document. -
Page 4: Safety Precautions
SAFETY PRECAUTIONS Please read all instructions before attempting to unpack, install or operate this equipment and before connecting the power supply. Please keep the following in mind as you unpack and install this equipment: • Always follow basic safety precautions to reduce the risk of fire, electrical shock and injury to persons. -
Page 5: Table Of Contents
CONTENTS 1. Introduction ..........1 2. Applications ........... 1 3. Package Contents ........ 1 4. System Requirements ......1 5. Features ..........2 6. Operation Controls and Functions ..3 6.1 Front Panel ........3 6.2 Rear Panel .........4 6.3 Remote Control ........5 6.4 RS-232 Pin Assignment .....5 6.5 IP Searching Software Application and Installation ........6... -
Page 6: Introduction
1. INTRODUCTION The 4 by 1 HDMI Switcher enables the switching of four HDMI sources to a single HDMI output, allowing a display or AV Receiver to select between four devices. With fast switching technology the device can greatly eliminate the time required by swapping or turning ON/ OFF the connected displays. -
Page 7: Features
5. FEATURES • HDMI (with 3D & 4K2K supported) and HDCP compliant • Select any one of four HDMI sources and display on a HDTV display with fast switching between sources • Supports 3D signals pass-through • Supports HDTV resolutions up to 4Kx2K (3840x2160@24/25/30, 50/60 YUV_420 &... -
Page 8: Operation Controls And Functions
6.1 Front Panel POWER SYNC INPUT UHD 4 TO 1 SWITCHER CPRO-U4H1HFS IR Window: This IR Receiver receives the remote control signal from the packaged included remote control only with IR frequency at 38kHz. POWER & LED: Press this button to turn ON the device or set the device to standby mode. -
Page 9: Rear Panel
6.2 Rear Panel HDMI IN HDMI OUT SERVICE CONTROL RS-232 IR IN DC 5V HDMI IN: Connect from source equipment such as Blu-ray/DVD/ PS3 players, Set-Top-Box or any HDMI equipped source device for input signal sending. The device obtain auto detection function and will detect the last plug-in source for display on output when it is unplugged, the device will detect rotationally from 1~4 input source for display on output. -
Page 10: Remote Control
6.3 Remote Control POWER POWER: Press this button to switch ON the device or to set it to standby mode. INPUT: Press 1~4 to select input source. INPUT CR-72 6.4 RS-232 Pin Assignment Switcher Remote Control Assignment Assignment Baud Rate: 115200bps Data Bit: 8 bits Parity: None Flow Control: None... -
Page 11: Ip Searching Software Application And Installation
6.5 IP Searching Software Application and Installation Please download the software from www.cypress.com.tw with file name CDPS V2.000 and save it in a directory where you may use it later. Connect the Control System with PC/Laptop through the Ethernet port through an active network system and open the CDPS V2.000 application. -
Page 12: Rs-232 & Telnet Commands
6.6 RS-232 & Telnet Commands COMMAND NAME DESCRIPTION DESCRIPTION OF PARAMETER Power Off (Standby) NONE Power On NONE Select Input N N=1-4 IPCONFIG Display The Current IP NONE Configure SIPADDR XXX.XXX. Set Ethernet IP XXX=0~255 XXX.XXX Address SNETMASK XXX.XXX. Set Ethernet Net Mask XXX=0~255 XXX.XXX SGATEWAY XXX.XXX. - Page 13 COMMAND NAME DESCRIPTION DESCRIPTION OF PARAMETER HDCPIN N1 N2 Set Input N1 HDCP N1=1-4 N2=0(OFF), On/Off* 1(ON) SOURCEDET Show All Inputs Signal NONE SOURCEDET N1 Show Input N1 Signal N1=1-4 SINKINFO Show Output NONE Information INNAME Show Input Name NONE INNAME N1 N2 Set Input Name N1=1-4...
-
Page 14: Edid Content
6.7 EDID Content Mode Selection Description HDMI Output(TV) HDMI Output display EDID Build-In EDID, Deep 8/2D/PCM/720p color/2D3D/audio/native resolution 8/2D/PCM/ Same as above AC3/720p 8/2D/PCM/1080p Same as above EDID All 8/2D/PCM/ Same as above AC3/1080p EDID 8/2D/PCM/4K2K Same as above Mode 8/2D/PCM/ Same as above AC3/4K2K... -
Page 15: Telnet Control
6.8 Telnet Control To access the telnet control under MS windows, click ‘Start’ menu and type “cmd” in the search field then press enter. Under Mac OS X, go to Go → Application → Utilities → Terminal See below for reference. Once in the command line interface (CLI) type "telnet", then the IP address, and hit enter. - Page 16 Press “Help” or “?” then hit enter to bring up all available commands. Note: Any commands will not be executed unless followed by a carriage return. Commands are case-insensitive. If the IP is changed then the IP Address required for Telnet access will also change accordingly.
-
Page 17: Webgui Control
6.9 WebGUI Control On a PC/Laptop that is connected to an active network system, open a web browser and type device’s IP address (the default statics IP is 192.168.1.50 or available from RS-232 or use the link application from note 4 in section 6.5 to find) on the web address entry bar. The browser will display the device’s Status, IO Status, EDID Control, Settings and Network Configuration control pages for users to control. - Page 18 Click on Network Configuration to set the device’s IP configuration once the changes is saved the system will reset the IP address on the device automatically and user will need to re-enter the IP address to continue the WebGUI function.
-
Page 19: Connection Diagram
7. CONNECTION DIAGRAM Blu-ray/DVD/PS3 Players 30° HDMI IN HDMI OUT SERVICE CONTROL RS-232 IR IN DC 5V Display TV/Monitor Note: The IR Extender cable distance is up to 5 meters and 8 meters for the IR Window on the front panel. -
Page 20: Specifications
8. SPECIFICATIONS Frequency bandwidth 300Mbps to 3Gbps Input Ports 4 x HDMI, 1 x USB (Service only), 1 x RJ45 (Control), 1 x RS-232, 1 x IR Extender Output ports 1 x HDMI Resolution 480i~1080p@50/60, 1080p@24, 4K2K (3840x2160@24/25/30, 50/60 YUV_420 & 4096x2160@24, 50/60YUV_420) HDMI I/O Cable Distance 15M@8/12bit, 5M@4Kx2K IR Frequency... - Page 21 DVI and HDMI Supported Resolutions Input Output 640x480@60 640x480@72 640x480@75 720x480@60 720x576p@50 800x600@60 800x600@72 800x600@75 1024x768@60 1024x768@70 1024x768@75 1280x720@50 1280x720@60 1280x720p@60 1280x768@60 1280x800@60 1280x1024@60 1360x768@60 1600x1200@60 1920x1080i@50 1920x1080i@60 1920x1080p@24 1920x1080p@25 1920x1080p@30 1920x1080p@50 1920x1080p@60 1920x1200@60(RB) 3840x2160@24/25/30, 50/60 Y420 4096x2160@24/,50/60 Y420...
-
Page 22: Acronyms
Audio Sampling Rate Up to 192 kHz HDMI input (Up to 192kHz) HDMI output LPCM 2CH LPCM 5.1CH LPCM 7.1CH Dolby Digital 2~5.1CH/ DTS 2~5.1CH Dolby TrueHD/ DTS-HD Master Audio Audio Format LPCM 2/5.1/7.1CH,Dolby Digital 2~5.1CH, DTS 2~5.1CH (Pass through), Dolby TrueHD and DTS-HD Master Audio 9. - Page 24 CYPRESS TECHNOLOGY CO., LTD Home page: http://www.cypress.com.tw MPM-CPROU4H1HFS...
