CYP CDPS-U2HPIP Operation Manual

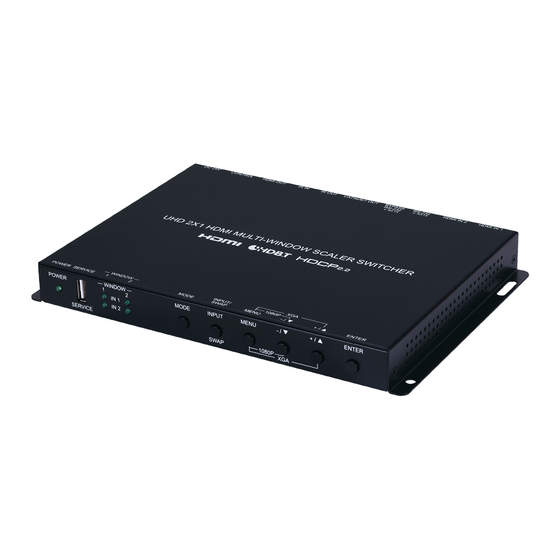

4k uhd 2x1 hdmi multi-window scaler switcher
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
CDPS-U2HPIP
4K UHD 2x1 HDMI Multi-Window Scaler Switcher
Operation Manual
Operation Manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the CDPS-U2HPIP and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for CYP CDPS-U2HPIP

Summary of Contents for CYP CDPS-U2HPIP

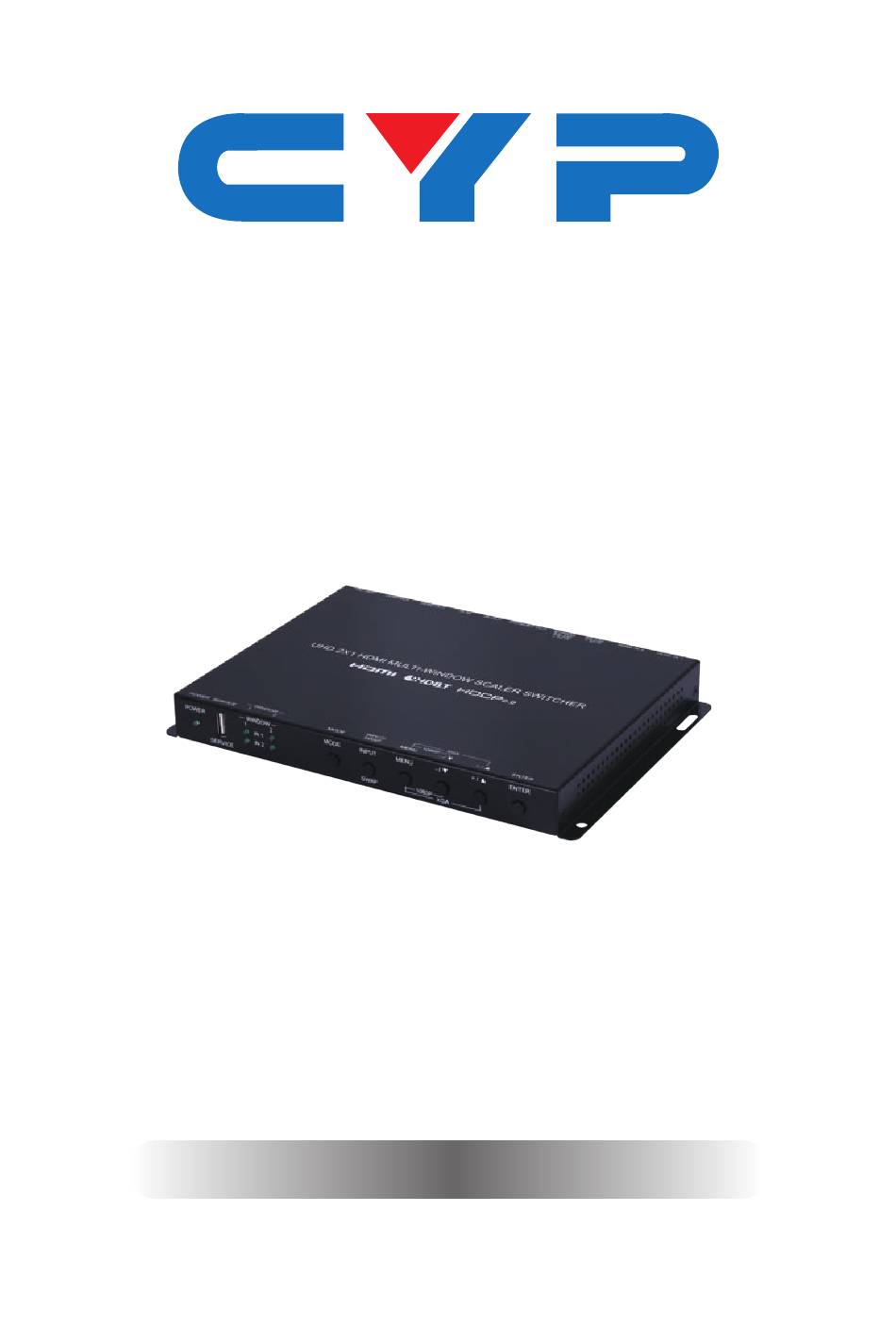

  • Page 1 CDPS-U2HPIP 4K UHD 2x1 HDMI Multi-Window Scaler Switcher Operation Manual Operation Manual...
  • Page 3 DISCLAIMERS The information in this manual has been carefully checked and is believed to be accurate. Cypress Technology assumes no responsibility for any infringements of patents or other rights of third parties which may result from its use. Cypress Technology assumes no responsibility for any inaccuracies that may be contained in this document.
  • Page 4 SAFETY PRECAUTIONS Please read all instructions before attempting to unpack, install or operate this equipment and before connecting the power supply. Please keep the following in mind as you unpack and install this equipment: • Always follow basic safety precautions to reduce the risk of fire, electrical shock and injury to persons.

  • Page 5: Table Of Contents

    CONTENTS 1. Introduction ............1 2. Applications .............1 3. Package Contents ..........1 4. System Requirements ........2 5. Features ............2 6. Operation Controls and Functions ....3 6.1 Front Panel ..........3 6.2 Rear Panel ..........4 6.3 IR Cable Pinouts ........5 6.4 RS-232 Pinout and Defaults ......

  • Page 6: Introduction

    1. INTRODUCTION This 2 by 1 HDMI Multi-Window Scaler Switcher is a high performance HDMI switch with integrated scaling and multi-windowing technology. With a primary HDMI output and a mirrored HDBaseT output, this is an ideal solution for monitoring or displaying two sources simultaneously for use in control rooms, conference rooms or classrooms.

  • Page 7: System Requirements

    4. SYSTEM REQUIREMENTS • HDMI source equipment such as media players, video game consoles or set-top boxes. • HDMI receiving equipment such as HDTVs, monitors or audio amplifiers. • A compatible HDBaseT receiver with PoH support is recommended. • The use of Premium High Speed HDMI cables, and industry standard Cat.6, Cat.6A or Cat.7, is highly recommended.

  • Page 8: Operation Controls And Functions

    6. OPERATION CONTROLS AND FUNCTIONS 6.1 Front Panel WINDOW POWER MODE INPUT MENU ENTER IN 1 IN 2 1080P SERVICE SWAP POWER LED: This LED will illuminate to indicate the unit is on and receiving power. SERVICE Port: This port is used for User Logo and EDID uploads, and firmware updates.

  • Page 9: Rear Panel

    6.2 Rear Panel BYPASS HDMI IN 1 HDMI IN 2 RS-232 RS-232 CAT5e/6/7 OUT IR OUT IR IN HDMI OUT CONTROL DC 24V HDMI IN 1~2 Ports: Connect to HDMI source equipment such as media players, game consoles, or set-top boxes. RS-232 3-pin Terminal Block: Connect directly to a PC, laptop, or other serial control device with a 3-pin adapter cable to send RS- 232 commands to control the unit.

  • Page 10: Ir Cable Pinouts

    6.3 IR Cable Pinouts IR Blaster IR Extender Cable Cable Power Infrared Infrared Power Not Used Ground 6.4 RS-232 Pinout and Defaults Serial Port Default Settings Baud Rate 19200 Data Bits Parity Bits None Stop Bits Flow Control None RS-232 Port 1 (Unit control) RS-232 Port 2 (HDBaseT extension) 3-pin Terminal Block 3-pin Terminal Block...

  • Page 11: Osd Menu

    6.5 OSD Menu All functions of this unit can be controlled by using the OSD (On Screen Display) which is activated by pressing the MENU button on the front of the unit. Use the + (PLUS), − (MINUS), and ENTER buttons to navigate the OSD menu.
  • Page 12 VIDEO MODE 2ND LEVEL 3RD LEVEL SWITCHER Video Mode Custom IN 1 Window Source In 2 IN 1 Window 1 Source In 2 IN 1 Window 2 Source In 2 ALWAYS ON Window 2 Pop Up Instant On Fade In STANDARD Switch Mode Seamless...
  • Page 13 WINDOW LAYOUT 2ND LEVEL 3RD LEVEL 4TH LEVEL Window 1 1~{Res. max} (240) Position 1~{Res. max} (135) 1~{Res. max} (1440) Size 1~{Res. max} (809) FULL Aspect 16:10 16:9 64:27 Keep Ratio {Situational} (1.778) Custom Zoom Under 5% Under 2.5% FULL Over 2.5% Over 5% Over 7.5%...
  • Page 14 WINDOW LAYOUT 2ND LEVEL 3RD LEVEL 4TH LEVEL Window 2 1~{Res. max} (1280) Position 1~{Res. max} (720) 1~{Res. max} (639) Size 1~{Res. max} (359) Aspect Full 16:10 16:9 64:27 KEEP RATIO {Situational} (1.778) Custom Mirror Horizontal Vertical Hori+Vert 0~15 (0) Transparency Border On/Off Border Color...
  • Page 15 WINDOW LAYOUT 2ND LEVEL 3RD LEVEL 4TH LEVEL Border Color Dark Green Dark Blue Dark Yellow Dark Magenta Dark Cyan Gray Black 1~20 (10) Border Size 0~14 (0) Border Trans. Window 1: 1) Position X/Y: Set the horizontal and vertical position of the upper left corner of the window.
  • Page 16 Window 2: 8) Position X/Y: Set the horizontal and vertical position of the upper left corner of the window. Opens a special positioning menu allowing adjustments in real time. Note: Only available in the PiP and Custom video modes. 9) Size W/H: Set the horizontal size of the window, in pixels. Opens a special positioning menu allowing adjustments in real time.
  • Page 17 COLOR KEY 2ND LEVEL 3RD LEVEL 4TH LEVEL Key On/Off 0~{Res. max} (0) Cursor 0~{Res. max} (0) 0~255 (168) Color Y 0~255 (45) Color Cb 0~255 (32) Color Cr 0~{Color Y} (32) Range Y 0~{Color Cb} (32) Range Cb 0~{Color Cr} (32) Range Cr Key Y Key Cb...
  • Page 18 PICTURE 2ND LEVEL 3RD LEVEL 0~100 (50) Contrast 0~100 (50) Brightness 0~100 (50) Saturation 0~100 (50) 0~10 (0) Sharpness 0~100 (50) 0~100 (50) Green 0~100 (50) Blue Reset Enter STANDARD Preset Vivid Soft 1) Contrast: Set the overall contrast of the output video. 2) Brightness: Set the overall brightness of the output video.
  • Page 19 AUDIO 2ND LEVEL 3RD LEVEL WIN 1 Source Win 2 In 1 In 2 Mute 1) Source: Select the audio source to pair with the video output. Note: Win 2 is not available as a source in Switcher mode. 2) Mute: Enable or disable muting the audio output.
  • Page 20 INPUT EDID 2ND LEVEL 3RD LEVEL EDID Mode Independent FHD/2CH All EDID FHD/MCh 4K UHD/2Ch 4K UHD/MCh Sink HDBT Sink HDMI User 1 User 2 User 3 User 4 IN 1 EDID [Same as All EDID] IN 2 EDID [Same as All EDID] User 1 Update User 2 Update User 3 Update...
  • Page 21 3) IN 1 EDID: Select the EDID to assign to input 1. Note: Only available in the “Independent” EDID Mode. 4) IN 2 EDID: Select the EDID to assign to input 2. Note: Only available in the “Independent” EDID Mode. 5) User 1~4 Update: To update any of the unit’s 4 User EDIDs via USB, select “Yes”...
  • Page 22 OUTPUT RESOLUTION 2ND LEVEL 640x480@59 800x600@60 1024x768@60 1280x800@60 1280x1024@60 1366x768@60 1440x900@60 1600x900@60rb 1600x1200@60 1680x1050@60 1920x1200@60rb 1920x1200@60 2560x1600@60rb 3440x1440@30 480p59 480p60 576p50 720p50 720p60 1080p24 1080p25 1080p30 1080p50 1080p59 1080P60 4K24 4K25 4K30...
  • Page 23 OUTPUT RESOLUTION 2ND LEVEL 4K24(DCI) Native HDBT Native HDMI 1) Output Resolution: Select the preferred video output resolution. Note: Both outputs will always share the same video resolution.
  • Page 24 OSD SETTINGS 2ND LEVEL 3RD LEVEL TOP LEFT Menu Position Top Right Bottom Right Bottom Left Center 0~10 (5) Menu Offset Menu Timeout 5~60 (8) Info.Timeout 5~60 (5) Info.Display Info.Brief Info.NoSignal 0~15 (2) Transparency BLUE Text White GRAY Background Orange Black Blue 1) Menu Position: Set the position of the OSD menu on the output.
  • Page 25 3) Menu Timeout: Set the length of time, in seconds, that the OSD menu will continue to be displayed if there is no user input, or disable the timeout completely. 4) Info. Timeout: Set the length of time, in seconds, that the informational OSD will be displayed after a signal or source change, or disable the timeout completely.
  • Page 26 LOGO SETTINGS 2ND LEVEL 3RD LEVEL 4TH LEVEL Display 0~{Res. max} (32) Position 0~{Res. max} (54) Color Key 0~255 (0) Color Value 0~255 (0) 0~255 (196) 0~100 (22) Color Range 0~14 (3) Transparency DEFAULT Logo Source User Logo Update 1) Display: Enable or disable displaying the logo graphic. 2) Position X/Y: Sets the position of the logo’s upper left corner, within the output.
  • Page 27 7) Logo Source: Select whether to use the unit’s built in “Default” logo, or to use the current user uploaded logo. 8) Logo Update: To upload a graphic logo via USB, select “Yes” and then insert a USB stick containing the new logo graphic file (24- bit BMP format, 128×128 max resolution) into the Service port.
  • Page 28 ADVANCED 2ND LEVEL 3RD LEVEL User Source Timing Win 1 4:4:4 Process Auto Input Auto Switch 0~5 Sec (1) Auto Switch Delay HDBT Performance Enter Test Pattern White Cross Hatch Colorbar Gray Scale White Window H Ramp V Ramp Diagonal Green Blue Preset Save...
  • Page 29 Note: Only available in Switcher mode when “Standard” switching is selected. 3) Input Auto Switch: Enable or disable the unit’s auto switch feature. Note: Only available in Switcher mode. 4) Auto Switch Delay: Set the length of time to wait, after a source is no longer detected, before automatically switching.
  • Page 30 SETUP 2ND LEVEL 3RD LEVEL ALWAYS ON Auto Sync Off 5 sec. 10 sec. 15 sec. 30 sec. 1 min. 1.5 min. 2 min. 2.5 min. 3 min. 5 min. 10 min. Firmware Update Flash Update HDBT TX FW Update HDBT RX FW Update User EDID Reset Factory Reset...
  • Page 31 2) Firmware Updates: To update any of the following firmware via USB, select “Yes” next to the appropriate firmware type and then insert a USB stick containing the new firmware into the Service port. The upload will occur immediately. Note: The USB stick must contain, in the root directory, a compatible and properly named (*.BIN) firmware file.
  • Page 32 INFORMATION 2ND LEVEL 3RD LEVEL Source 1 Resolution Format [Current source details] HDCP Audio Source 2 Resolution Format [Current source details] HDCP Audio HDBT Disp HDCP Port EDID Format [Current display Native 1 details] Native 2 Model HDMI Disp HDCP Port EDID Format [Current display Native 1...
  • Page 33 INFORMATION 2ND LEVEL 3RD LEVEL System Output Reso. Output HDCP: HDBT Output HDCP: HDMI [Current System Win 1 4:4:4 details] HDBT Tx F/W HDBT Rx F/W Firmware 1) Information: Shows the currently detected details for both inputs and both outputs as well as listing the status of a few critical system settings and relevant firmware versions.

  • Page 34: Webgui Control

    6.6 WebGUI Control • Device Discovery Please obtain the “Device Discovery” software from your authorized dealer and save it in a directory where you can easily find it. Connect the unit and your PC/Laptop to the same active network and execute the “Device Discovery” software. Click on “Find Devices on Network”...
  • Page 35 • WebGUI Overview After connecting to the WebGUI’s address in a web browser, the login screen will appear. Please enter the appropriate user name and password then click “Submit” to log in. Note: The default user name and password is “admin”. On the left side of the browser you will see the following menu tabs where all primary functions of the unit are controllable via the built in WebGUI.

  • Page 36: Video Mode Tab

    6.6.1 Video Mode Tab This tab provides access to controls for selecting between the Switcher and PiP/PoP output modes of the unit as well as selecting the video source(s) to display and how switching transitions are handled. Note: Both outputs of the unit are linked and will always show the same video contents.
  • Page 37 ■ Custom Mode: Both windows can be fully resized and positioned anywhere on the screen with full aspect ratio control. Window 2 will always be on top of window 1. Window 2 can be made transparent, keyed through, and given a border. Note: When the output resolution is set to 4K, window 2 cannot support 4K sources.

  • Page 38: Window Layout Tab

    6.6.2 Window Layout Tab This tab provides controls over the size, position and other settings for both video windows. Individual features and functions will be enabled or disabled depending on the unit’s current Video Mode setting. Note: In Switcher mode, only window 1’s controls are available. 1) Position X/Y: Set the horizontal and vertical position of the upper left corner of the window.
  • Page 39 after changing the value. Note: Only available in the PiP and Custom video modes. Window 1’s size can only be adjusted in the Custom video mode. 4) Aspect: Set the aspect ratio to use with the window’s sources. The aspect ratio can be set to any of the following choices: Full, 4:3, 16:10, 16:9, 64:27, Keep Ratio, or Custom.

  • Page 40: Color Key Tab

    6.6.3 Color Key Tab This tab provides control over the chroma key functions of the unit. Keying values and ranges are set using the full YCbCr color space (0~255). Note: Only available in the PiP and Custom video modes. 1) Key On/Off: Enable or disable chroma keying in window 2. 2) Cursor X/Y: Sets the location of the pixel, within window 2, to use as the basis for the key rather than manually entering values.

  • Page 41: Picture Tab

    6.6.4 Picture Tab This tab provides controls over the video output’s color, brightness, contrast, hue, saturation, sharpness and RGB color levels. 1) Preset: Select one of 3 available video output presets (Standard, Vivid, Soft). Any changes made to a selected preset will be stored as the standard values for that preset.

  • Page 42: Audio Tab

    6.6.5 Audio Tab This tab provides control over the audio output behavior of the unit, including routing selection and muting. 1) Source: Use the dropdown to choose the audio source to pair with the video output. ■ IN 1: Always use the audio from Input 1. ■...

  • Page 43: Input Edid Tab

    6.6.6 Input EDID Tab This unit provides the option of four standard EDIDs, two sink sourced EDIDs and four user uploaded EDIDs that can be assigned to both inputs at the same time, or to each input independently. Note: In most cases, assigning a new EDID to an input will cause the affected input to briefly blink out while the source adapts to the new information.

  • Page 44: Hdcp Mode Tab

    6.6.7 HDCP Mode Tab This tab provides control over the HDCP settings for both inputs. 1) HDCP Mode Input 1/2: Select the HDCP behavior for each input. ■ HDCP Support Off: Completely disables support for HDCP on that input. ■ Refer to Source: Makes the input port support the same HDCP version as required by the connected source.

  • Page 45: Osd Settings Tab

    6.6.9 OSD Settings Tab This tab provides control over the behavior of the OSD menu and informational display. 1) Menu Position: Use the dropdown to set the position of the OSD menu on the output. Available choices are: Top Left, Top Right, Bottom Right, Bottom Left, and Center.

  • Page 46: Logo Settings Tab

    6.6.10 Logo Settings Tab This tab provides control over the user uploaded logo graphic. Controls include positioning, keying, and transparency as well as an option to upload a new logo directly from the WebGUI. 1) Display: Enable or disable displaying the logo graphic. 2) Position X/Y: Sets the position of the logo’s upper left corner, within the output.
  • Page 47 6) Transparency: Set the transparency level of the logo graphic with a range from 0 (opaque) to 14 (mostly transparent). 7) Logo Source: Select whether to use the unit’s built in “Default” logo, or to use the current user uploaded logo. 8) Logo Update: To upload a graphic logo, please click the “Choose File”...

  • Page 48: Ethernet Tab

    6.6.11 Ethernet Tab This tab provides controls to change the network settings for the unit. You can manually set the IP address, netmask and gateway address in “Static IP” mode, or you can obtain an IP address automatically by enabling DHCP. Note: The unit’s default Static IP address is 192.168.1.50.

  • Page 49: Advanced Tab

    6.6.12 Advanced Tab This tab provides controls over a number of advanced features of this unit including color processing, auto switch control, test pattern activation, storing/recalling presets as well as configuring the WebGUI login password and timeout. 1) Advanced: Controls over a number of advanced unit settings. ■...
  • Page 50 basic connection quality test between the unit and a connected HDBaseT receiver. ■ Test Pattern: Select an internally generated test pattern, displayed on both outputs, to perform basic tests of the connected sinks. Available test patterns are: White, Red, Green and Blue Fields, Crosshatch, Colorbar, Gray Scale, White Window, H Ramp, V Ramp, and Diagonal Lines.

  • Page 51: Setup Tab

    6.6.13 Setup Tab Provides a way to update firmware and reset various sections within the unit. Control over the unit’s Auto Sync Off feature is also provided here. 1) Auto Sync Off: Sets the amount of time to continue outputting sync with a black screen if there are no live sources and no operations have been executed on the unit.

  • Page 52: Information Tab

    3) System Resets: ■ User EDID: Press this button to reset the unit’s User EDIDs to their factory default states. ■ Factory: Press this button to reset the unit to its factory default state. After the reset is complete, the unit will reboot automatically.

  • Page 53: Telnet Control

    6.7 Telnet Control Before attempting to use Telnet control, please ensure that both the unit and the PC are connected to the same active networks. To Access the Command Line Interface (CLI) Click Start, type “cmd” in the search field, and Windows 7 press Enter.

  • Page 54: Serial And Telnet Commands

    6.8 Serial and Telnet Commands COMMAND Description and Parameters HELP  Show the full command list.  Show the full command list. GET FW VER  Show the unit’s current firmware version. SET WINDOW LAYOUT MODE N1  Set the unit’s window layout mode. Available values for N1: [Switcher mode] [PiP mode]...
  • Page 55 COMMAND Description and Parameters SET WINDOW 2 POPUUP N1  Set the window pop-up mode for window 2. Available values for N1: [Always on] [Instant on] [Fade in] GET WINDOW 2 POPUP  Show the current window pop-up mode for window 2. SET VIDEO SWITCH MODE N1 ...
  • Page 56 COMMAND Description and Parameters SET WINDOW N1 VSIZE N2  Set the vertical size of the specified window. N1 = 1~2 [Window number] N2 = 1 ~ {Max res} [Vertical size] GET WINDOW N1 VSIZE  Show the current vertical size of the specified window. N1 = 1~2 [Window number] SET WINDOW N1 HPOSITION N2...
  • Page 57 COMMAND Description and Parameters SET WINIDOW N1 ASPECT N2  Set the aspect ratio of the specified window. N1 = 1~2 [Window number] Available values for N2: [Full] [4:3] [16:10] [16:9] [64:27] [Keep aspect] [Custom] GET WINDOW N1 ASPECT  Show the current aspect ratio of the specified window.
  • Page 58 COMMAND Description and Parameters GET WINDOW N1 CUSTOM ASPECT VSIZE  Show the current vertical size of the specified window in the Custom aspect ratio mode. N1 = 1~2 [Window number] SET WINDOW 1 ZOOM N1  Set the zoom setting for window 1. Available values for N1: [1:1] [Under scan 5%]...
  • Page 59 COMMAND Description and Parameters SET WINDOW N1 MIRROR N2  Set the mirror mode of the specified window. N1 = 1~2 [Window number] Available values for N2: [Disabled] [Horizontal mirror] [Vertical mirror] [Horizontal + Vertical mirror] GET WINDOW N1 MIRROR ...
  • Page 60 COMMAND Description and Parameters SET WINDOW 2 BORDER COLOR N1  Set the color of the border around window 2. Available values for N1: [Black] [Red] [Green] [Blue] [Yellow] [Magenta] [Cyan] [White] [Dark Red] [Dark Green] [Dark Blue] [Dark Yellow] [Dark Magenta] [Dark Cyan] [Gray]...
  • Page 61 COMMAND Description and Parameters SET WINDOW 2 COLOR Y N1  Set the base Y value for window 2’s chroma key. N1 = 0~255 [Base Y value] GET WINDOW 2 COLOR Y  Show the current base Y value for window 2’s chroma key. SET WINDOW 2 COLOR CB N1 ...
  • Page 62 COMMAND Description and Parameters SET WINDOW 2 COLOR RANGE CR N1  Set the Cr value range for window 2’s chroma key. N1 = 0~255 [Cr range value] GET WINDOW 2 COLOR RANGE CR  Show the current Cr value range for window 2’s chroma key. GET WINDOW COLOR RANGE VALUE N1 N2 ...
  • Page 63 COMMAND Description and Parameters SET OUT A RED N1  Set the red gain level of both outputs. N1 = 0~100 [Red gain value] GET OUT A RED  Show the current red gain level of both outputs. SET OUT A GREEN N1 ...
  • Page 64 COMMAND Description and Parameters GET AUDIO OUT A MUTE  Show the current mute state of the audio output. SET AUDIO OUT A ROUTE N1  Output the specified audio source. Available values for N1: [HDMI Input 1] [HDMI Input 2] [Window 1] [Window 2] GET AUDIO OUT A ROUTE...
  • Page 65 COMMAND Description and Parameters GET ALL IN EDID  Show the current EDID used by the “All” EDID mode. SET IN N1 EDID N2  Set the EDID to use on the specified input when “Independent” mode is active. N1 = 1~2 [Input port] Available values for N2: [FHD/2CH]...
  • Page 66 COMMAND Description and Parameters SET OUT A TIMING N1  Set the output resolution to use. Available values for N1: [640x480@59] [800x600@60] [1024x768@60] [1280x800@60] [1280x1024@60] [1366x768@60] [1440x900@60] [1600x900@60RB] [1600x1200@60] [1680x1050@60] [1920x1200@60RB] [1920x1200@60] [2560x1600@60RB] [3440x1440@30] [480p59] [480p60] [576p50] [720p50] [720p60] [1080p24] [1080p25] [1080p30] [1080p50]...
  • Page 67 COMMAND Description and Parameters SET OUT A OSD TIMIEOUT N1  Set the OSD Menu’s timeout value (in seconds). Available values for N1: [Timeout disabled] 5~60 [Timeout in seconds] GET OUT A OSD TIMEOUT  Show the current OSD Menu’s timeout value. SET OUT A OSD INFO DISPLAY N1 ...
  • Page 68 COMMAND Description and Parameters SET OUT A OSD BANNER LOCATION N1  Set the OSD banner location. Available values for N1: [Left Top] [Right Top] [Left Button] [Right Button] [Center] GET OUT A OSD BANNER LOCATION  Show the current OSD banner location. SET OUT A OSD BACKGROUND COLOR N1 ...
  • Page 69 COMMAND Description and Parameters SET OUT A OSD TEXT COLOR N1  Set the OSD banner’s text color. Available values for N1: [White] [Blue] GET OUT A OSD TEXT COLOR  Show the current text color of the OSD banner. SET OUT A OSD INFO NOSIGNAL N1 ...
  • Page 70 COMMAND Description and Parameters SET OUT A OSD LOGO VPOSITION N1  Set the vertical position of the graphical logo overlay. N1 = 0~{Max res} [Vertical position] GET OUT A OSD LOGO VPOSITION  Show the current vertical position of the graphical logo overlay. SET OUT A OSD LOGO COLOR KEY N1 ...
  • Page 71 COMMAND Description and Parameters SET OUT A OSD LOGO COLOR B N1  Set the base blue value for the graphical logo overlay’s chroma key. N1 = 0~255 [Base blue value] GET OUT A OSD LOGO COLOR B  Show the current base blue value for the graphical logo overlay’s chroma key.
  • Page 72 COMMAND Description and Parameters GET OSD LOGO COLOR VALUE N1 N2  Show the RGB color of the pixel at the specified cursor position. N1 = 0~{Logo res} [Horizontal position] N2 = 0~{Logo res} [Vertical position] SET OSD LOGO COLOR VALUE TRIGGER ...
  • Page 73 COMMAND Description and Parameters SET STATIC NETMASK N1  Set the unit’s static netmask. N1 = X.X.X.X [X = 0~255, netmask] GET STATIC NETMASK  Show the unit’s static netmask. SET STATIC GATEWAY N1  Set the unit’s static gateway address. N1 = X.X.X.X [X = 0~255, gateway address] GET STATIC GATEWAY...
  • Page 74 COMMAND Description and Parameters SET TELNET LOGIN N1  Enable or disable requiring Telnet login authentication. Available values for N1: [Disabled] [Enabled] GET TELNET LOGIN  Show the current status of the Telnet login authentication requirement. SET TELNET USERNAME N1 ...
  • Page 75 COMMAND Description and Parameters SET PATTERN TYPE N1  Output the specified test pattern or disable the test pattern output. Available values for N1: [Disabled] [White field] [Crosshatch] [Colorbars] [Grayscale] [White window] [Horizontal ramp] [Vertical ramp] [Diagonal lines] [Red field] [Green field] [Blue field] GET PATTERN TYPE...
  • Page 76 COMMAND Description and Parameters GET WINDOW 1 COLOR PROCESS  Show the current state of the 4:4:4 processing setting. SET AUTO SYNC OFF N1  Enable or disable the Auto Sync Off function on the specified output and set the timeout length. Available values for N1: [Always output sync] [5 Seconds]...
  • Page 77 COMMAND Description and Parameters SET SAVE PRESET N1  Save all current routing and window assignments to the specified preset. N1 = 1~5 [Preset number] SET RECALL PRESET N1  Activate the routing and window assignments saved in the specified preset. N1 = 1~5 [Preset number] SET PRESET N1 NAME N2...
  • Page 78 COMMAND Description and Parameters GET MAC ADDR  Show the unit’s MAC address. GET MODEL NAME  Show the unit’s model name. GET MODEL TYPE  Show the unit’s product type. Note: Commands will not be executed unless followed by a carriage return.

  • Page 79: Connection Diagram

    7. CONNECTION DIAGRAM Blu-ray Player Game Console HDMI Inputs 1.5m 60° 60° IR Input & Output BYPASS HDMI IN 1 HDMI IN 2 RS-232 RS-232 CAT5e/6/7 OUT IR OUT IR IN HDMI OUT CONTROL DC 24V Power Supply RS-232 Serial Equipped Computer BLASTER HDMI OUT...

  • Page 80: Specifications

    8. SPECIFICATIONS 8.1 Technical Specifications HDMI Bandwidth 10.2Gbps HDBaseT Bandwidth 10.2Gbps Input Ports 2×HDMI (Type-A) Output Ports 1×HDMI (Type-A) 1×HDBaseT (RJ-45) Pass-through Ports 1×IR Extender (3.5mm) 1×IR Blaster (3.5mm) 1×RS-232 (3-pin Terminal Block) Control Ports 1×RS-232 (3-pin Terminal Block) 1×IP Control (RJ-45) Service Port 1×USB 2.0 (Type A) IR Frequency...

  • Page 81: Video Specifications

    8.2 Video Specifications Input Output Supported Resolutions (Hz) HDMI HDMI HDBT 720×400p@70/85    640×480p@60/72/75/85  720×480i@60    720×480p@60    720×576i@50    720×576p@50    800×600p@56/60/72/75/85  848×480p@60    1024×768p@60/70/75/85 ...
  • Page 82 Input Output Supported Resolutions (Hz) HDMI HDMI HDBT 2560×1440p@60RB    2560×1600p@60RB    2048×1080p@24/25/30    2048×1080p@50/60    3840×2160p@24/25/30    3840×2160p@50/60 (4:2:0)    3840×2160p@24, HDR10    3840×2160p@50/60 (4:2:0),HDR10 ...

  • Page 83: Audio Specifications

    8.3 Audio Specifications 8.3.1 Digital Audio HDMI Input / Output LPCM Max Channels 8 Channels Sampling Rate (kHz) 32, 44.1, 48, 88.2, 96, 176.4, 192 Bitstream Supported Formats Standard & High-Definition HDBaseT Output LPCM Max Channels 8 Channels Sampling Rate (kHz) 32, 44.1, 48, 88.2, 96, 176.4, 192 Bitstream Supported Formats...

  • Page 84: Cable Specifications

    8.4 Cable Specifications 1080p 4K30 4K60 (4:4:4) (4:4:4) Cable Length 8-bit 12-bit 8-bit 8-bit High Speed HDMI Cable HDMI Input HDMI Output  Ethernet Cable Cat.5e/6  Cat.6A/7  Bandwidth Category Examples: • 1080p (FHD Video) - Up to 1080p@60Hz, 12-bit color - Data rates lower than 5.3Gbps or below 225MHz TMDS clock •...

  • Page 85: Hdbaset Features

    8.5 HDBaseT Features HDBaseT Feature Set Transmitter Video & Audio Extension Supported LAN Extension Unsupported Send power to Receiver Supported (PoH) Accept power from Receiver Unsupported IR Extension Supported RS-232 Extension Supported USB 2.0 Extension Unsupported...

  • Page 86: Acronyms

    9. ACRONYMS ACRONYM COMPLETE TERM ASCII American Standard Code for Information Interchange Cat.5e Enhanced Category 5 cable Cat.6 Category 6 cable Cat.6A Augmented Category 6 cable Cat.7 Category 7 cable Command-Line Interface COAX Coaxial Communication DHCP Dynamic Host Configuration Protocol Digital Visual Interface EDID Extended Display Identification Data...
