Summary of Contents for CYP CED-1M

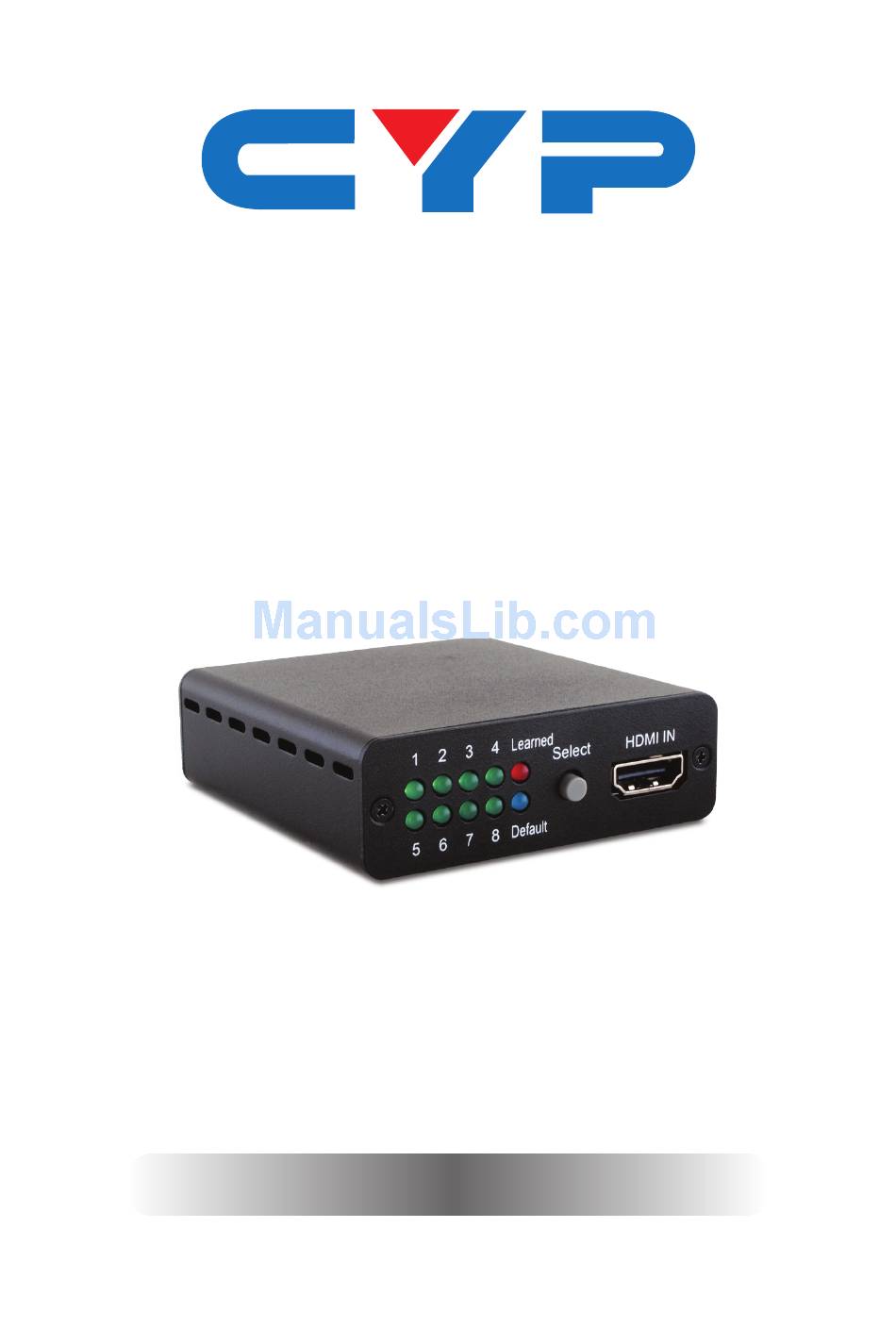

- Page 1 CED-1M HDMI EDID Emulator Operation Manual Operation Manual...
-
Page 3: Copyright Notice
DISCLAIMERS The information in this manual has been carefully checked and is believed to be accurate. Cypress Technology assumes no responsibility for any infringements of patents or other rights of third parties which may result from its use. Cypress Technology assumes no responsibility for any inaccuracies that may be contained in this document. -
Page 4: Safety Precautions
SAFETY PRECAUTIONS Please read all instructions before attempting to unpack, install or operate this equipment and before connecting the power supply. Please keep the following in mind as you unpack and install this equipment: • Always follow basic safety precautions to reduce the risk of fire, electrical shock and injury to persons. -
Page 5: Table Of Contents
CONTENTS 1. Introduction ..........1 2. Applications ........... 1 3. Package Contents ........ 1 4. System Requirements ......1 5. Features ..........2 6. Operation Controls and Functions ..3 6.1 Front Panel ........3 6.2 Rear Panel .........4 6.3 EDID Learning Procedure ....5 6.4 Default EDID Settings .......6 6.5 EDID Application Installation ..7 6.6 Using the EDID Application ...12... -
Page 6: Introduction
1. INTRODUCTION The HDMI EDID Emulator is designed to allow the adjustment of HDMI/DVI EDID information that is provided to a source device by a connected display so that it can output the correct video/audio signal. Aiming to simplify the technical complications involved in video/audio system integration, home theater installation, video/ audio equipment testing and experimentation, the unit’s learning function allows the user to Read and Write the video/audio EDID to... -
Page 7: Features
5. FEATURES • HDMI and DVI 1.0 compliant • Supports the following HDMI features: - High video bandwidth up to 300 MHz/9 Gbps - Resolutions up to 1080p@60 Hz and 4K×2K@24/25/30 Hz - 12-bit Deep Color - LPCM 7.1CH, Dolby TrueHD, Dolby Digital Plus and DTS-HD Master Audio (Sampling rates from 32 kHz to 192 kHz) •... -
Page 8: Operation Controls And Functions

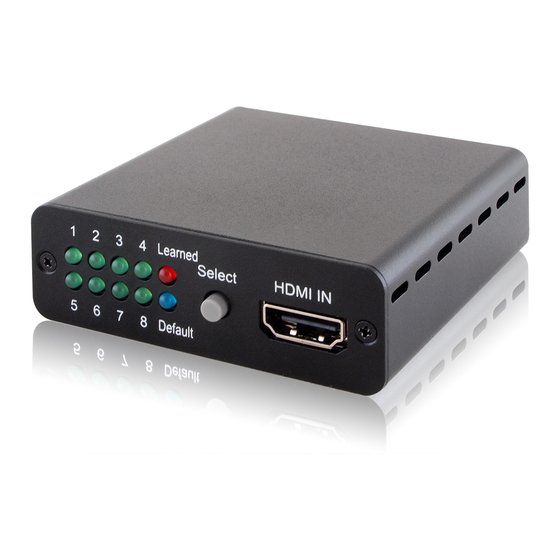

6. OPERATION CONTROLS AND FUNCTIONS 6.1 Front Panel 4 Learned Select HDMI IN 8 Default 1~8 LEDs: When in 'Learned' or 'Default' mode, each of these LEDs indicates a different EDID setting (1 to 8). Repeatedly press the 'Select' button to switch between settings, the LED will illuminate to indicate the current selected settings. -
Page 9: Rear Panel
6.2 Rear Panel EDID HDMI OUT Bypass STATUS Emulator HDMI OUT: Connect to an HDMI equipped TV/display. USB: Connect the Mini-USB cable to an active USB device to power the system. It can also be powered from a device that has HDMI connection that supplies power. -
Page 10: Edid Learning Procedure
6.3 EDID Learning Procedure To Read the EDID: Connect a TV/display to the HDMI output for EDID reading. Set the 'Emulator/Bypass (2)' switch to 'Emulator' first then set the 'Rd/Wr (1)' switch to the 'Rd. (Read)' position. Press the 'Select' button for 3 seconds to put the unit into 'Learned' mode. -
Page 11: Default Edid Settings
6.4 Default EDID Settings LED NO. VIDEO AUDIO 1080p@60 Hz, 8-bit LPCM 2CH 1080p@60 Hz, 12-bit Deep LPCM 2CH Color 3D or 1080p@60 Hz, 12-bit LPCM 2CH Deep Color 4K×2K@24/25/30 Hz LPCM 2CH 1080p@60 Hz, 8-bit LPCM 5.1CH 3D or 1080p@60 Hz,12-bit Dolby TrueHD or DTS-HD Deep Color Master Audio... -
Page 12: Edid Application Installation
6.5 EDID Application Installation The following section lists the procedures to follow when installing the EDID application on your Windows PC. Please follow the steps outlined below to successfully install the software. The application can be downloaded from the product page on the Cypress website (http://www.cypress.com.tw) and selecting the 'Downloads' tab. - Page 13 Once the software has extracted, enter the folder and double click on the 'setup' application icon (highlighted below) to begin the installation process. The installation wizard will appear, click 'Next' to continue the installation.
- Page 14 Click on 'I accept …' and then 'Next' to accept the license terms to continue the installation. Insert the user name and set the access rights for this application as required and click on 'Next' to continue.
- Page 15 Choose a location to install the application, default is 'C:\Program Files\CYP\CED-1M'. Click on 'Next' to continue. Click on 'Install' to confirm the user name and save location.
- Page 16 Click on 'Finish' to complete the installation. An icon will appear on the desktop to indicate the successful installation of the application.
-
Page 17: Using The Edid Application
Ensure that the HDMI EDID Emulator device is connected to the PC and that the driver has installed successfully before double clicking on the 'CED-1M' icon to start using the application. The EDID Application includes EDID Learning, Reading, Writing and... - Page 18 Click on 'File' to save the Learned and Default EDID settings (up to 8 sets each). Click on the 'Learned/Default' button to switch between modes. Click on 'Extended EDID' with File’s 'Open .text file' to save the contents of the Learned EDID’s amended contents.
- Page 19 Click on 'Parsing' to display the contents of EDID Block 0 and 1.
-
Page 20: Connection Diagram
7. CONNECTION DIAGRAM Blu-ray Player HDMI Input 4 Learned Select HDMI IN 8 Default EDID HDMI OUT Bypass STATUS Emulator HDMI Output USB Power 3D TV/Display Note: In this example the unit is powered by a USB port on the TV/Display. It can also be powered by a compatible device that can provide power over HDMI. -
Page 21: Specifications
8. SPECIFICATIONS Video Bandwidth 300 Mbps/9 Gbps Input Ports 1×HDMI, 1×Mini-USB (Power only) Output Port 1×HDMI HDMI Input Cable 10 m@1080p/12-bit, 5 m@4K×2K Distance HDMI Output Cable 10 m@1080p/12-bit, 5 m@4K×2K Distance Resolutions Up to 4K×2K@24/25/30 Hz USB Power 5 V/500 mA Dimensions 71 mm(W)×65 mm(D)×23 mm(H)/Exc. -
Page 22: Acronyms
9. ACRONYMS ACRONYM COMPLETE TERM 4K×2K Ultra HD (3840×2160/4096×2160) Consumer Electronic Control EDID Extended Display Identification Data HDMI High-Definition Multimedia Interface... - Page 24 CYPRESS TECHNOLOGY CO., LTD Home page: http://www.cypress.com.tw MPM-CED1M...
