Summary of Contents for CYP CPLUS-V3H1H

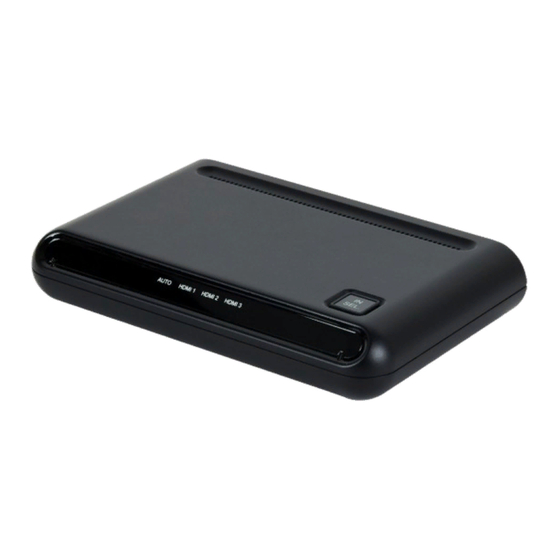

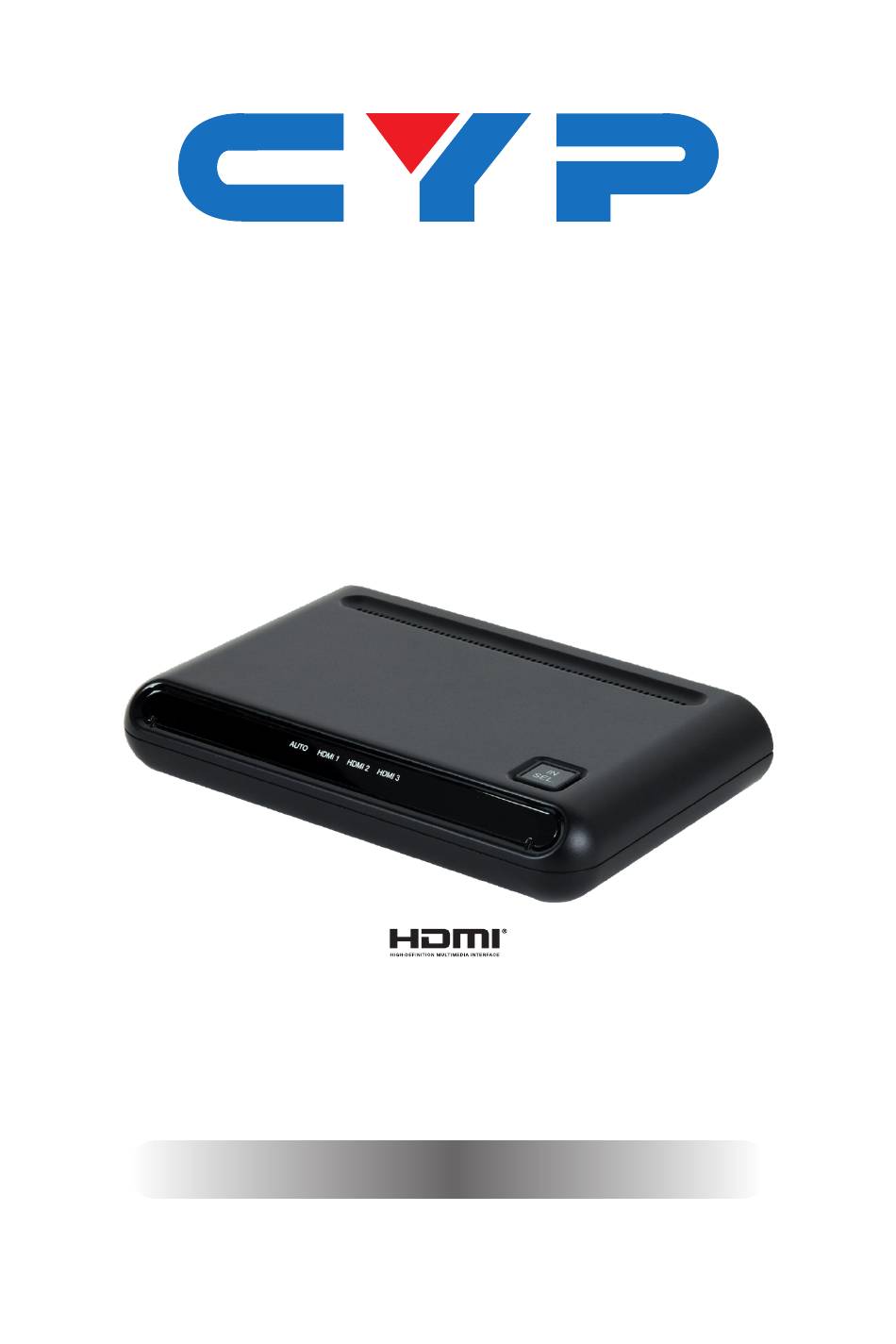

- Page 1 CPLUS-V3H1H 3x1 HDMI Switch with Auto Source Switching Operation Manual Operation Manual...
- Page 3 DISCLAIMERS The information in this manual has been carefully checked and is believed to be accurate. Cypress Technology assumes no responsibility for any infringements of patents or other rights of third parties which may result from its use. Cypress Technology assumes no responsibility for any inaccuracies that may be contained in this document.
- Page 4 SAFETY PRECAUTIONS Please read all instructions before attempting to unpack, install or operate this equipment and before connecting the power supply. Please keep the following in mind as you unpack and install this equipment: • Always follow basic safety precautions to reduce the risk of fire, electrical shock and injury to persons.
-
Page 5: Table Of Contents
CONTENTS 1. Introduction ............1 2. Applications .............1 3. Package Contents ..........1 4. System Requirements ........1 5. Features ............2 6. Operation Controls and Functions ....3 6.1 Top Panel ........... 3 6.2 Rear Panel ..........4 6.3 RS-232 Pinout and Defaults ...... 5 6.4 Serial Commands ........ -
Page 6: Introduction
1. INTRODUCTION This 3x1 4K UHD HDMI switch features three HDMI inputs and one HDMI output with manual or automatic source switching. Every input and output supports full bandwidth 4K@60Hz (4:4:4, 8-bit) HDMI 2.0 with HDCP 2.2 signals. Automatic source management allows for hands- free switching based on input signal and hot plug detection with a “Last Memory”... -
Page 7: Features
5. FEATURES • HDMI 2.0 and DVI 1.0 compatible • HDCP 1.x and HDCP 2.2 compliant • 3 HDMI inputs, 1 HDMI output • Supports up to 4K UHD (18Gbps, 4K@50/60Hz 4:4:4, 8-bit) video input and output • Supports Deep Color input and output up to 12-bit •... -
Page 8: Operation Controls And Functions
6. OPERATION CONTROLS AND FUNCTIONS 6.1 Top Panel SEL. AUTO HDMI 1 HDMI 2 HDMI 3 AUTO LED: This LED will illuminate when the auto switch function is active. While active, the input source will be selected based on the most recently connected live source. HDMI 1~3 LEDs: The LED of the currently selected input will illuminate green. -
Page 9: Rear Panel
6.2 Rear Panel DC 5V HDMI OUT HDMI 3 HDMI 2 HDMI 1 RS-232 HDMI OUT Port: Connect to an HDMI TV, monitor, or amplifier for digital video and audio output. HDMI 1~3 Ports: Connect to HDMI source equipment such as media players, game consoles or set-top boxes. -
Page 10: Rs-232 Pinout And Defaults
6.3 RS-232 Pinout and Defaults Serial Port Default Settings Baud Rate 19200 Data Bits Parity Bits None Stop Bits Flow Control None 3.5mm to DE-9 Adapter Cable 6.4 Serial Commands COMMAND Description and Parameters ? Show the full command list. help... - Page 11 COMMAND Description and Parameters get model type Show the unit's product type. set out A route N1 Route the specified input to the HDMI output. N1 = 1~3 [HDMI input number] get out A route Show which input is currently routed to the HDMI output. set out auto mode N1...
- Page 12 COMMAND Description and Parameters [Internal FHD, multi-channel audio] [Internal UHD, 2 channel audio] [Internal UHD, multi-channel audio] [Internal UHD+, 2 channel audio] [Internal UHD+, multi-channel audio] [User EDID 1] [User EDID 2] [User EDID 3] [Copy output’s EDID] get in N1 edid Show the EDID currently being used on the specified input.
-
Page 13: Connection Diagram
7. CONNECTION DIAGRAM Game Console Blu-ray Player PC/Laptop HDMI Input DC 5V HDMI OUT HDMI 3 HDMI 2 HDMI 1 RS-232 HDMI Output 4K TV Monitor Projector... -
Page 14: Specifications
8. SPECIFICATIONS 8.1 Technical Specifications HDMI Bandwidth 18Gbps Input Ports 3×HDMI (Type-A) Output Ports 1×HDMI (Type-A) Control Ports 1×RS-232 (3.5mm) Service/Power Port 1×USB 2.0 (Micro B) IR Frequency 38kHz Baud Rate 19200 Power Supply (Optional) 5V/1A DC (US/EU standards, CE/FCC/UL certified) ESD Protection (HBM) ±8kV (Air Discharge) ±4kV (Contact Discharge) -
Page 15: Video Specifications
8.2 Video Specifications Input Output Supported Resolutions (Hz) HDMI HDMI 720×400p@70/85 640×480p@60/72/75/85 720×480i@60 720×480p@60 720×576i@50 720×576p@50 800×600p@56/60/72/75/85 848×480p@60 1024×768p@60/70/75/85 1152×864p@75 1280×720p@50/60 ... - Page 16 Input Output Supported Resolutions (Hz) HDMI HDMI 1920×1200p@60RB 2560×1440p@60RB 2560×1600p@60RB 2048×1080p@24/25/30 2048×1080p@50/60 3840×2160p@24/25/30 3840×2160p@50/60 (4:2:0) 3840×2160p@24, HDR10 3840×2160p@50/60 (4:2:0), HDR10 3840×2160p@50/60 ...
-
Page 17: Audio Specifications
8.3 Audio Specifications 8.3.1 Digital Audio HDMI Input/Output LPCM Max Channels 8 Channels Sampling Rate (kHz) 32, 44.1, 48, 88.2, 96, 176.4, 192 Bitstream Supported Formats Standard & High-Definition 8.4 Cable Specifications 1080p 4K30 4K60 (4:4:4) (4:4:4) Cable Length 8-bit 12-bit 8-bit 8-bit... -
Page 18: Acronyms
9. ACRONYMS ACRONYM COMPLETE TERM ASCII American Standard Code for Information Interchange Audio/Video Consumer Electronics Control Command-Line Interface Digital Visual Interface EDID Extended Display Identification Data HDCP High-bandwidth Digital Content Protection HDMI High-Definition Multimedia Interface High Dynamic Range HDTV High-Definition Television Light-Emitting Diode LPCM Linear Pulse-Code Modulation... - Page 20 CYPRESS TECHNOLOGY CO., LTD. www.cypress.com.tw...
