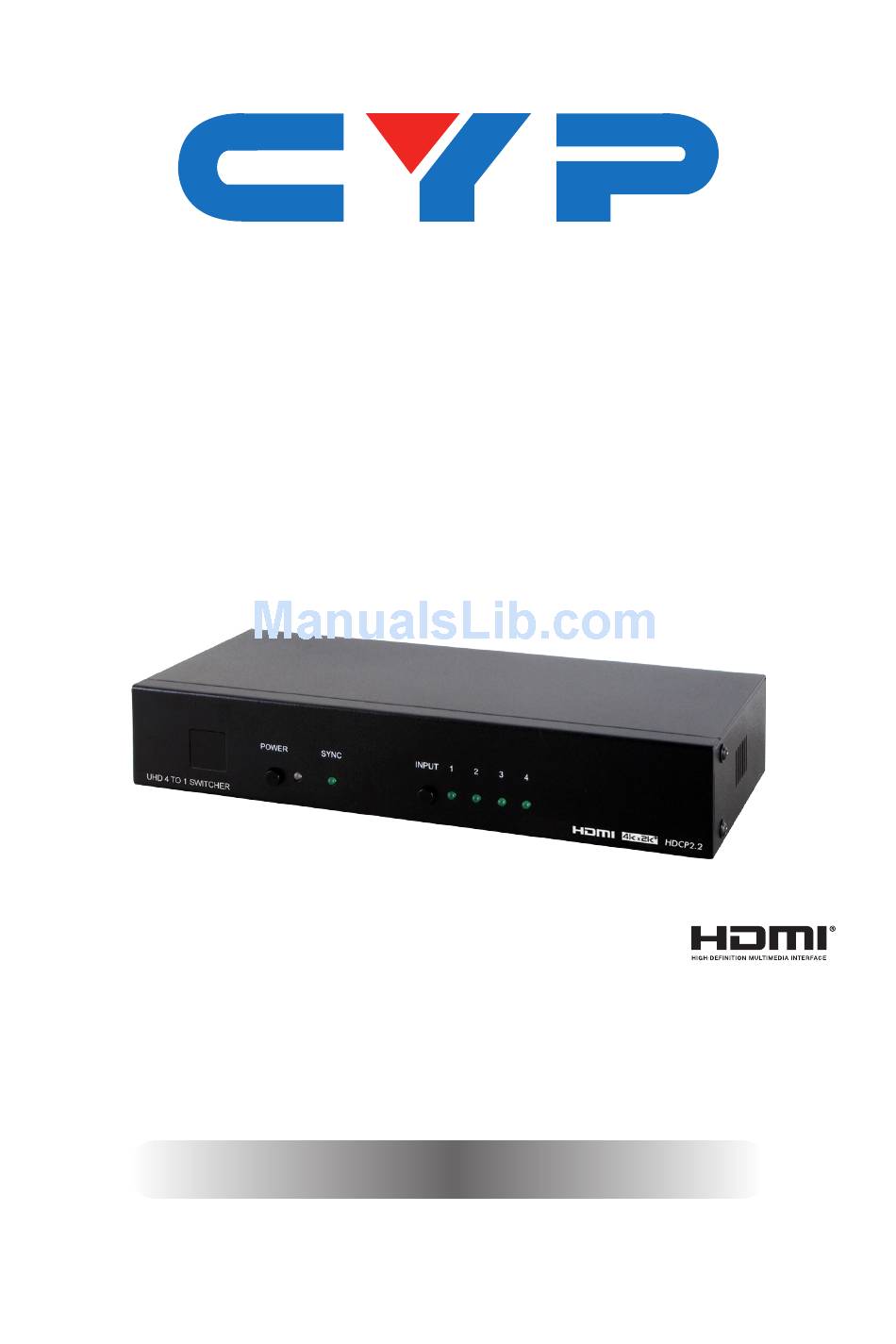

- Page 1 CPLUS-V4H1HP 4K UHD+ 4×1 HDMI Switcher with IP Control Operation Manual Operation Manual...
-
Page 3: Copyright Notice
DISCLAIMERS The information in this manual has been carefully checked and is believed to be accurate. Cypress Technology assumes no responsibility for any infringements of patents or other rights of third parties which may result from its use. Cypress Technology assumes no responsibility for any inaccuracies that may be contained in this document. -
Page 4: Revision History
SAFETY PRECAUTIONS Please read all instructions before attempting to unpack, install or operate this equipment and before connecting the power supply. Please keep the following in mind as you unpack and install this equipment: • Always follow basic safety precautions to reduce the risk of fire, electrical shock and injury to persons. - Page 5 CONTENTS 1. Introduction ............1 2. Applications .............1 3. Package Contents ..........1 4. System Requirements ........1 5. Features ............2 6. Operation Controls and Functions ....2 6.1 Front Panel ..........2 6.2 Rear Panel ..........3 6.3 Remote Control ......... 3 6.4 IR Cable Pin Assignments ......4 6.5 RS-232 Protocol ..........
-
Page 6: Introduction
1. INTRODUCTION This 4×1 HDMI switcher is the most advanced HDMI solution for true Ultra High-Definition signal routing. This unit allows for the switching of any of four 18Gbps HDMI input signals to a single 18Gbps HDMI display device. Resolutions up to 4096×2160@60Hz (4:4:4), 16-bit Deep Color, HDR (High Dynamic Range), HD audio as well as other features defined by the HDMI 2.0 specification are supported. -
Page 7: Features
5. FEATURES • HDMI 2.0 with 18Gbps 4K UHD support, single-link DVI 1.0 compliant • HDCP 2.2 and 1.4 compliant • 4 HDMI inputs and 1 HDMI output • Supports HDTV resolutions up to 4K UHD (3840×2160@50/60Hz & 4096×2160@50/60Hz) • Supports data rates up to 18Gbps and Deep Color (16-bit) up to 1080p •... -
Page 8: Rear Panel
INPUT: Press this button to sequentially switch through the 4 available inputs. INPUT LED 1~4: These LEDs will illuminate GREEN to indicate which of the 4 sources are currently selected. 6.2 Rear Panel HDMI IN HDMI OUT SERVICE CONTROL RS-232 IR IN DC 5V HDMI IN 1~4: Connect to HDMI source equipment such as a media... -
Page 9: Ir Cable Pin Assignments
6.4 IR Cable Pin Assignments IR Extender IR Signal Power Ground 6.5 RS-232 Protocol UNIT REMOTE SYSTEM Definition Definition ► ◄ Baud Rates: 115200bps Data Bits: 8 Parity Bits: None Stop Bit: 1 Flow Control: None... -
Page 10: Rs-232 And Telnet Commands
6.6 RS-232 and Telnet Commands COMMAND DESCRIPTION AND PARAMETERS HELP Displays all available commands. Displays all available commands. Turn unit’s power off. (Stand-by mode) Turn unit’s power on. INNAME N1 N2 Set the name of input N1 to N2. N1 = 1~4 [Input number] N2 = {name} [8 characters max] INNAME N1 Show the input name of N1. - Page 11 COMMAND DESCRIPTION AND PARAMETERS EDIDMODE N1 Set the EDID mode. Available values for N1: 0 [Appoint] 1 [All] EDIDMODE Show the current EDID mode setting. EDIDALL N1 Set the EDID to use in “All” mode. Available values for N1: 0 [SINK] 1 [720P] 2 [1080P] 3 [4K_3G]...
- Page 12 COMMAND DESCRIPTION AND PARAMETERS AUTO_SWITCH N1 Enable or disable auto switching mode. Available values for N1: 0 [Disabled] 1 [Enabled] AUTO_SWITCH Show current auto switching mode status. FADEFAULT Reset the unit to the factory defaults. REBOOT Reboot the unit. Show the unit’s current firmware version. IPCONFIG Show the current IP configuration.
-
Page 13: Telnet Control
6.7 Telnet Control Before attempting to use Telnet control, please ensure that both the unit and the PC/Laptop are connected to the same active networks. To access Telnet in Windows 7, click on the “Start” menu and type “cmd” in the search field, then press “Enter”. Under Windows XP go to the “Start”... -
Page 14: Webgui Control
6.8 WebGUI Control 6.8.1 Device Discovery APP Please obtain the “Device Discovery” software from your authorized dealer and save it in a directory where you can easily find it. Connect the unit and your PC/Laptop to the same active network and execute the “Device Discovery”... -
Page 15: Webgui Control
6.8.2 WebGUI Control Page All functions, including power, input selection, EDID management, HDCP management, port naming, Ethernet settings, and reset/ firmware functions, are presented on a single web page to allow for simple and intuitive operation. The individual functions will be explained in the following sections. - Page 16 3. EDID This tab controls EDID management for the unit. All inputs can share the same assigned EDID, or each input can have a discrete EDID assigned to it. • ALL: Selecting the “ALL” mode will send the selected EDID to all inputs.
- Page 17 5. Naming This tab allows for the renaming of the four HDMI input ports and the HDMI output port. Please click the “SAVE” button to store the changes. 6. Network Setting This tab provides control over the unit’s network settings. The IP mode can be set to “DHCP”...
- Page 18 8. Status This tab displays the currently selected HDMI input source and the unit’s firmware version as well as allowing for resetting or rebooting the unit. • RESET: To perform a factory reset on the unit, please click the “RESET” button.
-
Page 19: Connection Diagram
7. CONNECTION DIAGRAM Blu-ray Player Game Console Set-top Box Satellite Receiver HDMI Power Inputs Supply HDMI IN HDMI OUT SERVICE CONTROL RS-232 IR IN DC 5V RS-232 RS-232 Control System HDMI Output Input Connection Internet 60° Connected Router POWER INPUT CR-72 Remote UHDTV... -
Page 20: Specifications
8. SPECIFICATIONS 8.1 Technical Specifications Video Bandwidth 600MHz/18Gbps Input Ports 4×HDMI Output Ports 1×HDMI Control Interfaces 1×IR Extender (3.5mm) 1×RS-232 (9-pin D-sub) 1×IP Control (RJ45) Supported Resolutions 480i@60Hz - 4K@60Hz (4:4:4, 8-bit) VGA@60Hz - WUXGA@60Hz (RB) HDMI Cable Length 10m (1080p@60Hz, 12-bit) 5m (4K@60Hz, 4:4:4, 8-bit) IR Frequency 30 - 50kHz (30 - 60kHz under ideal... -
Page 21: Video Specifications
Relative Humidity 20 - 90% RH (Non-condensing) Power Consumption 5.83W 8.2 Video Specifications Supported PC Resolutions (Hz) Input Output 640×480@60/72/75 800×600@60/72/75 1024×768@60/70/75 1280×768@60 1280×1024@60 1360×768@60 1600×1200@60 1920×1200@60 (RB) ... -
Page 22: Acronyms
9. ACRONYMS ACRONYM COMPLETE TERM Command Line Interface Digital Visual Interface EDID Extended Display Identification Data Graphical User Interface High-Definition HDCP High-bandwidth Digital Content Protection HDMI High-Definition Multimedia Interface High Dynamic Range HTTP HyperText Transfer Protocol Internet Protocol Infrared Local Area Network LPCM Linear Pulse-Code Modulation Personal Computer... - Page 24 CYPRESS TECHNOLOGY CO., LTD. www.cypress.com.tw...
