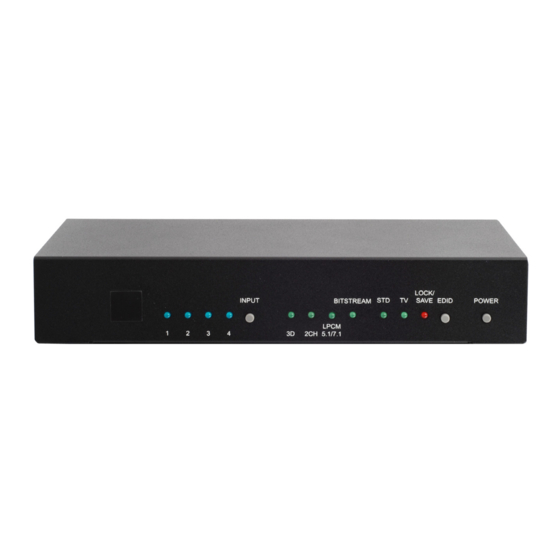

- Page 1 CPRO-3D42S HDMI 4 by 2 v1.4 Switcher with HEAC Operation Manual Draft Manual CPRO-3D42S...
-
Page 2: Copyright Notice
Disclaimers The information in this manual has been carefully checked and is believed to be accurate. Cypress Technology assumes no responsibility for any infringements of patents or other rights of third parties which may result from its use. Cypress Technology assumes no responsibility for any inaccuracies that may be contained in this document. -
Page 3: Safety Precautions
Safety Precautions Please read all instructions before attempting to unpack or install or operate this equipment, and before connecting the power supply. Please keep the following in mind as you unpack and install this equipment: Always follow basic safety precautions to reduce the risk of fire, electrical shock and injury to persons. -
Page 4: Table Of Contents
Table of Contents 1. Introduction .................. 1 2. Applications ................. 1 3. Package Contents ..............1 4. System Requirements ..............1 5. Features ..................2 6. Specifications ................2 7. Operation Controls and Functions ..........3 Front Panel ..............3 Rear Panel ..............4 8. Remote Control................ -
Page 5: Introduction
1. Introduction This is a high performance four input & two outputs HDMITM Switcher supports, the output ports support Audio Return Channel (ARC) and HDMI Ethernet Channel (HEC) follow by HDMI v1.4 specification. The ARC provides an S/ PDIF link from and HDMITM sink and output through ARC port to AVR to get true audio from the sink. -
Page 6: Features
5. Features • Support multiplexed HDMI 4-input and 2-output • Two output ports support Ethernet Channel (HEC) and Audio Return Channel (ARC) follow by HDMI v1.4 specification • HDMI 1.4 support: √ Audio Return Channel (ARC) √ 3D √ CEC 1.4 √... -
Page 7: Operation Controls And Functions
7. Operation Controls and Functions The following sections describe the hardware components of the unit. 7.1 Front Panel . IR Remote Control Sensor. . Audio/3D content indicator: The system will automatically detect incoming audio/video signal and the Green LEDs will illuminate accordingly. . -
Page 8: Rear Panel
7.2 Rear Panel . RS-232: This slot is for RS-232 control signal sending and is for service only. . HDMI 1~2out/ARC 1~2/Ethernet 1~2: Connect Ethernet and Audio Return Channel to capabilities of sink, The sink will pass the Ethernet and Audio signal via HDMI input to HDMI output port individually, each HDMI will separate the Ethernet and audio and send it out from ARC and Ethernet ports. -
Page 9: Remote Control
① Power button: Press to switch On the device, press it again to set the device in standby mode. ② 1~4: Press the desire input button to select the input source. 9. RS-232 Protocol 9.1 Pin Definition CPRO-3D42S Remote Control Console Definition Definition ► ◄... -
Page 10: Connection And Installation
10. Connection and Installation Blu-Ray Blu-Ray HDTV AVR1 HDTV AVR1 INTERNET... - Page 11 Acronyms Acronym Complete Term Audio Return Channel Consumer Electronics Control EDID Extended Display Identification Data HDMI Ethernet Channel HDCP High-bandwidth Digital content protection HEAC HDMI Ethernet Audio Channel HDMI High-Definition Multimedia Interface...
- Page 12 CYPRESS TECHNOLOGY CO., LTD. Home page: http://www.cypress.com.tw MPM-CPRO3D42S...
