Summary of Contents for CYP CPRO-3D41GAME

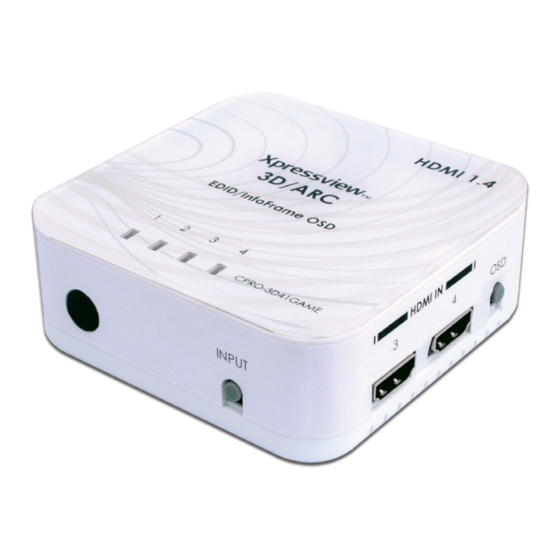

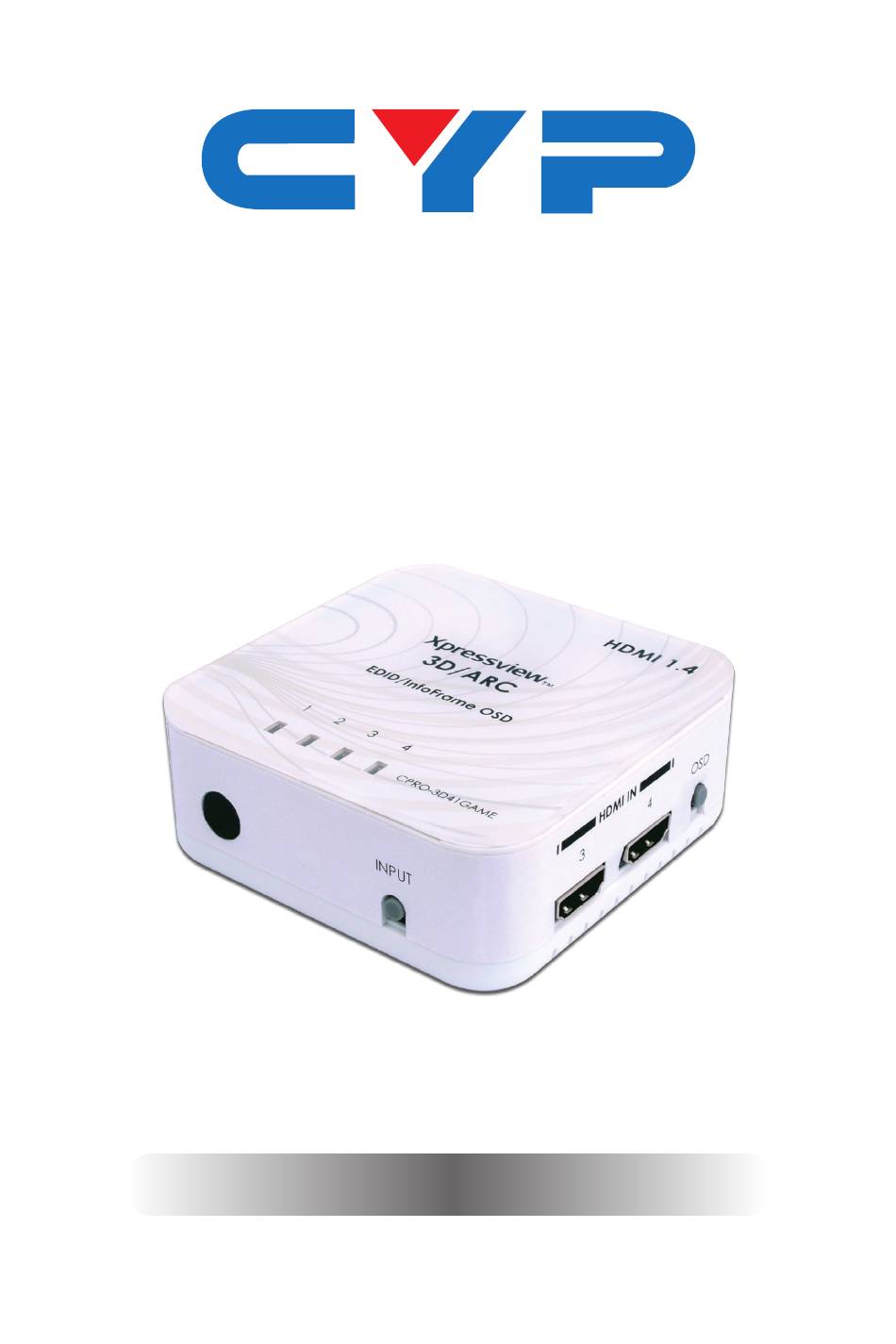

- Page 1 CPRO-3D41GAME 4×1 HDMI Switcher Operation Manual Operation Manual...
- Page 3 DISCLAIMERS The information in this manual has been carefully checked and is believed to be accurate. Cypress Technology assumes no responsibility for any infringements of patents or other rights of third parties which may result from its use. Cypress Technology assumes no responsibility for any inaccuracies that may be contained in this document.
- Page 4 SAFETY PRECAUTIONS Please read all instructions before attempting to unpack, install or operate this equipment and before connecting the power supply. Please keep the following in mind as you unpack and install this equipment: • Always follow basic safety precautions to reduce the risk of fire, electrical shock and injury to persons.
-
Page 5: Table Of Contents
CONTENTS 1. Introduction ..........1 2. Applications ........... 1 3. Package Contents ........ 1 4. System Requirements ......1 5. Features ..........2 6. Operation Controls and Functions ..3 6.1 Top Panel ...........3 6.2 Front Panel .........3 6.3 Left Panel ...........4 6.4 Right Panel .........4 6.5 Rear Panel .........5 6.6 Remote Control .........5... -
Page 6: Introduction
1. INTRODUCTION This 4×1 HDMI Switcher is a high performance four-input & one-output High-Definition Multimedia Interface (HDMI) switcher with Audio Channel Return (ARC) and HDCP repeater functions along with fast switching between HDMI input ports. The system supports all 3D TV formats in addition to all HDTV formats up to 1080p 12-bit Deep Color. -
Page 7: Features
5. FEATURES • Support multiplexed HDMI 4-input and 1-output • HDMI, HDCP 1.4 and CEC1.4 compliant • HDMI support: - Audio Return Channel (ARC) - 3D TV support - CEC1.4 • Fast switching on all HDMI input ports • Character and icon based On-Screen Display (OSD) - System information for Software version - Sink EDID - Source info frame... -
Page 8: Operation Controls And Functions
6. OPERATION CONTROLS AND FUNCTIONS 6.1 Top Panel 3D/ARC EDID/InfoFrame OSD CPRO-3D41GAME INPUT LED 1/2/3/4 Indicators: These LEDs will light to indicate the currently selected input. 6.2 Front Panel INPUT IR Remote Control Sensor: Receives IR signals from the supplied remote control. -
Page 9: Left Panel
6.3 Left Panel HDMI IN USB 5V USB 5V: Connect the USB power port to any powered USB port with a Mini-B to A USB cable or a USB Mini-B to AC adaptor. HDMI IN 1/2: Connect to HDMI source devices such as a games console with HDMI cables or a DVI source device such as a PC with DVI to HDMI cables. -
Page 10: Rear Panel
6.5 Rear Panel DC 5V COAX OUT OUTPUT COAX OUT: Connect to the co-axial input on an AV Receiver for digital audio output. When the HDMI input signal has the Audio Return Channel (ARC) activated, the audio from the HDTV will be output from the co-axial output. -
Page 11: Osd Menu
7. OSD MENU 7.1 Entering the Menu - Press the OSD button on the device or the MENU key on the remote control to bring up the OSD on the display. - Press the Up or Down [p/q] keys to highlight an option. - Press the Left or Right [t/u] keys to select the option. -
Page 12: Sink Edid
7.3 Sink EDID - Press the Up or Down [p/q] keys to highlight the 'Sink EDID' option. - Press the Left or Right [t/u] keys to select the option. - Press the 'Enter' key to confirm/exit the selection. - Press the 'MENU' key to exit the menu. OPTION DESCRIPTION Block Data... -
Page 13: Audio Return
7.6 Audio Return - Press the Up or Down [p/q] keys to highlight the 'Audio Return' option. - Press the Left or Right [t/u] keys to select the option. - Press the 'Enter' key to confirm/exit the selection. - Press the 'MENU' key to exit the menu. OPTION DESCRIPTION Audio Return... -
Page 14: Connection Diagram
8. CONNECTION DIAGRAM PC or Laptop DVD or Blu-ray Player Set-top Box Games Console HDMI Input HDMI Input HDMI Input HDMI Input Power Supply Coaxial Digital Audio Output Audio Return Channel HDMI Output (ARC*) AV Receiver HDTV *ARC Equipped HDMI Connection Only... -
Page 15: Specifications
9. SPECIFICATIONS Frequency Bandwidth 2.25 Gbps Input Ports 4×HDMI Female ports Output Port 1×HDMI Female port HDMI Audio Output PCM 2CH, 5.1CH, 7.1CH, Dolby 5.1, DTS5.1, Dolby Digital Plus, Dolby TrueHD, DTS-HD HDMI Cable In 1080p 8-bit (10m), 12-bit (10m) HDMI Cable Out 1080p 8-bit (15m), 12-bit (15m) Resolution Support... - Page 18 CYPRESS TECHNOLOGY CO., LTD Home page: http://www.cypress.com.tw...
