- Page 1 CPRO-41W 4 by 1 HDMI Switcher with Audio Return Channel Operation Manual CPRO-41W...
-
Page 2: Copyright Notice
Disclaimers The information in this manual has been carefully checked and is believed to be accurate. Cypress Technology assumes no responsibility for any infringements of patents or other rights of third parties which may result from its use. Cypress Technology assumes no responsibility for any inaccuracies that may be contained in this document. -
Page 3: Safety Precautions
Safety Precautions Please read all instructions before attempting to unpack or install or operate this equipment, and before connecting the power supply. Please keep the following in mind as you unpack and install this equipment: Always follow basic safety precautions to reduce the risk of fire, electrical shock and injury to persons. -
Page 4: Table Of Contents
Table of Contents Introduction ................. 1 Applications ................1 Package Contents ..............1 System Requirements ..............1 Features ..................2 Specifications ................3 Operation Controls and Functions ..........4 Front Panel ..............4 Site Panel ..............4 Top Panel ..............5 Remote Control ................ -
Page 5: Introduction

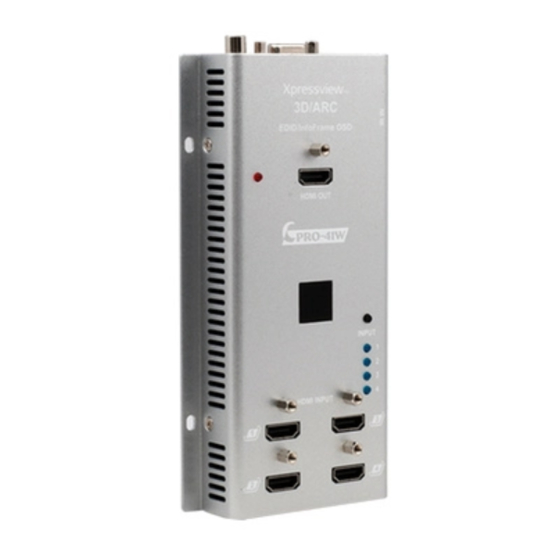

1. Introduction This is a high performance four-input & one-output HDMI switcher with digital audio inputs and outputs. It supports an HDCP repeater function and fast switching between any of the four HDMI input ports. The system supports all 3D TV formats in addition to all HDTV formats up to 1080p 12-bit Deep Color. Furthermore, the remote control allows every user to easily control selection of sources and its wall mounted design, the installation is an easy and pain free process. -
Page 6: Features
5. Features Support multiplexed HDMI 4-input and 1-output Supports HDMI ARC (Audio Return Channel) and CEC (Consumer Electronic Channel) features Supports High-bandwidth Digital Content Protection (HDCP) and HDMI 3D signal Fast switching on all HDMI input ports ... -
Page 7: Specifications
6. Specifications Frequency Bandwidth 2.25Gbps Input Ports 4 x HDMI Female ports Output port 1 x HDMI Female port HDMI Output Resolution 480i ~1080p 50/60, 1080p24, VGA~WUXGA HDMI Audio Output PCM2, 5.1, 7.1CH, Dolby 5.1, DTS5.1, DD+, D-TrueHD, DTS-HD HDMI Cable In 1080p 8-bit (10M), 12-bit (10M) HDMI Cable Out 1080p 8-bit (15M), 12-bit (15M) -
Page 8: Operation Controls And Functions
7. Operation Controls and Functions 7.1 Front Panel 7.2 Site Panel ⑤ ⑥ ① ② ③ ④ HDMI OUTPUT: This slot is where you connect an HDTV or HD display that supports or doesn’t support 3D signals for displaying an input signal with a HDMI cable. -
Page 9: Top Panel
Note A. This system was tested with 24AWG cables if using cables of another type, the performance of this system may vary. B. Cable distance tested with a PS3 & 40” Samsung LED LCD TV. C. Figures provided in this manual are for reference only, actual figures may depend on the source and display used along with the cables specifications. -
Page 10: Remote Control
8. Remote Control ① MENU: Press to enter into menu selection, an OSD MENU ENTER will appear from the display. ① ② ② Enter: Press to confirm the selection. ③ 1, 2, 3, 4: Press to select input port. ④ pqtu: Use these buttons to select/adjust OSD menu’s object. -
Page 11: Commands
9.2 Commands (case-insensitive) Command Code Response Description s port 1 >Select Input Port1 Select Input Port1 s port 2 >Select Input Port2 Select Input Port2 s port 3 >Select Input Port3 Select Input Port3 s port 4 >Select Input Port4 Select Input Port4 OFF : No Display On-Screen s menu 0... -
Page 12: Osd Menu
10. OSD Menu Press the MENU button from the remote control to bring up the OSD on the display. Press [p/q] to highlight an option Press [t/ u] to select the option Press [Enter] to confirm/exit the selection 10.1 System Info Press [p/q] to highlight an option Press [Enter] to check the input/output device information and software version. -
Page 13: Source Infoframe
10.3 Source Infoframe Press [p/q] to highlight an option Press [t/ u] to select the option Press [Enter] to confirm/exit the selection Press [MENU] to exit menu Option Description AVI (AVI infoframe data) To check the source video infoFrame Packet AUD (Audio infoframe data) To check the source audio infoFrame Packet 10.4 Input Select... -
Page 14: Connection And Installation
11. Connection and Installation IR Receiver HDMI Line LCD TV Blu-ray ° °... -
Page 15: Acronyms
Acronyms Acronym Complete Term HDCP High-bandwidth Digital content protection HDMI High-Definition Multimedia Interface Consumer Electronics Control... - Page 16 CYPRESS TECHNOLOGY CO., LTD. Home page: http://www.cypress.com.tw 20100628 MPM-CPRO41W...
