CPLUS-V4H1H
4x1 HDMI 2.0 UHD Switcher with HDCP 2.2
Operation Manual
Operation Manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the CPLUS-V4H1H and is the answer not in the manual?

Questions and answers

Related Manuals for CYP CPLUS-V4H1H

Summary of Contents for CYP CPLUS-V4H1H

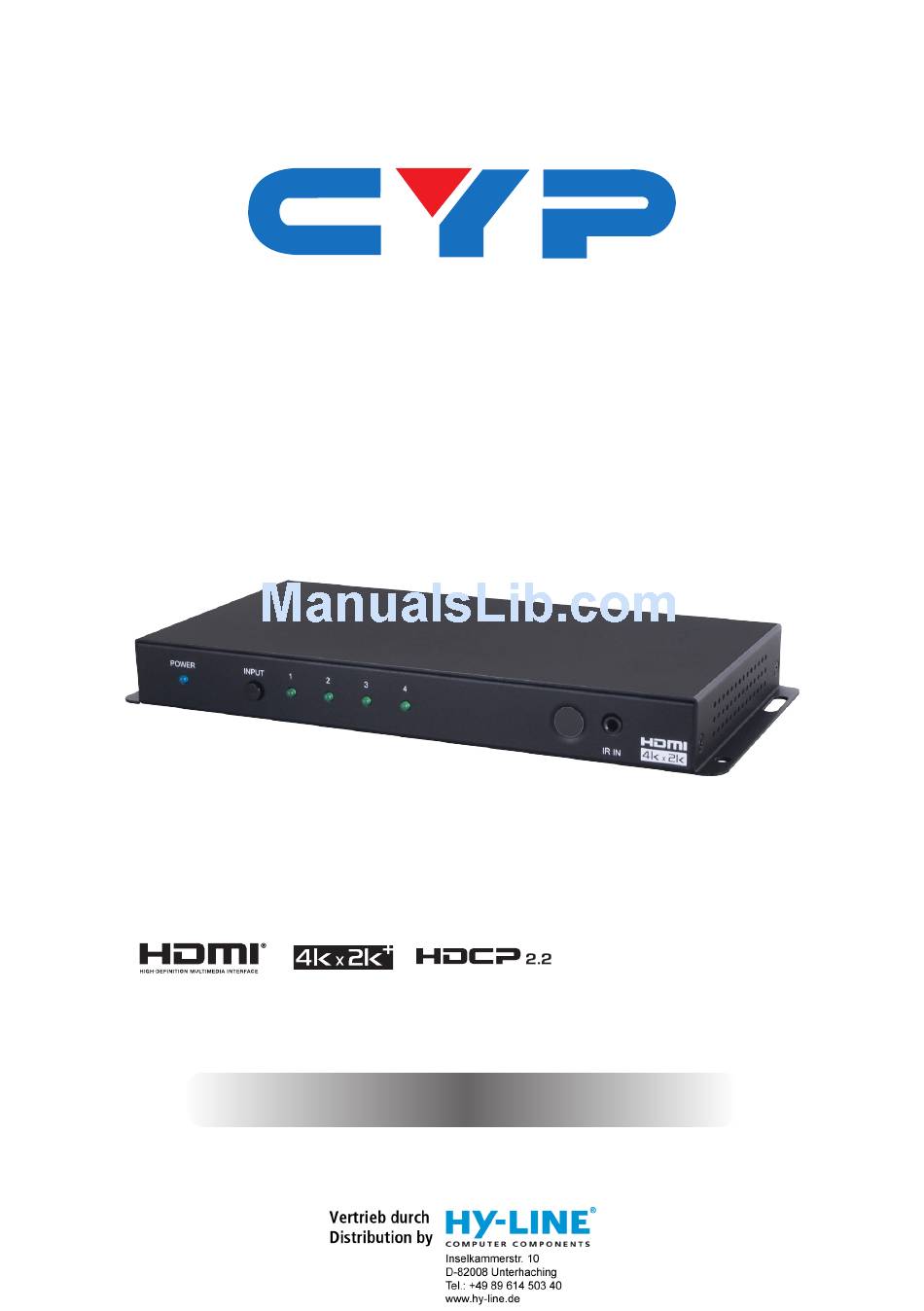

  • Page 1 CPLUS-V4H1H 4x1 HDMI 2.0 UHD Switcher with HDCP 2.2 Operation Manual Operation Manual...

  • Page 2: Copyright Notice

    DISCLAIMERS The information in this manual has been carefully checked and is believed to be accurate. Cypress Technology assumes no responsibility for any infringements of patents or other rights of third parties which may result from its use. Cypress Technology assumes no responsibility for any inaccuracies that may be contained in this document.

  • Page 3: Revision History

    SAFETY PRECAUTIONS Please read all instructions before attempting to unpack, install or operate this equipment and before connecting the power supply. Please keep the following in mind as you unpack and install this equipment: • Always follow basic safety precautions to reduce the risk of fire, electrical shock and injury to persons.

  • Page 4: Table Of Contents

    CONTENTS 1. Introduction ................1 2. Applications .................1 3. Package Contents ..............1 4. System Requirements ............2 5. Features ................2 6. Operation Controls and Functions ........3 6.1 Transmitter Front Panel ..........3 6.2 Transmitter Rear Panel ...........4 6.3 Remote Control ..............5 6.4 IR Pin Definitions ..............5 6.5 RS-232 Protocols .............6 6.6 RS-232 Commands ............7 6.7 Factory Default settings ..........8...

  • Page 5: Introduction

    1. INTRODUCTION This 4 by 1 4K UHD HDMI Switcher is a brand new high performance design for the next generation of audio/video equipment. It allows a single HDMI output to switch between 4 HDMI sources. This unit provides a high level of audio and video performance with support for resolutions up to 4K@60Hz and high definition digital audio formats such as LPCM 7.1 (with sampling rates up to 192kHz), Bitstream pass- through.

  • Page 6: System Requirements

    4. SYSTEM REQUIREMENTS • HDMI source equipment such as media players, video game consoles or set-top boxes. • HDMI receiving equipment such as HDTVs, monitors or audio amplifiers. • The use of “Premium High Speed HDMI” cables is highly recommended. 5.

  • Page 7: Operation Controls And Functions

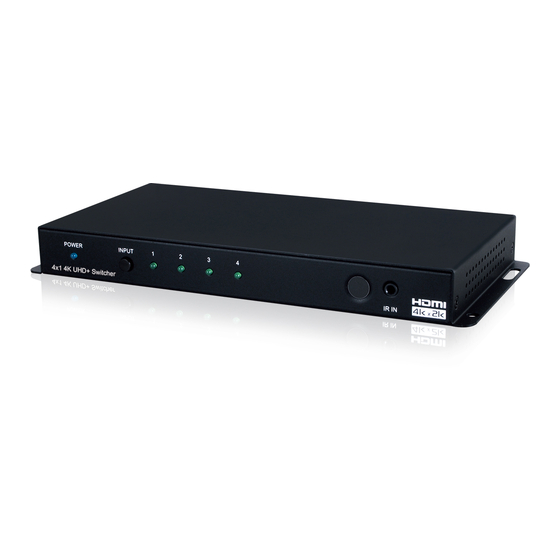

    6. OPERATION CONTROLS AND FUNCTIONS 6.1 Transmitter Front Panel POWER INPUT IR IN POWER LED: This LED will illuminate to indicate the unit is on and receiving power. INPUT: Press this button to sequentially switch through the available inputs. Long press input key until LED start to flicking, then release the input key will execute factory default.

  • Page 8: Transmitter Rear Panel

    6.2 Transmitter Rear Panel RS-232 OUTPUT INPUT 4 INPUT 3 INPUT 2 INPUT 1 SERVICE DC 5V OUTPUT: Connect to HDMI TVs, monitors or amplifiers for digital video and audio output. INPUT 1~4: Connect to HDMI source equipment such as media players, game consoles or set-top boxes.

  • Page 9: Remote Control

    6.3 Remote Control POWER POWER: No function INPUT 1~4: Press any of these buttons to switch to the corresponding input. INPUT CR-72 6.4 IR Pin Definitions IR Extender IR Signal Power Grounding...

  • Page 10: Rs-232 Protocols

    6.5 RS-232 Protocols MATRIX REMOTE CONTROLLER Definition Definition ► ◄ Baud Rate: 115200bps Data bit: 8 bits Parity: None Flow Control: None Stop Bit: 1...

  • Page 11: Rs-232 Commands

    6.6 RS-232 Commands Command Name Description Parameters OUT N, N=1~4 (INPUT), SET/SHOW CURRENT INPUT OUT N SELECTION N=0 (MUTE), N=? (STATUS) SOURCEDET SHOW INPUT INFORMATION NONE SINKINFO SHOW SINK INFORMATION NONE HDCPIN N1 N2, N1=1~4 (INPUT), N2=1~3, N=? (STATUS) 1:FOLLOW IN HDCPIN N1 N2 SET/SHOW INPUT HDCP STATUS 2:FOLLOW OUT...

  • Page 12: Factory Default Settings

    Command Name Description Parameters EDIDIN N1 N2, N1=1~4 (INPUT), N2=1~7, N1=? (STATUS) 1:FHD/2CH 2:FHD/MCH 3:UHD/2CH EDIDIN N1 N2 SET/SHOW EDID INPUT SELECTION 4:UHD/MCH 5:UHD+/2CH 6: UHD+/MCH 7:SINK AUTOSWITCH N, N=0~1, N=? (STATUS) SET/SHOW AUTO SWITCHING AUTOSWITCH N MODE 0:OFF 1:ON SET/SHOW COMSOLE AUTO ECHO ECHO N, N=0~1,0:OFF,1:ON, ECHO N...

  • Page 13: Connection Diagram

    7. CONNECTION DIAGRAM Blu-ray/PS4 Player Blu-ray/PS4 Player Blu-ray/PS4 Player Blu-ray/PS4 Player HDMI IN RS-232 OUTPUT INPUT 4 INPUT 3 INPUT 2 INPUT 1 SERVICE DC 5V 6GHDMI TV/Display Projector...

  • Page 14: Specifications

    8. SPECIFICATIONS Input Ports 4 x HDMI 1 x IR 1 x RS232 1 x Mini USB (Service) 1 x RJ45 (Control) Output Ports 1 x HDMI Supported Resolutions VGA~WUXGA 480i~1080p@60Hz 4K@24/25/30/50/60HZ(YUV 4:4:4) 3M(4K@60Hz, YUV 4:4:4 8bit) HDMI Cable I/O Distance* 5M (4K@60Hz, YUV 4:2:0, 8-bit) 10M (1080p@60Hz, 8-bit) IR Frequency 30~50kHz...

  • Page 15: Timing

    9. TIMING DVI AND HDMI SUPPORTED RESOLUTIONS (HZ) INPUT OUTPUT 640x480@60/72/75/85   800x600@56/60/72/75/85   1024x768@60/70/75/85   1280x1024@60   1366x768@60   1600x1200@60   1920x1080@60   1920x1200@60   720x576i@50   720x480i@59.94/60   720x480p@59.94/60 ...
  • Page 16 CYPRESS TECHNOLOGY CO., LTD Home page: http://www.cypress.com.tw MPM-V4H1H...
