DACT / Dialler Module (DACT-100A) Terminal Connections

The following diagram shows the wiring connection for the DACT-100A, refer to the Manual for more details.
Wire the two telephone lines devices to terminals as shown in Figure 14 below.
Line 1 Input (Tip/Ring): To the first Telephone Line via the required RJ31X Connector.
Line 1 Output (Tip/Ring): To an optional Premise Telephone on the first Telephone Line via the required RJ31X
Connector.
Line 2 Input (Tip/Ring): To the second Telephone Line via the required RJ31X Connector.
Line 3 Output (Tip/Ring): To an optional Premise Telephone on the second Telephone Line via the required RJ31X
Connector.
Note that most AHJs do not allow the connection of premise telephones. See Wiring Tables on page 20and
Appendix C page 38 for more information.
Note: The terminal blocks are "depluggable" for ease of wiring.

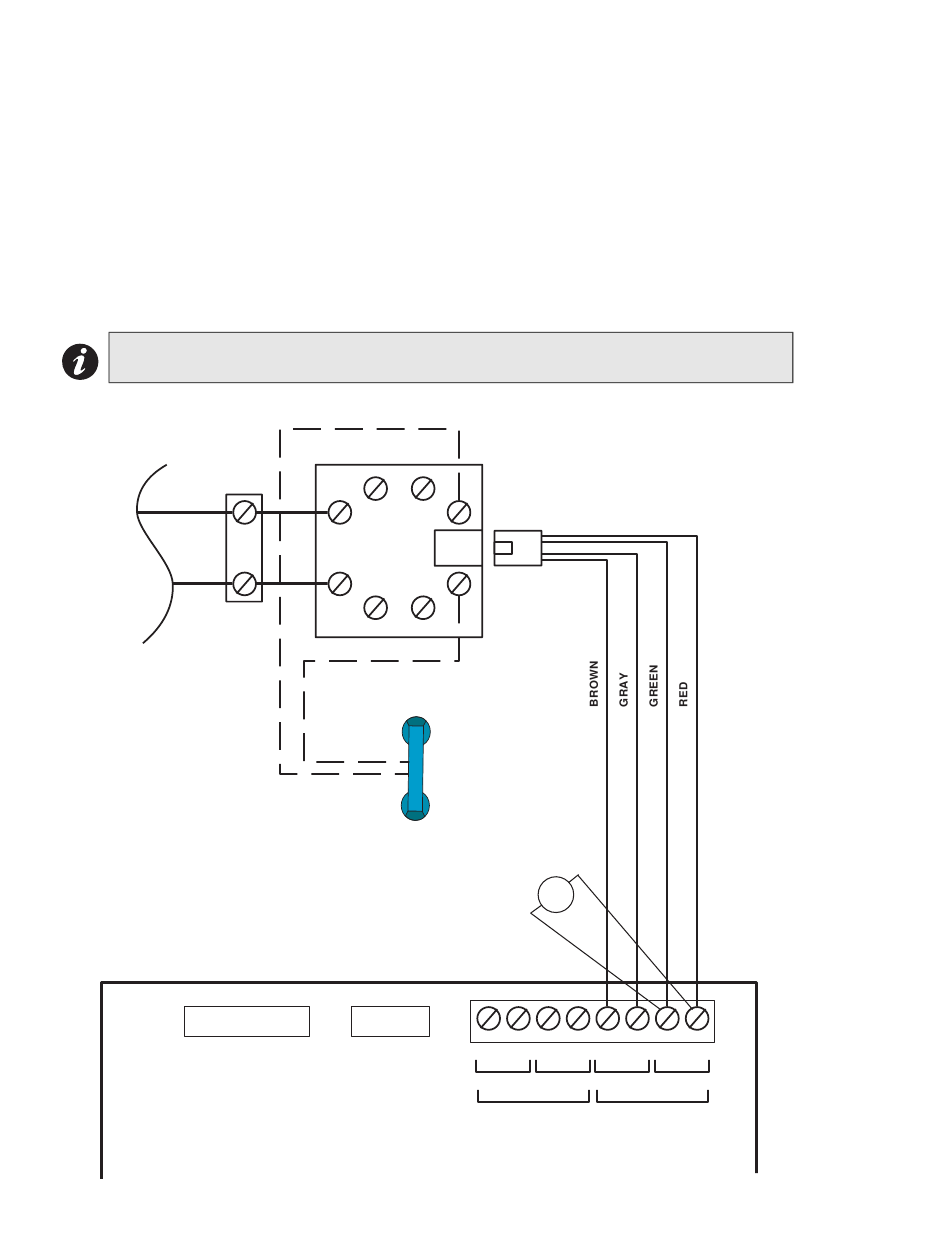

Figure 14: DACT-100A Wiring Diagram

PROTECTOR
BLOCK
TIP
TO
TELEPHONE
RING
COMPANY
WIRING
Alantic
Scientific
Model
#24544
Protective
Device or
similar UL
Listed
QVRG
Secondary
Protector
DACT-100A MAIN BOARD
P1 FOR
CONNECT
TO FIRE
ALARM
PANEL
RJ31X
4
1
2
3
6
7
8
5
PREMISE PHONE
(IF PERMITTED)
VOLTAGE
MEASURED
SHOULD BE
APPROX. 40V
RING / TIP
P2 FOR RS-485
I/F TO PC
OUT
FA-200 Series Installation and Operation Manual
RED
+
V
-
BLACK
TIP / RING TIP / RING TIP / RING
IN OUT IN
LINE-2 LINE-1
17
