Modules Mounting Locations

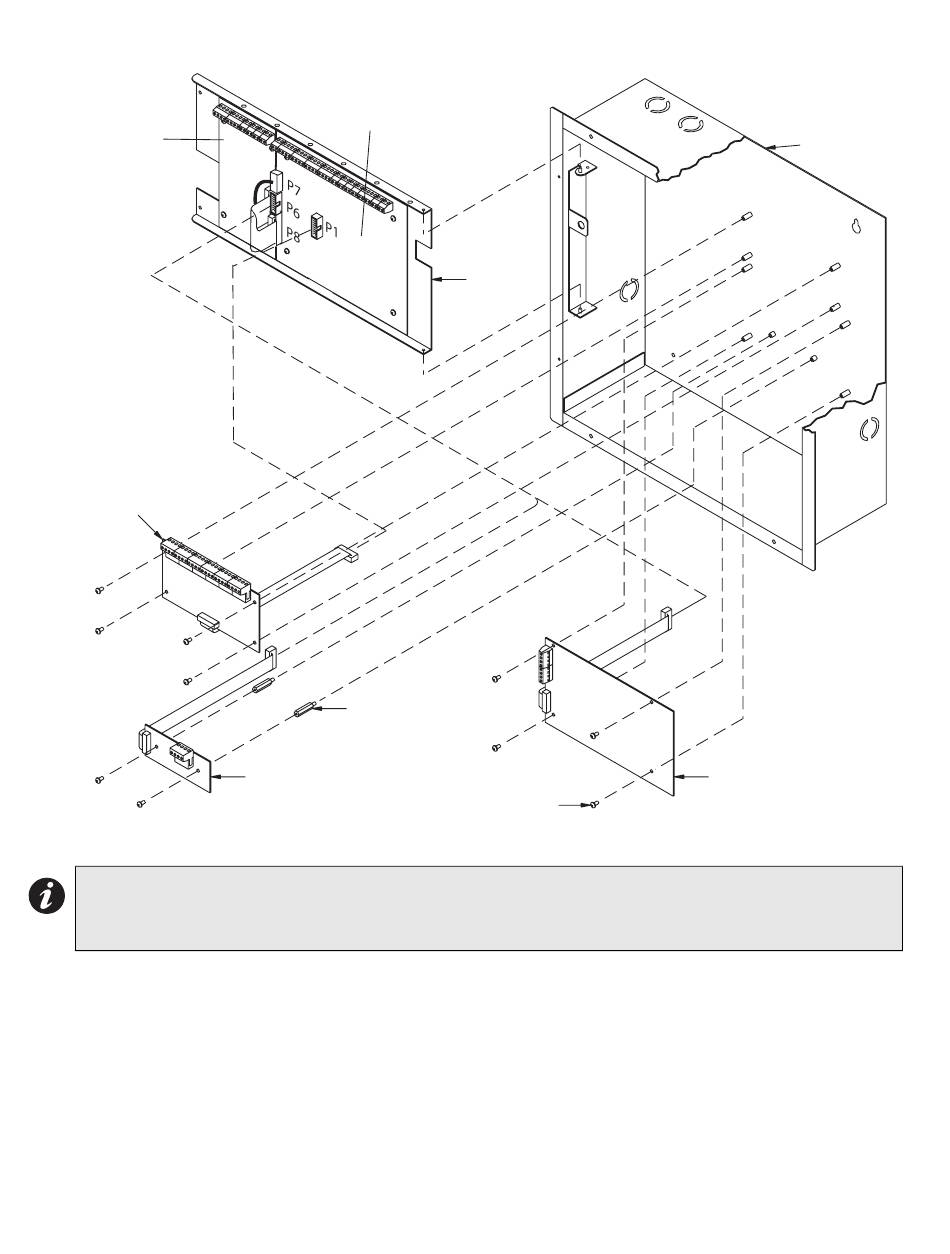

Figure 4: FA-204E Module Mounting Locations

ZONE ADDER
MODULE
(DM-204)
RELAY MODULE
(NOTE 1)
Notes:
1. Relay module may be model RM-204 or RM-208.
2. Only one of PR-100 or DACT-100A may be installed.
8
MAIN FIRE
ALARM
MODULE
#6-32 x 7/8"
M/F HEX SPACER
POLARITY REVERSAL AND
CITY TIE MODULE
(MODEL PR-100)
SEE NOTE 2
DISPLAY
PLATE
#6-32 x 1/4"
SCREW
BACKBOX
DIALER MODULE
(MODEL DACT-100A)
SEE NOTE 2
