Zone Adder Module (Model DM-204)

Figure 6: DM-204 Zone Adder Module
Class A / B Selection: JW2 & JW3
are connected from 1 to 2 for initiating
circuit Class B (Style B) operation,
and from 2 to 3 for Class A (Style D)
operation.
Note: The Class A/B
selection affects all
initiating circuits, and
must be used with the
correct Configuration
DIP switch setting.
P1 & P2: Connections to P7 & P6
respectively on the main fire alarm
board.
SW5,6: Config DIP switches.

Relay Modules (Models RM-204 or RM-208)

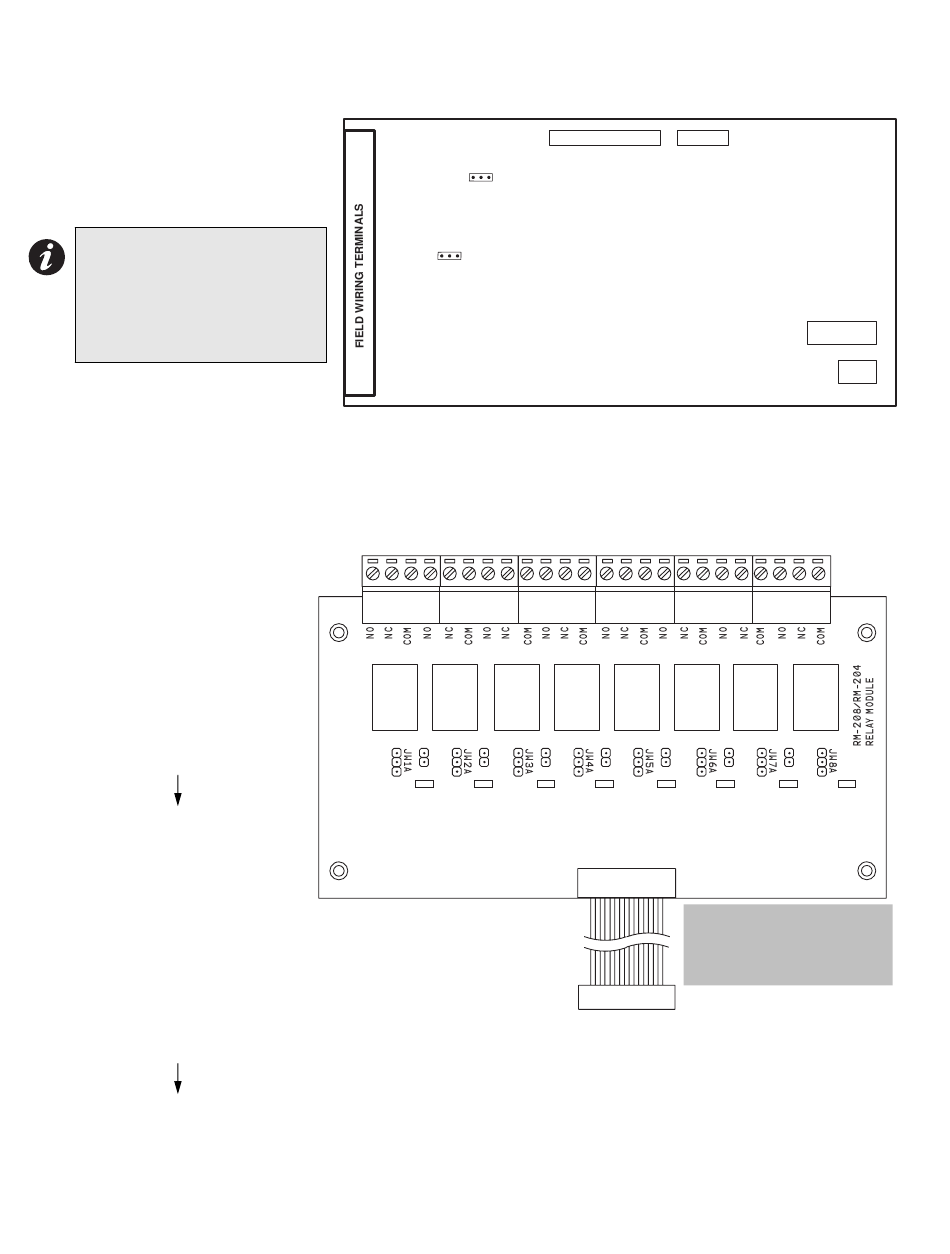

Figure 7: RM-204 or RM-208 Relay Adder Module

P1: Connect to P1 on the main fire
alarm board.
By the factory setting, the four or
eight relays are controlled by
initiating circuits 1 to 8
respectively. This is configured by
selecting:
• JW1: Initiating Circuit #1
controls Relay #1.
• JW2: Initiating Circuit #2
controls Relay #2.
• JW8: Initiating Circuit #8
controls
Relay #8.
Alternately, each relay may be set
as a Common Alarm or Common
Supervisory Relay by removing
the jumper from JW1 to JW1A,
etc. These jumpers have two
positions to select Alarm or
Supervisory each.
• JW1A: Alarm or supervisory control for Relay #1.
• JW2A: Alarm or supervisory control for Relay #2.
• JW8A: Alarm or supervisory control for Relay #8.
Finally, there are jumpers JW1.2, JW2.3, up to JW7.8 that allow a relay to have the same control as an adjacent
relay. For example, starting with the factory default setting, moving the jumper from JW2 to JW1.2 will make both
relays 1 & 2 operate with Initiating Circuit #1.Contact Mircom Technical Support for assistance if required.
