air box
i431-411EX
PCIII USB EX
wiring harness
unplug connector
The ignition must be turned OFF before
installation.
1
Remove the seat.
2
Remove the fuel tank.
3

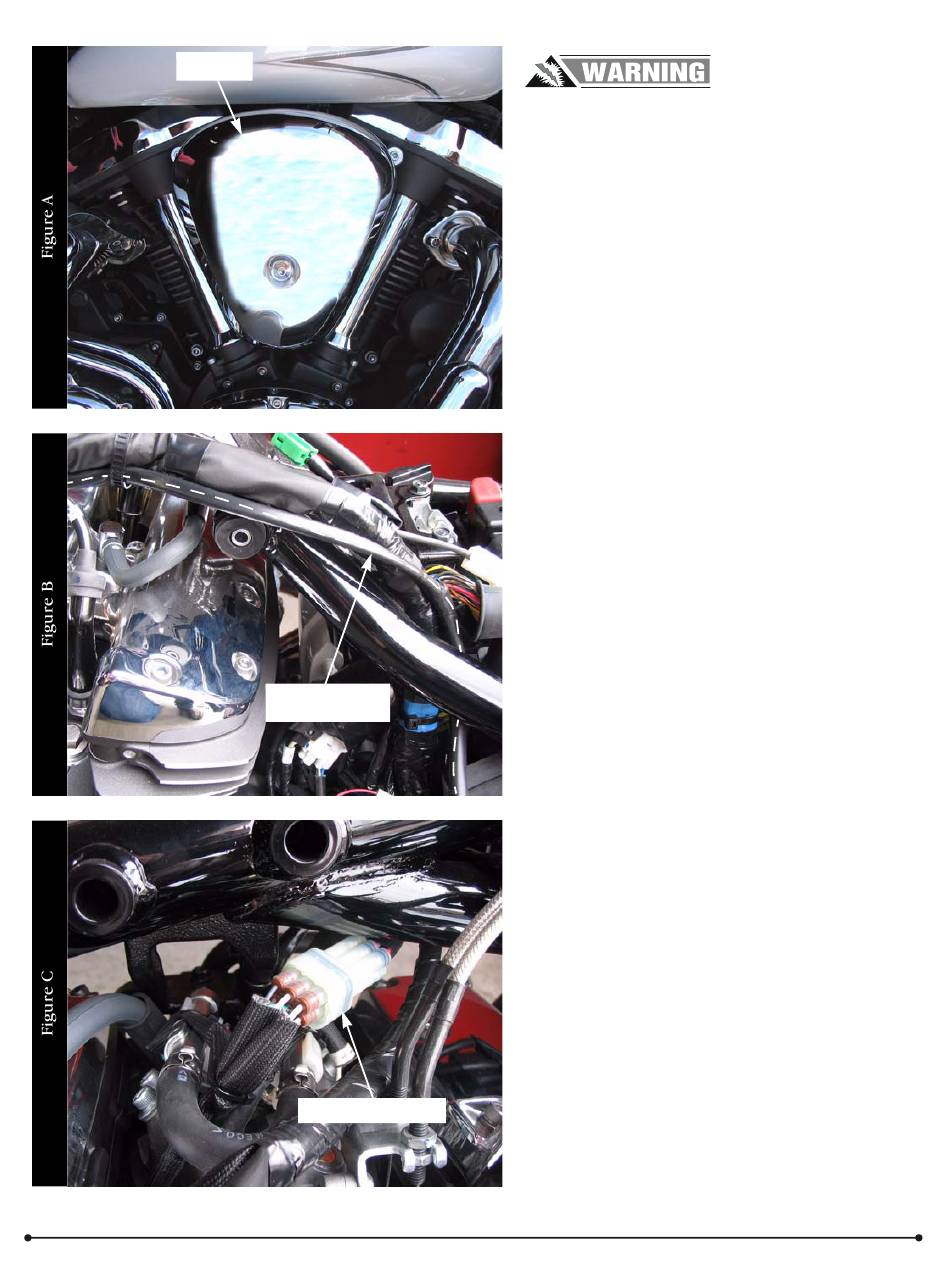

Remove the right hand side air box as shown
in Figure A.
4
Remove the left hand side cover.
5
Lay the PCIII USB EX under the left hand side
cover next to the fuse box.
6
Route the PCIII USB EX wiring harness behind
the left hand frame tube and follow the main
wiring harness towards the front of the bike as
shown in Figure B.
Use the stock wire tie to secure the
PCIII USB EX wiring harness in place.
7
Locate the clear 6-pin connector under the
main frame spar as shown in Figure C.
Unplug this connector.
