AMBROGIO BASIC User Manual page 83

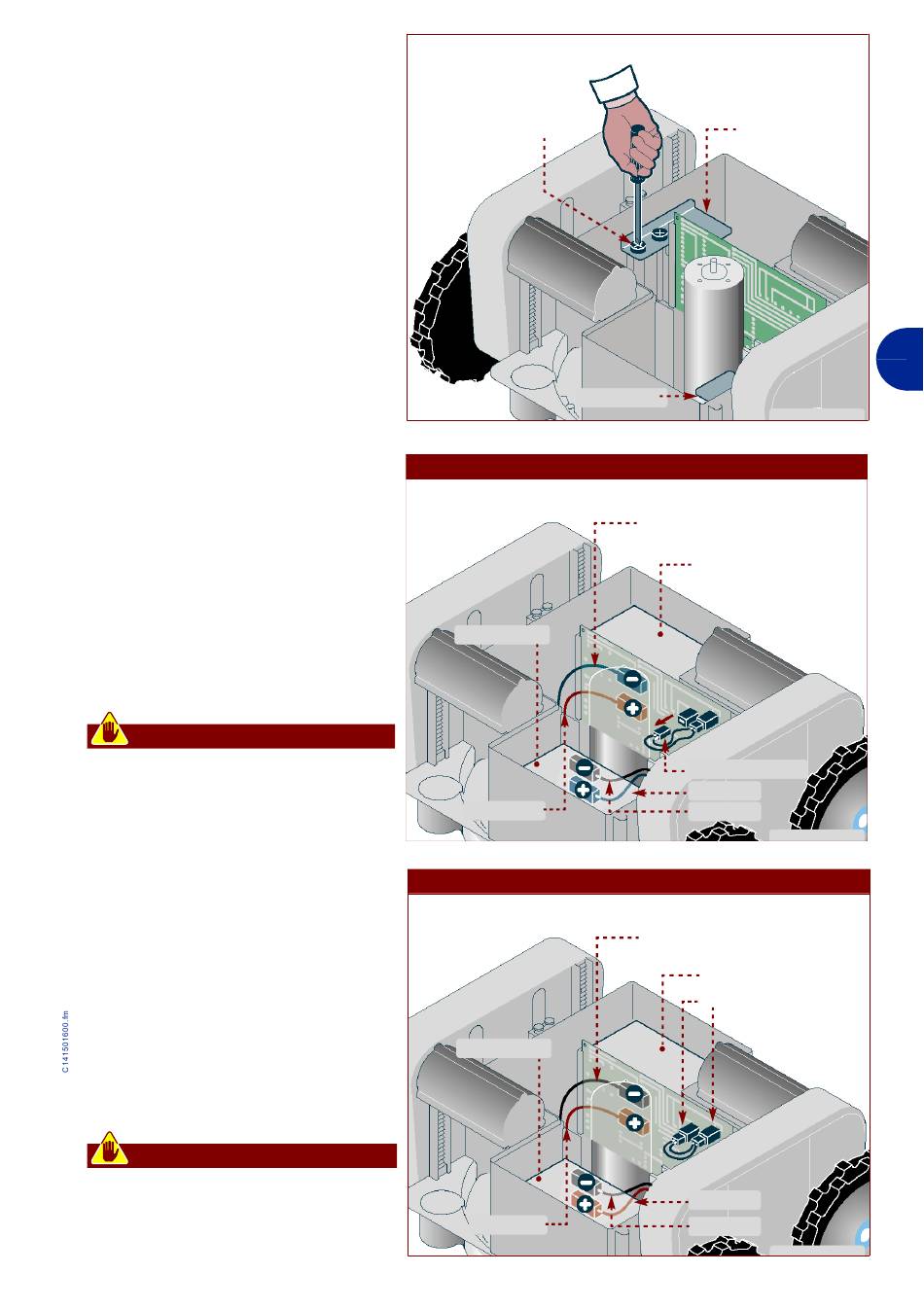

6-Undo the screws (F) and re-
move the brackets (G).
Lead battery
1-Disconnect the cables in se-
quence (N-L-P).
2-Remove the battery (H) and fit
the replacement.
3-Perform the same operations
to replace the other battery
(H).
4-Reconnect the cables in se-
quence (L-P-N).
Warning - Caution
A wrong connection of the poles
may irreversibly damage the bat-
teries and the electronic cir-
cuits.
Lithium battery
1-Disconnect the cables in se-
quence (S-R).
2-Remove the battery (Q) and fit
the replacement.
3-Perform the same operations
to replace the other battery (if
present).
4-Reconnect the cables in se-
quence (R-S).
Warning - Caution
A wrong connection of the poles
may irreversibly damage the bat-
teries and the electronic circuits.
screw (F)
bracket (G)
LEAD BATTERY
battery (H)
cable (N)
LITHIUM BATTERY
battery (Q)
cable (R)
- 41 -
bracket (G)
IDM - 41501602300.tif
cable (L)
battery (H)
connector (M)
cable (L)
cable (P)
IDM - 41501602400.tif
cable (S)
battery (Q)
connector (M)
cable (R)
cable (S)
IDM - 41501602500.tif
User's manual
GB
