Summary of Contents for AMBROGIO L15 DELUXE

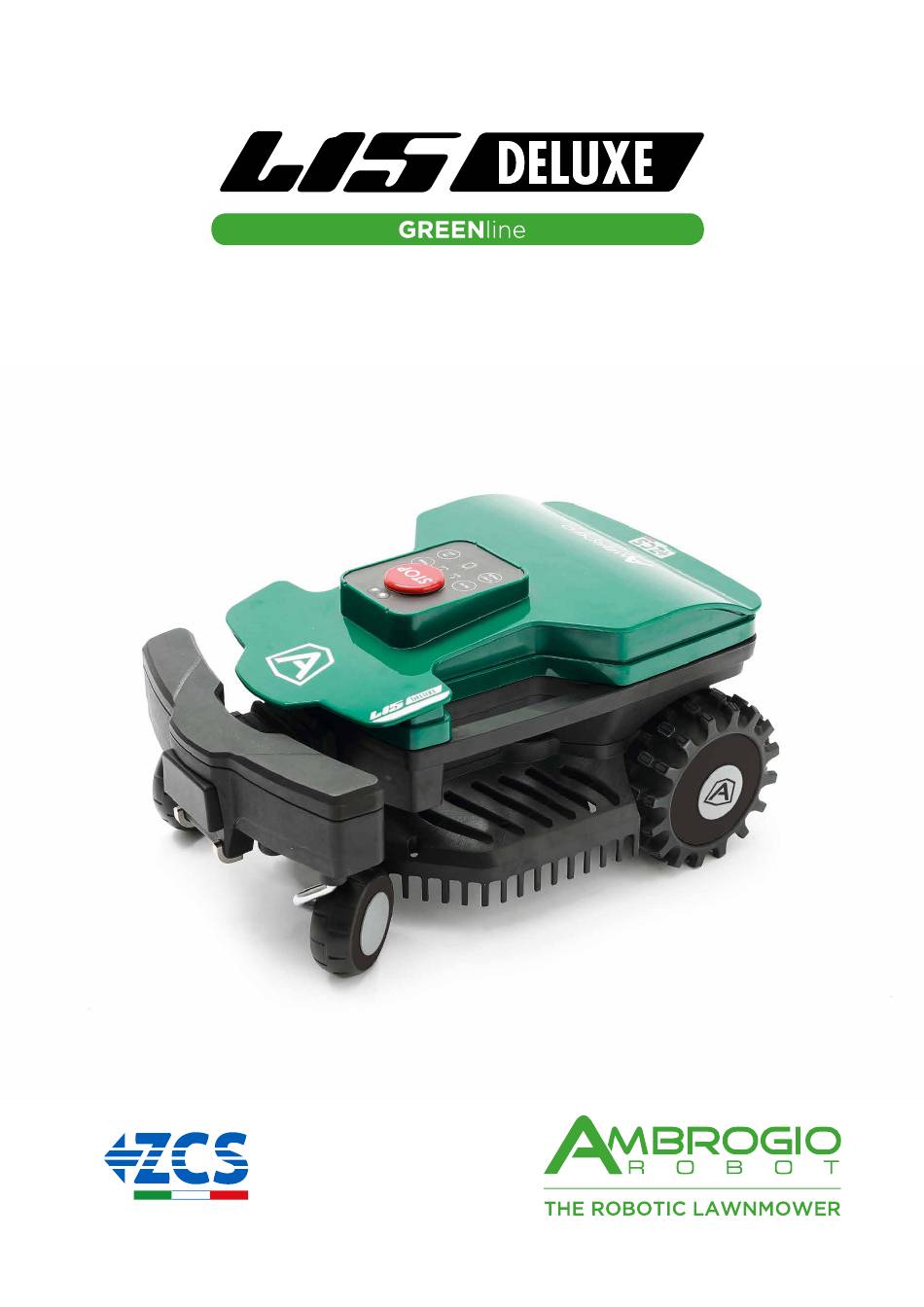

  • Page 1 2020 Installation Guide...
  • Page 2 VIDEO Small and complicated gardens Please refer to an Ambrogio Robot professional installer to install your robot Look for him on www.ambrogiorobot.com...
  • Page 3: What's In The Box

    READ THE VIDEO ambrogiorobot.com MANUAL WHAT’S IN THE BOX Carefully pull off the components and check their integrity. Fixing pegs for Transmitter Robot Docking station the docking station Cutting height Power cord Power supply User manual adjusting key Perimeter wire joint Perimeter wire coil Docking station roof* Carefully read the user manual.
  • Page 4 READ THE VIDEO ambrogiorobot.com MANUAL NEEDED PARTS FOR INSTALLATION Wire pliers Universal pliers Screwdriver Hammer for electric cables SAFETY INSTRUCTIONS DO NOT MAKE AMBROGIO WORK NEXT TO: People Children Pets...
  • Page 5 READ THE VIDEO ambrogiorobot.com MANUAL DOCKING STATION POSITIONING Position the charging station at the edge of the lawn, preferably in the widest area. The selected position should be flat and within 8 metres of a power outlet. power supply unit transmitter charging station min height 160 cm...
  • Page 6 READ THE VIDEO ambrogiorobot.com MANUAL POSSIBLE PERIMETER WIRE JUNCTION If more than one perimeter wire coil is needed, use the original joint to connect the additional coils. Follow the procedure shown in the figure. CONNECTING THE PERIMETER WIRE TO THE CHARGING STATION Before any intervention, disable the master electricity switch Unhook the transmitter (T).
  • Page 7: Other Operations

    VIDEO ambrogiorobot.com MANUAL START-UP Adjust the cutting height. Open the Ambrogio Remote APP and insert the “PLAY/PAUSE” KEY PIN 0000. Start-up of the robot in the middle of the lawn and BATTERY LED control of its functioning for about 15 minutes.
  • Page 8 Zucchetti Centro Sistemi SpA Via Lungarno, 305/A 52028 - Terranuova B.ni (AR) - Italy Ambrogio Robot Phone +39 055 91971 - Fax +39 055 9197515 ambrogiorobot.com...
