Installation - INSYS 56k small INT 2.0 Operating Manual

Initial Operation

4.4 Installation

Please observe our safety instructions.
1. Mounting on DIN rail
2. Connecting the power supply
a) Connecting the ground connection
b) Connecting the power supply 10...32V DC
1
2
3

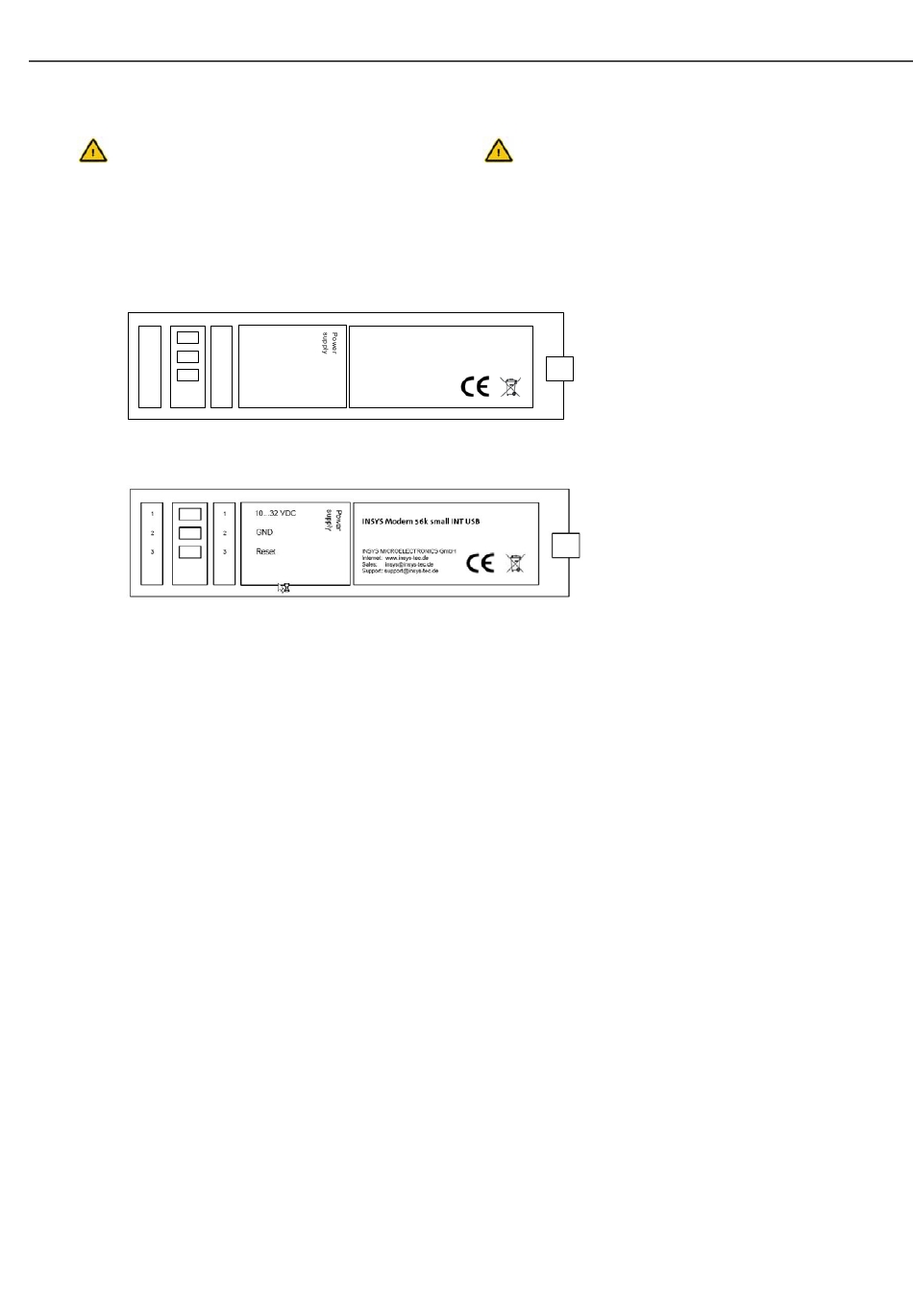

INSYS Modem 56k small INT 2.0
INSYS Modem 56k small INT USB 1.0
Note:
3. Switch on power supply
4. Connection with a PC
Connect the 9-pin jack at the modem with the serial interface
or a USB interface of your computer.
Installation of a driver
5.
For INSYS Modem 56k small INT 2.0:
The installation of a driver is not required when using a termi-
nal program or the HSComm. If you use another application, a
driver may be necessary. Please find our current drivers at
http://www.insys-tec.de/ or install the standard modem 336
under Windows.
For INSYS Modem 56k small USB 1.0:
If the INSYS USB drivers are not installed on your system
yet, you must perform the installation described in
Chapter 4.5 .
Communication with the Modem
6.
Now, start your communication program on the PC and set it
to the used COM interface. The modem will automatically ad-
just to the baud rate of your PC.
7. Communication Control via a Terminal Program
10
10...32 VDC
1
GND
2
Reset
INSYS MICROELECTRONICS GmbH
3
Internet: www.insys-tec.de
Sales:
Support: support@insys-tec.de
The minimum value is 10V DC.
The maximum value is 32V DC.
insys@insys-tec.de
INSYS Modem 56k small INT 2.0/USB 1.0
Power LED
lights up green
June 06
