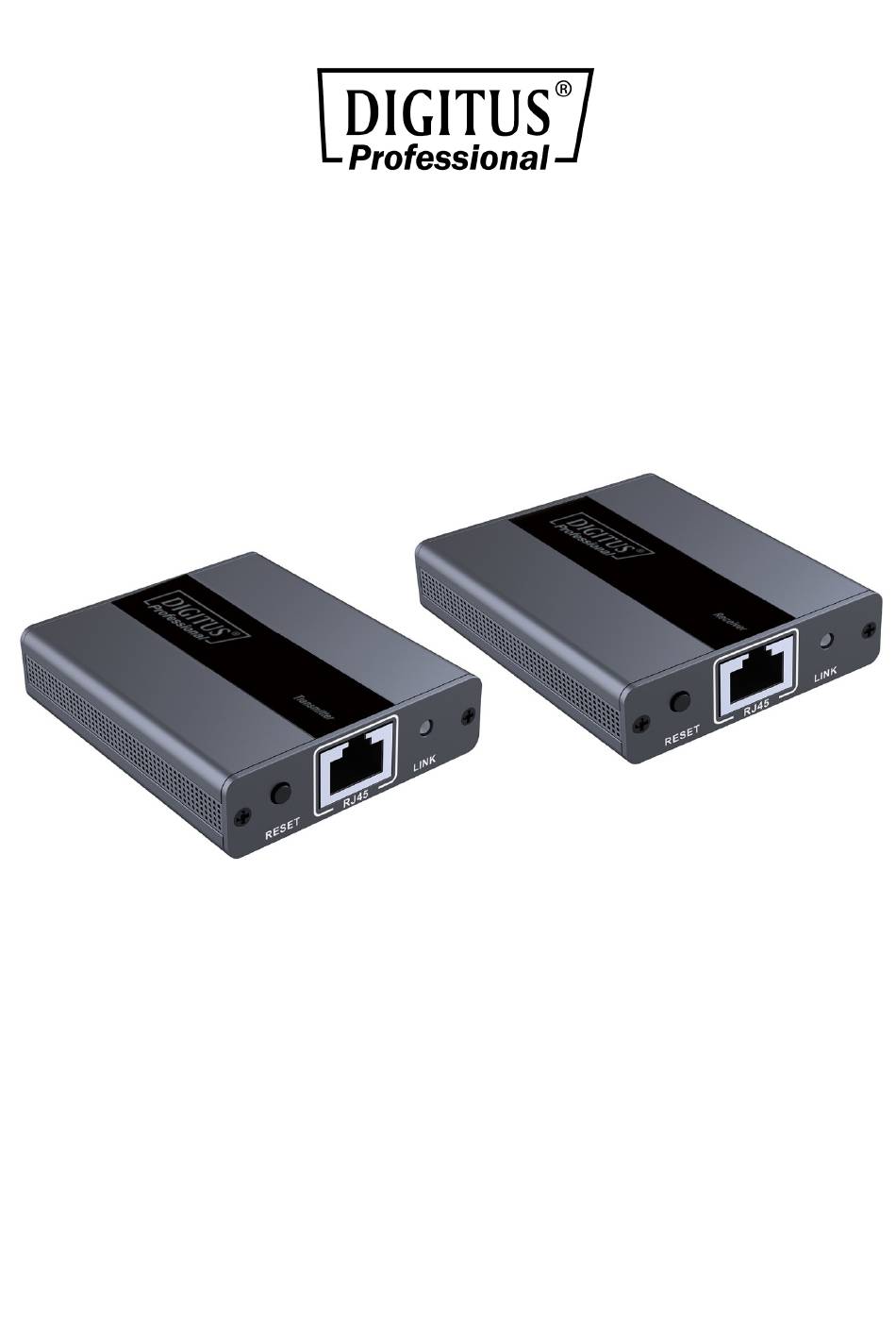

HDMI Extender Set
Full HD, 130 m
Manual
DS-55101

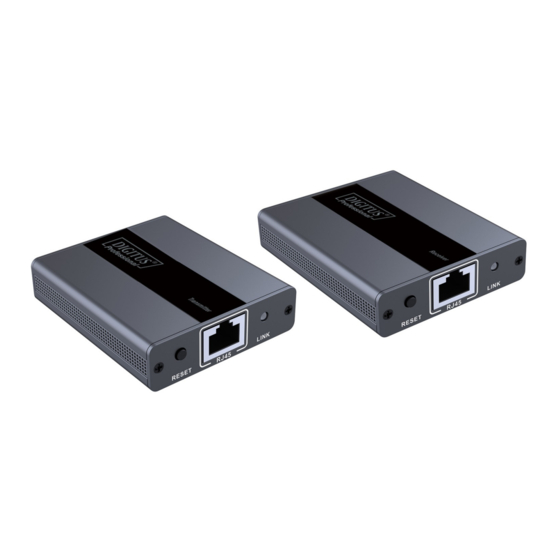

The Digitus HDMI Extender Set, Full HD offers an extender solution of up to 130 m
for the highest demands. It is used to transmit digital video and audio signals to a
maximum distance of up to 130 m (via CAT 6). The highest supported video
resolution is 1080p / 60Hz. CAT 5, CAT 5E and CAT 6 network cables are supported.
The package includes two infrared units (transmitter, receiver), which can be used
for the remote control of the connected input source. LED display shows the
connectivity.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the DS-55101 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Digitus DS-55101

  • Page 1 Manual DS-55101 The Digitus HDMI Extender Set, Full HD offers an extender solution of up to 130 m for the highest demands. It is used to transmit digital video and audio signals to a maximum distance of up to 130 m (via CAT 6). The highest supported video resolution is 1080p / 60Hz.
  • Page 2: Important Safety Notice

    Important Safety Notice Please read below safety instructions carefully before installation and operation: Do not hot plug when it is working. Do not mix up the transmitter unit (TX) and the receiver unit (RX), IR blaster extension cable and IR receiver extension cable before installation. Feature 1.
  • Page 3: Specification

    Specification Voltage/Current DC5V/1A Power Supply Power consumption TX: 2W RX: <2W HDMI compliance HDMI1.3 HDCP compliance HDCP1.4 720x576@50Hz, 720x480@60Hz, 1280x720@60Hz, 1920x1080@60Hz, 640x480@60Hz, HDMI resolution 800x600@60Hz, 1024x768@60Hz, HDMI 1280x800@60Hz, Performance 1280x1024@60Hz, and Interface 1440x900@60Hz, 1680x1050@60Hz Supports audio formats Maximum transfer rate 10.2Gbps Input and output TMDS signal 0.5~1.5Vp-p (TMDS)
  • Page 4: Installation Requirements

    Installation Requirements 1. HDMI source device (Computer graphics card, DVD, PS3, HD monitoring equipment etc.). 2. HDMI display device like SDTV, HDTV, and projector with HDMI port. 3. UTP/STP CAT5/5e/6 cable, follow standard IEEE-568B. Penal Description Transmitter unit (TX) 1) Reset button Restart the unit 2) RJ45 signal output Connect with network cable...
  • Page 5: Installation And Connection

    Receiver unit (RX) 1) Reset button Restart the unit 2) RJ45 signal input Connect with network cable 3) LINK indicator LED turns on all the time with HDMI signal transmission, flashes with no signal transmission 4) Power input Connect with DC5V1A power adapter 5) HDMI signal output Connect with display device 6) IR signal input...
  • Page 6 B. Connection HDMI IN Receiver Transmitter HDMI Cable cable HDMI Display C. Connection 1) Connect source device to Transmitter unit (TX), and display device to Receiver unit (RX) via HDMI cables 2) Connect Transmitter unit (TX) and Receiver unit (RX) via network cables (CAT5, CAT5e or CAT6) 3) Plug the power supply to Transmitter and Receiver unit,...
  • Page 7 • FAQ No image output? Check and make sure all cables are connected well; Restart the TX/RX by “RESET” button. RX “LINK” indicator is flashing all the time? Make sure network cable connection follows the standard of IEEE568B; Check whether transmitter has HDMI signal input; Reset transmitter and receiver and reconnect.
