4K/30 Hz HDMI EXTENDER SET
OVER TCP/IP, 100 m
User Manual
DS-55129

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the DS-55129 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Digitus DS-55129

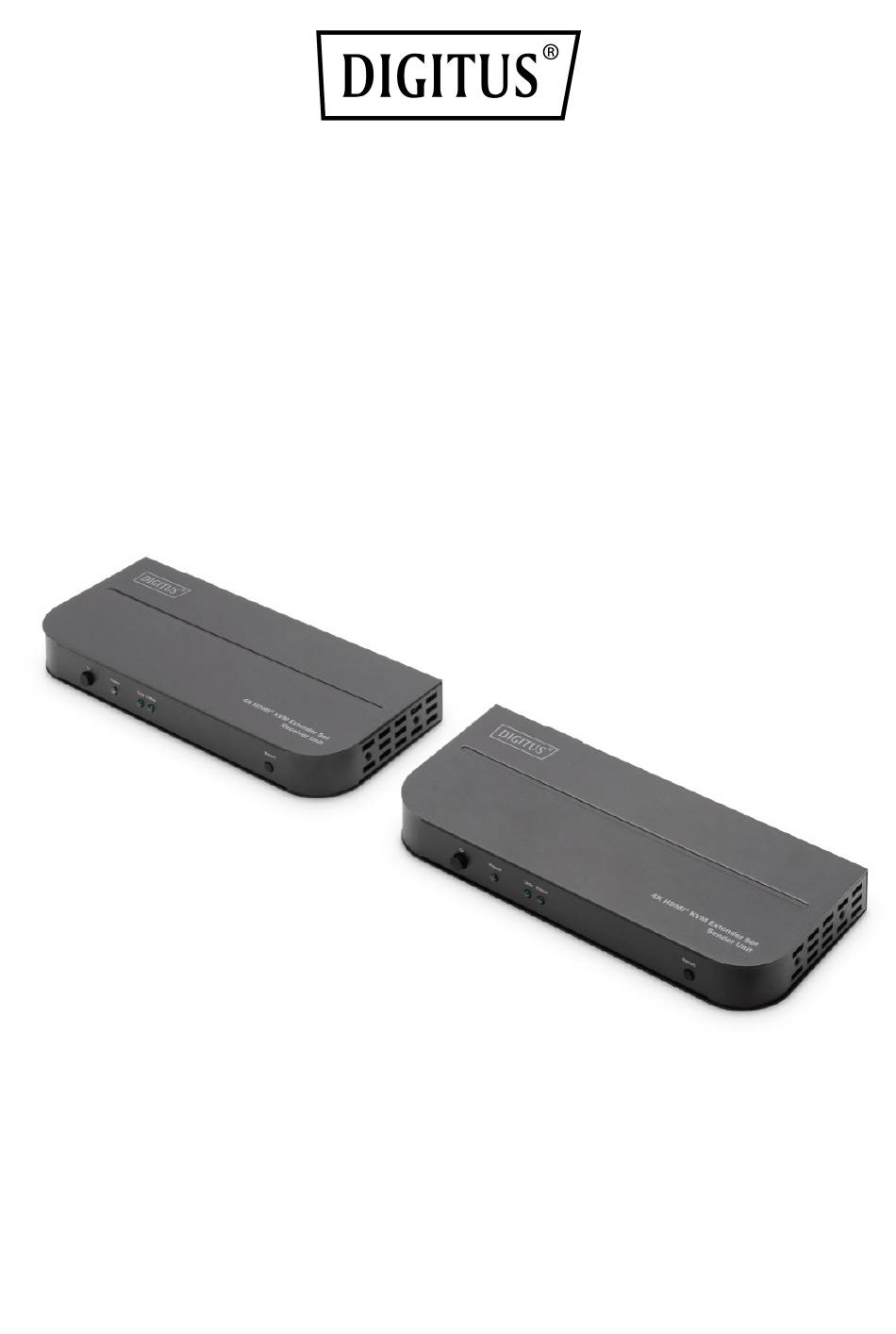

  • Page 1 4K/30 Hz HDMI EXTENDER SET OVER TCP/IP, 100 m User Manual DS-55129...
  • Page 2: Table Of Contents

    Contents Contents ........................2 Introduction ......................2 Features ........................3 Package Contents ...................... 3 Panel Descriptions..................... 4 Specifications ......................6 Power Adapter Information ..................7 Connection and Operation ..................8 Connection Diagram....................9 Dear Customer Thank you for purchasing this product. For optimum performance and safety, please read these instructions carefully before connecting, operating or using this product.
  • Page 3: Features

    Features  Interface: Sender: HDMI input x1, RJ45 x1, Line input x1, Line output x1, RS232 x1, IR output x1, USB 2.0 x1, DC Power Jack x1 Receiver: HDMI output x1, RJ45 x1, Line input x1, Line output x1, RS232 x1, IR input x1, USB 2.0 x3, DC Power Jack x1 ...
  • Page 4: Panel Descriptions

    Panel Descriptions 1. Sender HDMI In: Connect HDMI source USB: Connect this port to PC. ① ② to this port RS232 port: Connect to a PC or IR Out: Connect IR Receiver (Blaster) to ③ ④ laptop for RS-232 commands this port for IR signal sending to control transmission.

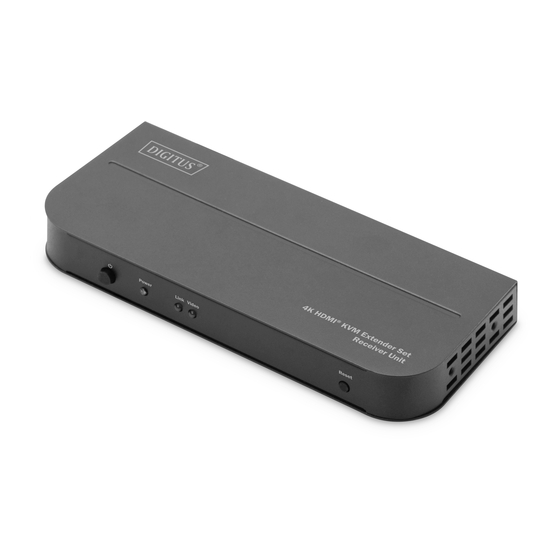

  • Page 5 2. Receiver HDMI Out: Connect HDMI display USB: Connect to keyboard/mouse/U- ① ② to this Port. disk. RS232 port: Connect to the IR In: Connect IR Sender (Extender) to ③ ④ device that is to be controlled by this port for IR signal reception from RS-232 commands.
  • Page 6: Specifications

    Specifications Signal Input/Output Sender Connector HDMI input x1, RJ45 x1 Line input x1, Line output x1 RS232 x1, IR output x1 USB 2.0 x1, DC Power Jack x1 Receiver Connector HDMI output x1, RJ45 x1 Line input x1, Line output x1 RS232 x1, IR input x1 USB 2.0 x3, DC Power Jack x1 Video format supported...
  • Page 7: Power Adapter Information

    Power Adapter Information Information published Value and precision Unit Manufacturer’s name or Dongguan Guanjin Electronics Technology Co.,Ltd trade mark, commercial Block 16 Qiantou New Industrial Park, Niushan, registration number and Dongcheng District, 523128 Dongguan City, address Guangdong Province Model identifier K12V240050G Input voltage AC, 100-240V...
  • Page 8: Connection And Operation

    Connection and Operation 1) A) Connect the HDMI source to the HDMI input of Sender. B) Connect the HDMI output of Receiver to HDMI display. 2) There are two ways of connection: A) Point to Point connection: Connect the “LAN” of Sender to the “LAN” of Receiver with a Straight-Through Wired Cable (both ends connected by T568B).
  • Page 9: Connection Diagram

    Connection Diagram HDMI Display DVD (HDMI Source) Keyboard Mouse Microphone USB Stick IR Blaster (Sender)/ IR Extender (Receiver) Amplifier RS-232 equipped PC Power Supply Two kinds of connection (A & B); Straight-Through Wired Cable (T568B), Max. 100 m for 4K@30 HZ...
  • Page 10 Disclaimer: The product name and brand name may be registered trademark of related manufacturers. TM and ® may be omitted on the user manual. The pictures on the user manual are just for reference, and there may be some slight difference with the real products.
