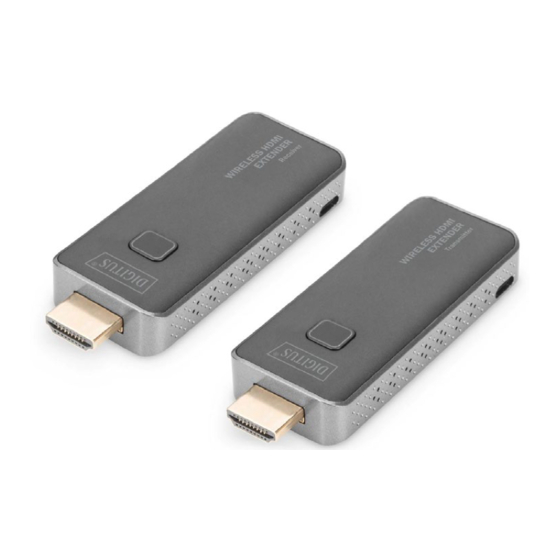

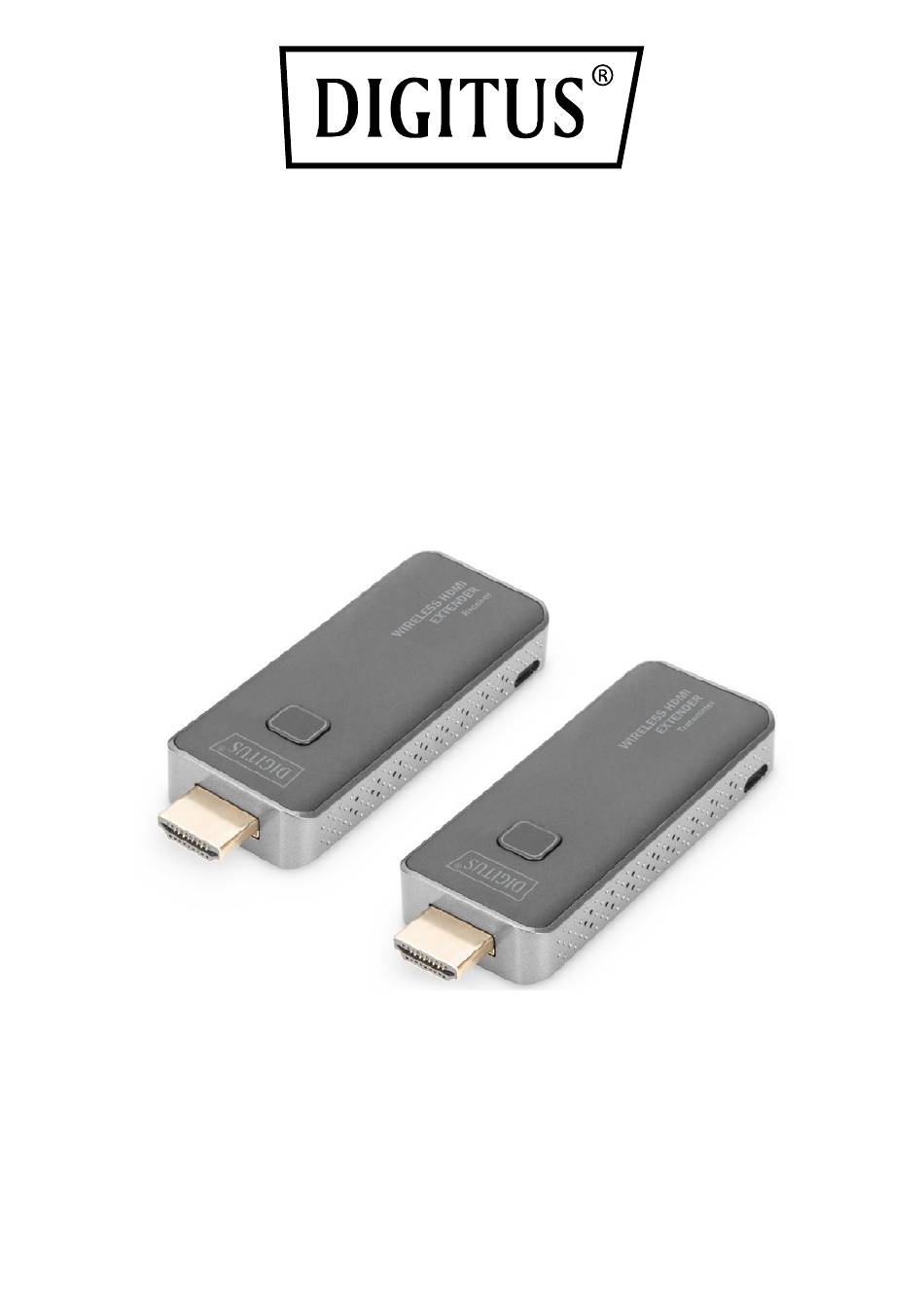

- Page 1 Wireless HDMI Extender Set, 50 m Quick Installation Guide DS-55318...
-
Page 2: Table Of Contents
Table of Contents 1. Introduction ................3 2. Main Features ............... 3 3. Package Contents ..............4 4. Product Features ..............4 5. Product Specification ............. 5 6. Overview ................7 6.1 Transmitter Unit .............. 7 6.2 Receiver Unit ..............8 7. -
Page 3: Introduction
1. Introduction With the Wireless HDMI Extender Set, you can wirelessly transmit HDMI video and audio signals in Full HD over a distance of up to 50 m with an unobstructed view. Operation and installation are super simple. Real Plug & Play - Just plug in and get started. The transmitter and receiver can be supplied with power via your device’s HDMI connection (0.5A required), or alternatively (additionally) with the enclosed Micro USB cable via the USB connection of your notebook,... -
Page 4: Package Contents
IT team All in one Support Blu-ray DVD player, media player and any devices with HDMI jack Auto Channel Selection The DS-55318 will select the best Wi-Fi channel automatically after power on to ensure streaming smoothly... -
Page 5: Product Specification
Fast Speed with 5G AC The DS-55318 comes with the MIMO Technology fast 802.11ac MIMO technology which increases Wi-Fi speeds by allowing a pair of wireless devices to simultaneously send or receive multiple data streams 1080p High Video Quality DS-55318 supports 1080p... - Page 6 Authentication WPA2 (WPAS-PSK / WPA2-Enterprise) Protocol Security AES 128 bit Platform supported Any devices with HDMI jack Distance About 50 meters in the clear line of sight Transmitter Interface HDMI in jack x 1, micro USB x 1, button Red/Blue Switch Button Power Supply DC5V/0.5A...
-
Page 7: Overview
6. Overview 6.1 Transmitter Unit 1. HDMI in Connect source devices, like with a computer or other devices with HDMI, the HDMI in also supports 5V power if the source devices has HDMI with a 5V output 2. Button Short press: start to cast Long press: long press up to 10 seconds for factory reset 2. -
Page 8: Receiver Unit
6.2 Receiver Unit 1. HDMI out Connect with monitor or projector 2. Button: Press 10 seconds for factory reset 2. LED To display different status 3. Micro USB For power supply LED indicator of the Description Receiver Unit Flashing blue Waiting for connection Static blue Connected... -
Page 9: Transmitter Installation
Transmitter Installation • Connect the Transmitter Unit HDMI to PC HDMI port Remark: if the source devices HDMI with 5V power output, then no need connect USB cable for power, if not, please connect the Transmitter Unit with PC by USB cable for power. To have a safe and stable operation, we recommend to use always the Micro USB cable for power supply of TX and RX •... - Page 10 Frequency Range & Maximum Transmit Power WiFi Standard: 802.11b/g/n/ac 5G WiFi Channel: 36, 40 Core Frequency: 5180, 5200 Range: 5170 ~ 5210MHz Bandwidth: 20/40MHz Transmitter power: 13dBm max SW version: RX: 2.3.12, TX: 2.3.3 HW version: TX: S100TX-LC01-01 RX: S100RX-LC01-01 Important safety instructions Please read the following safety instructions carefully before installation and operation:...
- Page 11 during a thunderstorm 10. Use the device inside buildings only 11. Return the device to your dealer in case of repair 12. Dust, moisture, vapors and strong cleaning agents or solvents can damage the device 13. Disconnect the device from the power supply and the connected devices before cleaning 14.
