HDMI over Fiber Optic Extender Rev. 2
User Manual
DS-55126
Introduction
This HDMI over fiber optic incorporates over IP transport technology.
The extender set consists of an optical transmitter module that converts
the HDMI signals into light pulses for transmission over a single strand of
Multi-Mode or Single-Mode optical fiber cable. An optical receiver
module converts the light pulses back to an HDMI signal for display on a
monitor or projector. It allows you to extend up to 40 km long distance
between the source device and display monitor via optical cable. It also
supports IR pass back function. It can be widely applied in video
conference, medical system, shopping mall, multimedia
presentation...etc. filed.
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Digitus DS-55126
Summary of Contents for Digitus DS-55126

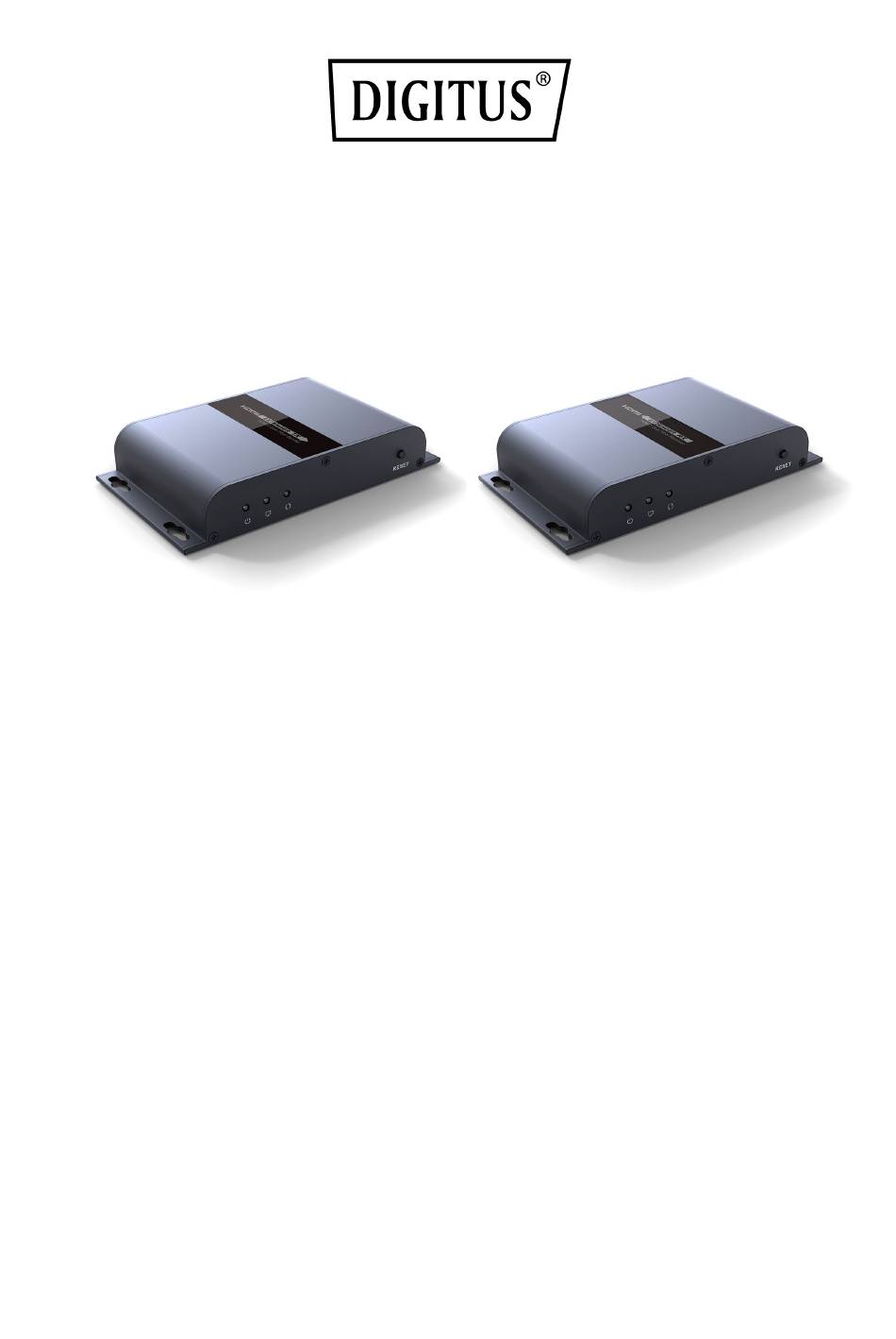

- Page 1 HDMI over Fiber Optic Extender Rev. 2 User Manual DS-55126 Introduction This HDMI over fiber optic incorporates over IP transport technology. The extender set consists of an optical transmitter module that converts the HDMI signals into light pulses for transmission over a single strand of Multi-Mode or Single-Mode optical fiber cable.
-
Page 2: Important Safety Notice
Important safety notice Please read below safety instructions carefully before installation and operation: Please pay attention to all the warnings and hints on this device Do not expose this unit to rain, moisture and liquid Do not put any stuff into the device ... -
Page 3: Package Contents
Package Contents HDMI extender TX x1 HDMI extender RX x1 DC5V2A x1 IR blaster extension cable x1 IR receiver extension cable x1 User’s manual x1 Installation Requirements 1. Source device with HDMI output port (computer graphics card, DVD, PS3, HD monitor equipment etc) 2. - Page 4 2. Rear panel of HDMI extender RX ① Power Input (DC 5V) ② HDMI signal output ③ IR receiver extension cable port ④ Fiber optic signal receive port 3. Front Panel of TX and RX ① Power status indicator ② Network connection indicator ③...
-
Page 5: Connection And Operation
Connection and operation Q: TV display “waiting for connection” on the bottom right corner? A: Please check if the power supply of TX (sender) and the fiber optic cables are well connected. Q: TV display “Please check the TX input signal”? A: 1) Please check if there is an HDMI signal input of sender TX. -
Page 6: Specifications
Specifications Specification DS-55126 HDMI signal Full compatible with HDCP Support resolution 480i@60Hz, 480p@60Hz, 576i@50Hz, 576p@50Hz, 720p@50/60Hz, 1080i@50/60Hz, 1080p@50/60Hz DDC signal voltage 5Vp-p(TTL) TMDS bandwidth 10.2Gpbs Wave length Transmitter: 1310nm /1550nm Receiver: 1550nm/ 1310nm Transmission distance 1～40km Link loss ≤14dB Output light power ≥-11dBm... - Page 7 Disclaimer: The product name and brand name may be registered trademark of related manufacturers.TM and ® may be omitted on the user manual. The pictures on the user manual are just for reference, and there may be some slight difference with the real products. We reserve the rights to make changes without further notice to a product or system described herein to improve reliability, function or design.
