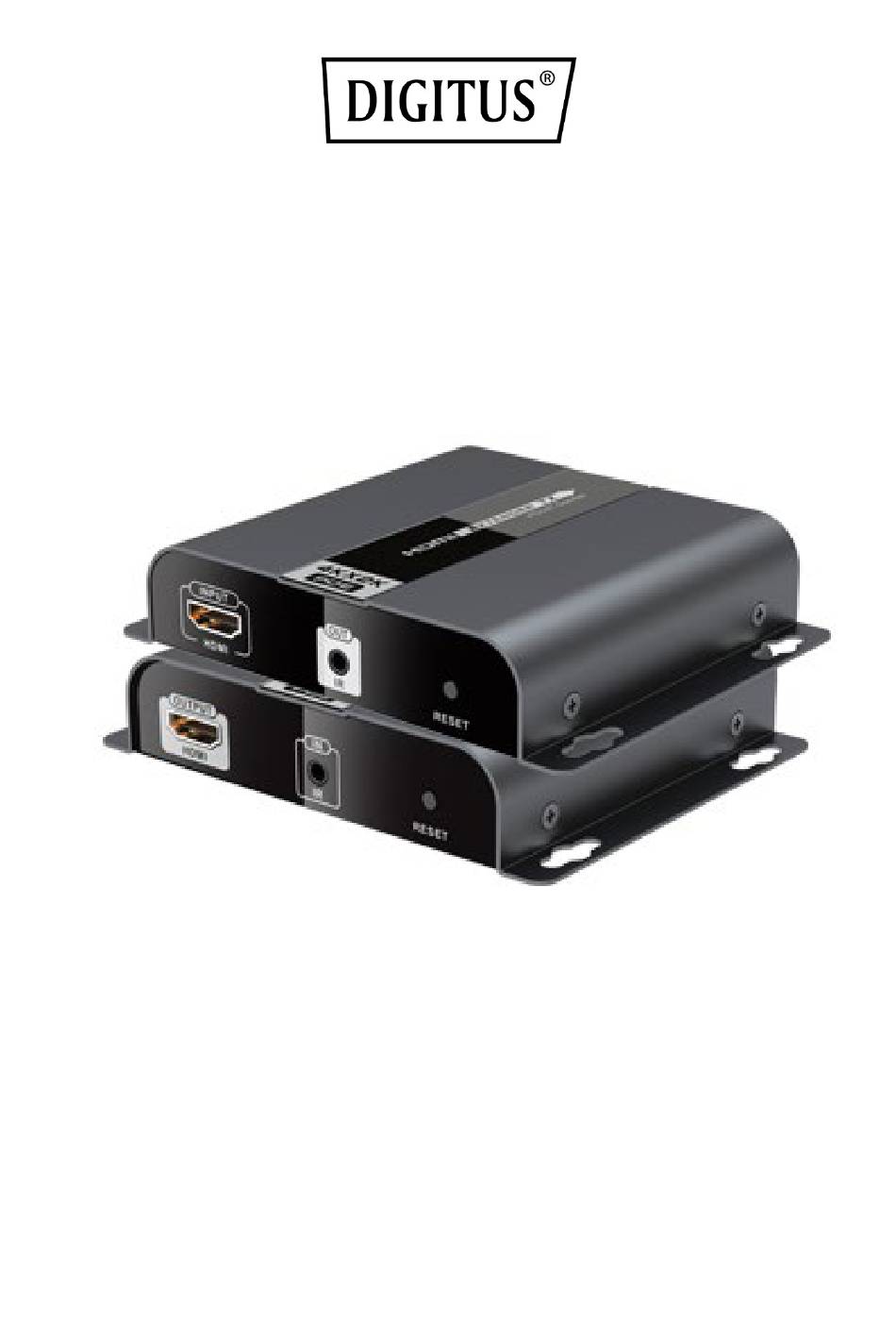

- Page 1 4K HDMI Extender Set over IP/CAT User Manual DS-55124 • DS-55125 (RX unit) Rev. 2...
-
Page 2: Important Safety Notice
Important Safety notice Please read below safety instructions carefully before installation and operation: 1. Please pay attention to all the warnings and hints on this device 2. Do not expose this unit to rain, moisture and liquid 3. Do not put any stuff into the device 4. -
Page 3: Package Contents
Package Contents HDMI EXTENDER HDMI EXTENDER User Manual x1pcs sender TX x1pcs receiver RX x1pcs IR OUT IR IN IR blaster extension IR receiver extension cable*1pcs cable*1pcs Installation Requirements 1. HDMI source device (computer graphics card, DVD, PS3, HD monitoring equipment etc.). 2. -
Page 4: Panel Description

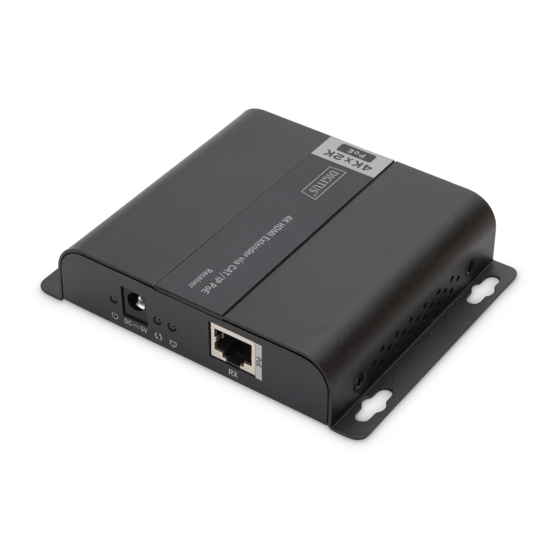

Panel Description 1. HDMI EXTENDER TX (Sender) Reset Power input (DC5V) ① ⑤ HDMI signal input Data transmission light ② ⑥ IR signal output to connect Network link light ③ ⑦ with blaster extension cable HDbitT signal output (PoE Input) ⑧... - Page 5 Installation Procedures 1. Connections 1.1. Point to Point connection: Up to 120 meters transmission distance over single CAT6 (High quality cable can reach 150 meters) HDMI EXTENDER HDMI EXTENDER TX (Sender) RX (Receiver) HDMI IN HDMI OUT PoE Switch CAT5/5E/6 Cable 1.2.
- Page 6 1.3. One-to-many Connection: By using network router/switch, one sender to several receivers, realize extender & splitter function. HDMI OUT HDMI EXTENDER CAT5/5E/6 HDMI IN RX (Receiver) Cable HDMI OUT HDMI EXTENDER HDMI EXTENDER CAT5/5E/6 PoE Switch RX (Receiver) TX (Sender) Cable HDMI OUT HDMI EXTENDER...
-
Page 7: Specification
Specification 4Kx2K HDMI over IP Product type CAT5/5e/6 Extender with PoE feature Up to 120m, support one to many, 4K@30Hz Max transmission rate 10.2Gbps Color Depth 8bit 480i@60Hz, 480p@60Hz, 576i@50Hz, 576p@50Hz, Supported video resolution 720p@50/60Hz, 1080i@50/60Hz, 1080p@50/60Hz, 4K×2K@24/25/30Hz Supported audio formats LPCM HDMI connector Type A, Female, 19-pin... - Page 8 used) is connected, and make sure connecting cable is firmly. Q: TV display “Please check the TX input signal”? A: Please check if there is a HDMI signal input of TX Try to connect the signal source directly to display device to see if there is signal output from source device or change the signal source, HDMI wire and try again Q: When playing 4Kx2K source, screen is back without any content?
