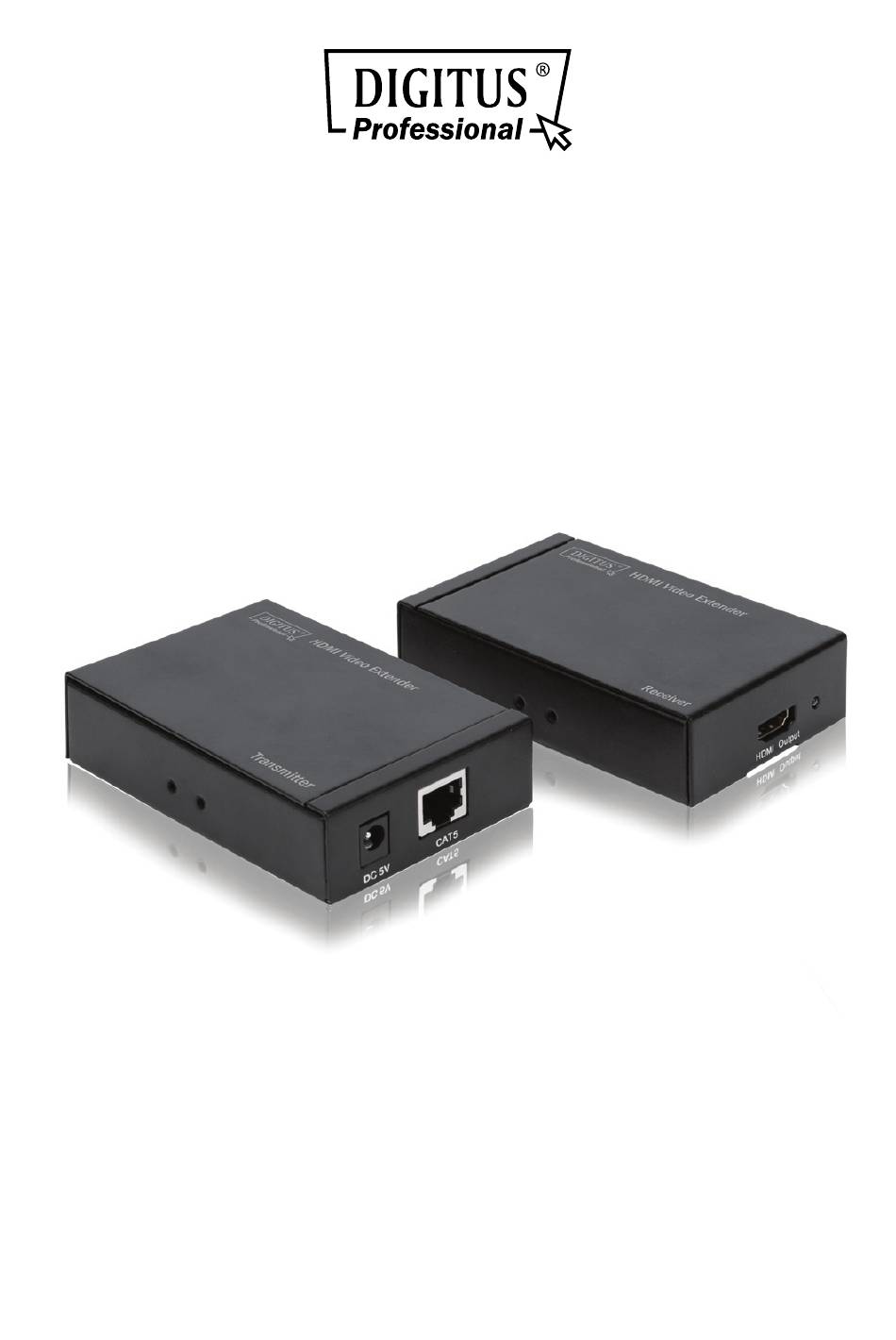

- Page 1 HDMI VIDEO EXTENDER Manual DS-55100...
- Page 2 Single CAT-5e/6 cable 50m 1080p Support 3D 1.0 Introduction The DS-55100 extends the HDTV display up to 50 meters in Full HD by using a simple network cable between a transmitter and receiver unit. It supports a HDMI signal transmission without loss.
-
Page 3: Specifications
3.0 Specifications Signal input HDMI Signal Input Video Signal 0.5-1.0volts/p-p Output video HDMI Signal DTV/HDTV 480i/576i/480P/576P/720P/1080i/1080P CAT-6 cable 50m for 1080p Video. Amplifier Bandwidth 2.25Gbps/225MHz Vertical Frequency Range 50/60Hz Interlaced 480i,576i,1080i Resolutions(50&60Hz) Progressive 430p,576p,720p,1080p Resolutions(50&60Hz) Operating Temperature 0℃ to 70℃ Operating Humidity 10% to 85% RH (no condensation) Storage Temperature... -
Page 4: Package Contents
4.0 Package Contents HDMI Extender, transmitter and receiver unit 2 x Power Supply 5V, 2A 2 sets of mounting brackets with screws Manual 5.0 Panel Descriptions... -
Page 5: Connection And Operation
6.0 Connection and Operation 1) Plug the fixed HDMI cable of the sender into the HDMI input source. 2) Connect two CAT-5e/6 cables to both the output of the transmitter and input of the receiver 3) Plug the fixed HDMI cable of the receiver into the HDMI display (such as: HD-LCD.
