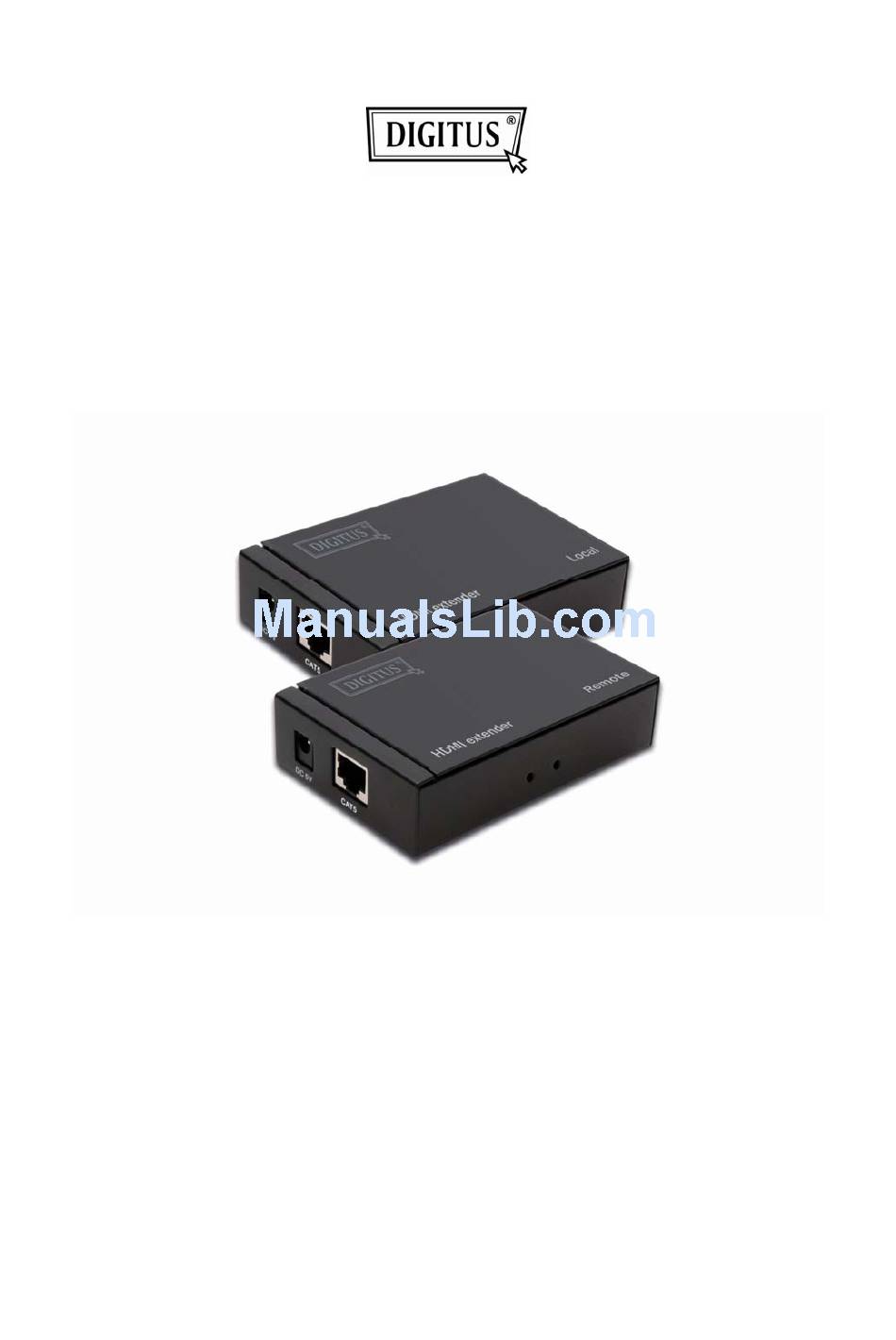

- Page 1 HDMI Video Extender over CAT5 Manual...
-
Page 2: Table Of Contents
Table of Contents 1.0 Introduction……………………………………….……………..1 2.0 Specifications……………………………….…………….….…2 3.0 Package Contents………………………………………….…..3 4.0 Panel Descriptions…………………………………….…….…4 5.0 Connection and operation...........5 １... -
Page 3: Introduction
HDMI Extender over Cat5 Dear customer Thank you for purchasing this product. For optimum performance and safety, please read these instructions carefully before connecting, operating or adjusting this product. Please keep this manual for future reference. 1.0 INTRODUCTION This HDMI Extender uses one piece of UTP cable with cross stand inside to extend the HDTV display up to 50 meters for 1080p. -
Page 4: Specifications
FEATURES This HDMI Extender has many features that enable it to perform in a superior manner. Among those features you will find: One pair as a full functional module, no need of setting. One piece of CAT-5e/6 cable can substitute HDMI cable to achieve long distance transmission. -
Page 5: Package Contents
Regulatory Approvals Converter Unit FCC,CE,UL Power Supply UL,CE,FCC Accessories AC Power Adapter US standard, UK standard and so on User Manual English Version Note: In order to achieve the high transmission quality, please choose the UTP cable with cross stand inside. 2: The cables with lower quality will not achieve the perfect transmission effect and long distance. -
Page 6: Connection And Operation
5.0 Connection and Operation 1) Connect the HDMI input source (such as HD-DVD, PS3, STB ) to the Sender. 2) Connect one piece of CAT-5e/6 cable to both of the output of the Sender and input of the Receiver. 3) Connect the output of Receiver to display ( such as HD-LCD、HD-DLP) 4) Plug one power supply into the Sender and the other into the Receiver.
