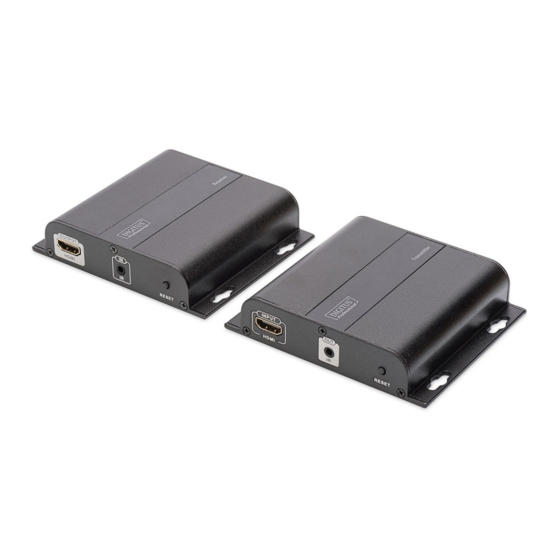

4K HDMI Extender via CAT/IP (Set)
Manual
DS-55122 Rev. 2
Introduction
This HDMI Signal Extender extends your HDMI video/audio signal with of
resolution of 4K2K/30Hz up to 120m (394 feet) via single network cable.
Supports IR signal transmission, to control media playback of the signal
source device at the display location.
Advertisement
Related Manuals for Digitus DS-55122
Summary of Contents for Digitus DS-55122

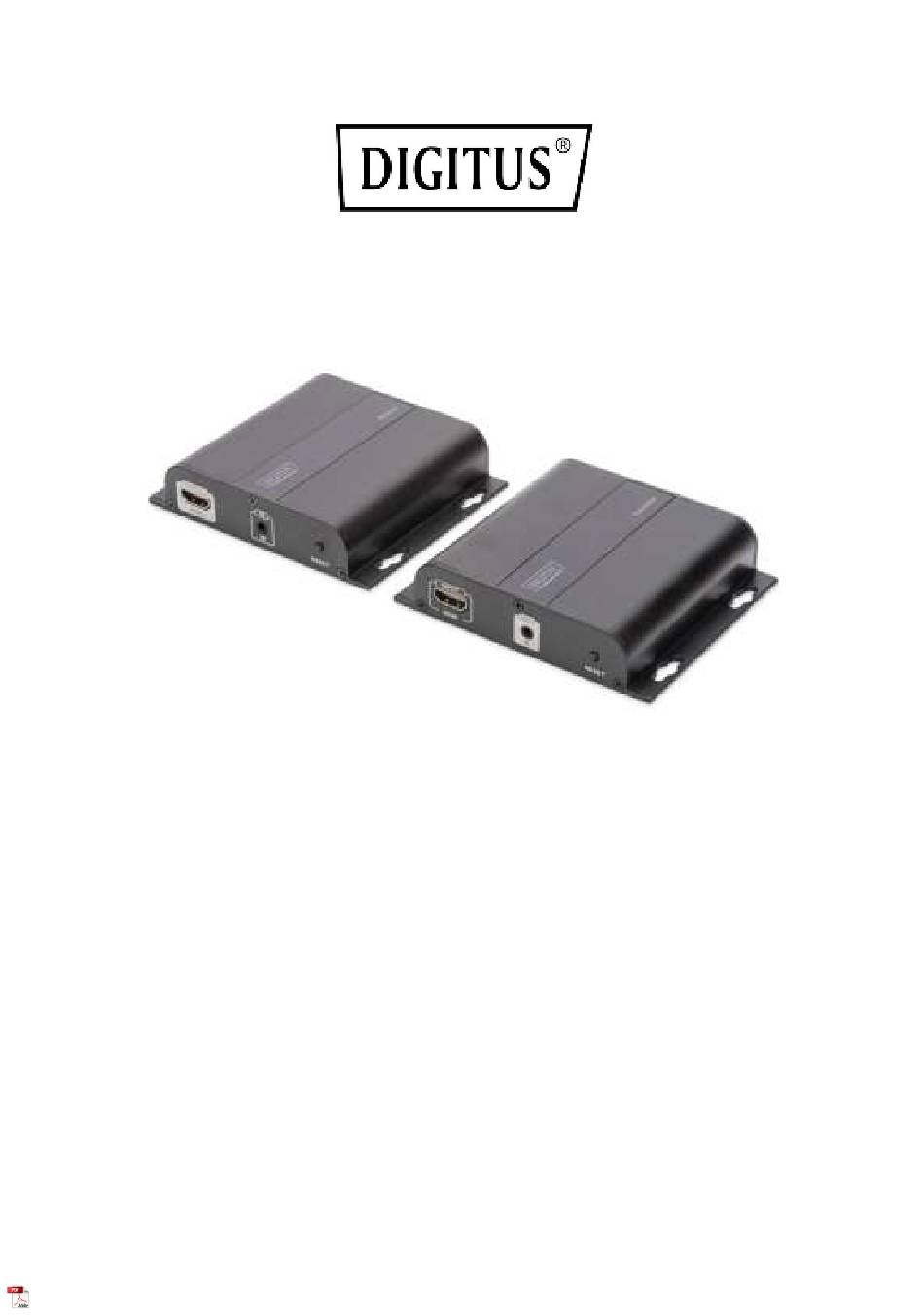

- Page 1 4K HDMI Extender via CAT/IP (Set) Manual DS-55122 Rev. 2 Introduction This HDMI Signal Extender extends your HDMI video/audio signal with of resolution of 4K2K/30Hz up to 120m (394 feet) via single network cable. Supports IR signal transmission, to control media playback of the signal...
-
Page 2: Important Safety Notice
Important safety notice Please read below safety instructions carefully before installation and operation: 1. Please pay attention to all the warnings and hints on this device. 2. Do not expose this unit to rain, moisture and liquid. 3. Do not put any stuff into the device. 4. -
Page 3: Specification
Specification Items Specifications HDMI Signal HDMI1.4, compatible with HDCP1.4 transport protocol HDbitT Support resolutions 480i@60Hz, 480p@60Hz, 576i@50Hz, 576p@50Hz, 720p@50/60Hz, 1080i@50/60Hz, 1080p@50/60Hz, 4Kx2K@24/25/30Hz Network Cable UTP/STP Cat5/5e/6 Transmission distance Up to 120 meters transmission distance for 1080p 60Hz Full HD over single CAT6 IR signal Supports 20~60KHz IR devices Working Temperature... -
Page 4: Panel Description
Panel Description 1. HDMI EXTENDER TX (Sender) ① HDMI signal input Power input (DC5V) ⑤ ② IR signal output to connect with ⑥ Data transmission light blaster extension cable ⑦ Network link light ③ ⑧ Reset HDbitT signal output ④ Power Light 2. -
Page 5: Installation
Installation 2. Connections 2.1 Point to Point connection: Up to 120 meters transmission distance over single CAT 6 (High quality cable can reach 150 meters). HDMI EXTENDER HDMI EXTENDER TX (Sender) RX (Receiver) HDMI IN HDMI OUT CAT5/5E/6 Cable 2.2 Network Switch/Router Connection: By using network switch/router/repeater, realize unlimited extension/distance. - Page 6 2.3 One-to-many Connection: By using network switch/router, one sender to several receivers (up 253 receiver units) HDMI OUT HDMI EXTENDER HDMI IN RX (Receiver) CAT5/5E/6 Cable HDMI OUT HDMI EXTENDER HDMI EXTENDER CAT5/5E/6 Cable Switch RX (Receiver) TX (Sender) HDMI OUT HDMI EXTENDER RX (Receiver)
- Page 7 Q: TV display “Waiting for connection” on the right corner? A: Please check if the power supply of TX (Sender) and switcher (If used) is connected, and make sure connecting cable is firmly. Q: TV display “Please check the TX input signal”? A: 1) Please check if there is a HDMI signal input of TX.
