Defining TP-873XR HDMI 4K Line
Transmitter

TP-873XR HDMI 4K Line Transmitter

This section defines TP-873XR.
# Feature
IN LED
1
OUT LED
2
ON LED
3
HDMI™ IN Connector
4
DGKAT-2 OUT RJ-45 Connector
5
SETUP DIP-switches
6
IR 3.5mm Mini Jack Connector
7
RS-232 (G, Rx, Tx) 3-pin
8
Terminal Block Connector
12V DC Power Connector
9
TP-873XR / TP-874XR – Defining TP-873XR HDMI 4K Line Transmitter

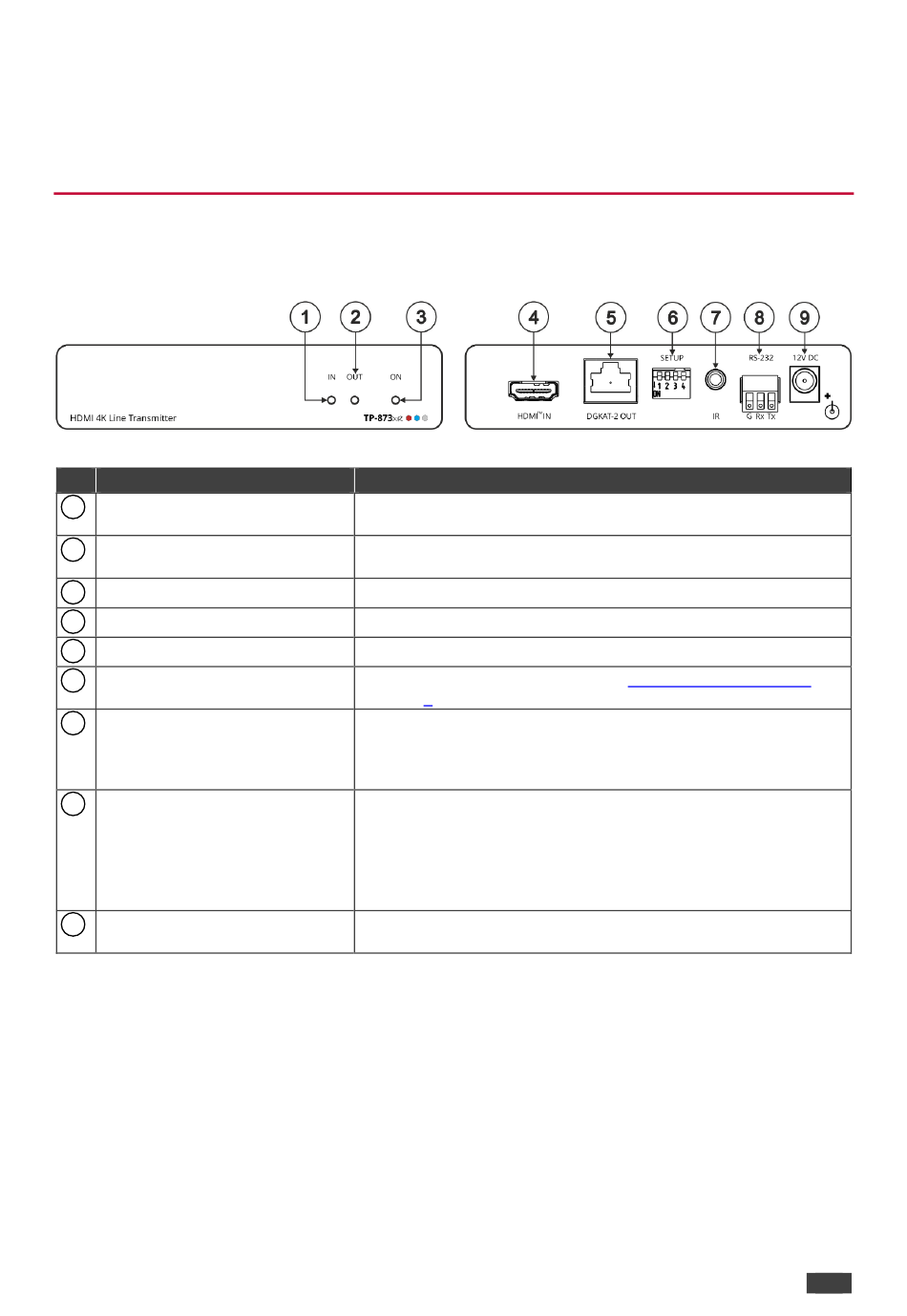

Figure 1: TP-873XR HDMI 4K Line Transmitter
Function
Lights green when an active source device input signal is
detected.
Lights green when an active, far-end sink (acceptor) output signal
is detected via the DGKAT link.
Lights green when the device receives power.
Connect to an HDMI source.
Connect to the DGKAT-2 IN RJ-45 connector on the TP-874XR.
Set the operation DIP-switches (see
on page 9).
Connect to an external infrared emitter / sensor for IR signal
bidirectional extension to control a remote device. For example,
connect to an external infrared sensor to control the HDMI OUT
acceptor that is connected to TP-874XR.
Connect to an RS-232 port for serial signal bidirectional extension
to the receiver. For example, connect to an
device to serially control the HDMI OUT acceptor that is
connected to TP-874XR.
For firmware upgrade via the RS-232 port, contact Kramer Tech
Support.
12V DC connector for powering the unit when it is not powered by
TP-874XR via the DGKAT link.
