Setting the DIP-Switches

The DIP-switches are used to:
•
Set the compression levels.
•
Determine IR frequency mode.
•
Enable RS-232 signal extension.
•
Upgrade the firmware.
All the DIP-switches are set to OFF (up) by default.
# Feature
1 Compression Options
2 IR Frequency Mode
3 RS-232 Mode
4 FW Upgrade
TP-873XR / TP-874XR – Connecting TP-873XR/TP-874XR

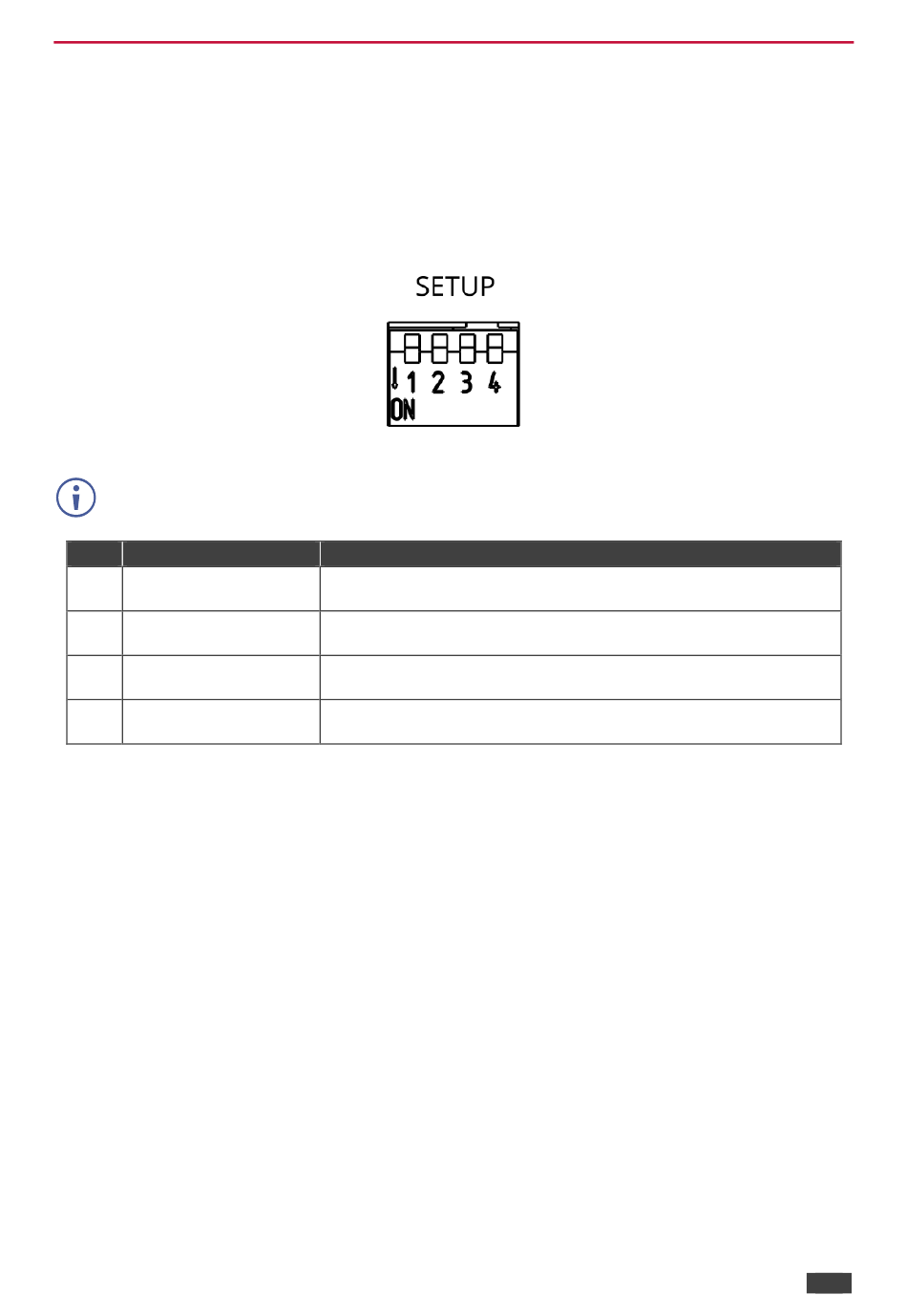

Figure 4: Setup DIP-Switches
DIP-switch Settings
OFF (up) – Standard compression level.
ON (down) – High compression level for additional range extension.
OFF (up) – Frequency is 38kHz.
ON (down) – Wide-range modulated IR frequency pass-through.
OFF (up) – Serial extension.
ON (down) – Serial device service mode.
OFF (up) – Normal operation mode.
ON (down) – FW upgrade mode (DIP-switch 3 needs to be ON).
