Page 1: User Manual

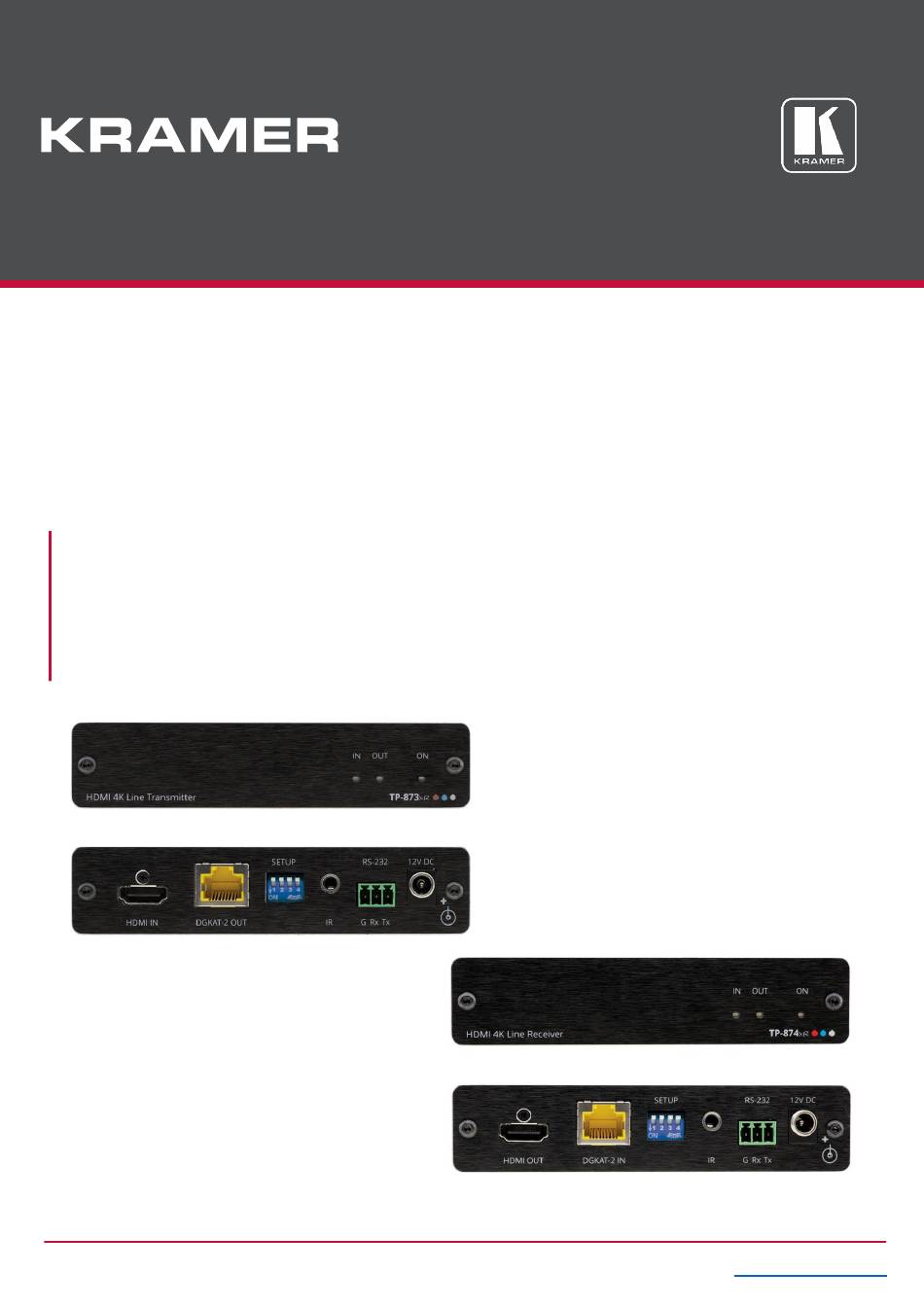

USER MANUAL MODELS: TP-873XR HDMI 4K Line Transmitter TP-874XR HDMI 4K Line Receiver P/N: 2900-301287 Rev 1 www.KramerAV.com... -
Page 2: Table Of Contents
Kramer Electronics Ltd. Contents Introduction Getting Started Overview Typical Applications Defining TP-873XR HDMI 4K Line Transmitter TP-873XR HDMI 4K Line Transmitter TP-874XR HDMI 4K Line Receiver Mounting TP-873XR/TP-874XR Connecting TP-873XR/TP-874XR Connecting to TP-873XR/TP-874XR via RS-232 Wiring the RJ-45 Connectors Setting the DIP-Switches Technical Specifications TP-873XR / TP-874XR –... -
Page 3: Introduction
Kramer Electronics Ltd. Introduction Welcome to Kramer Electronics! Since 1981, Kramer Electronics has been providing a world of unique, creative, and affordable solutions to the vast range of problems that confront the video, audio, presentation, and broadcasting professional on a daily basis. In recent years, we... -
Page 4: Overview
European Advanced Recycling Network (EARN) and will cover any costs of treatment, recycling and recovery of waste Kramer Electronics branded equipment on arrival at the EARN facility. For details of Kramer’s recycling arrangements in your particular country go to our recycling pages at www.kramerav.com/support/recycling. -
Page 5: Typical Applications
• Easy Installation – Single twisted-pair cable for signal and power wiring. Compact DigiTOOLS® fan-less enclosure for device-back mounting, or side-by-side mounting of 3 units in a 1U rack space with the optional, compatible Kramer rack adapter. Typical Applications TP-873XR... -

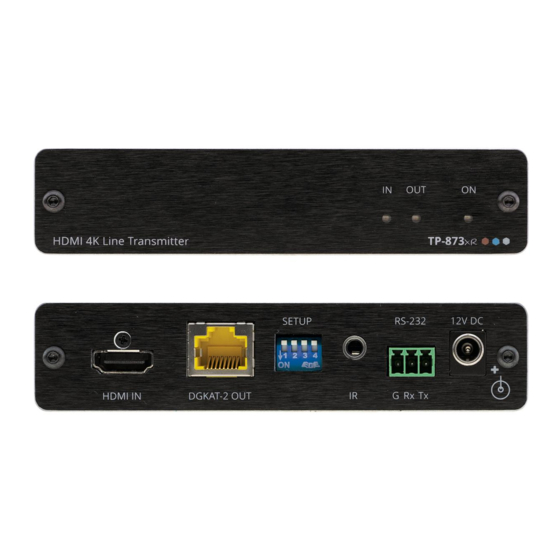

Page 6: Defining Tp-873Xr Hdmi 4K Line Transmitter
For firmware upgrade via the RS-232 port, contact Kramer Tech Support. 12V DC Power Connector 12V DC connector for powering the unit when it is not powered by TP-874XR via the DGKAT link. TP-873XR / TP-874XR – Defining TP-873XR HDMI 4K Line Transmitter... -
Page 7: Tp-874Xr Hdmi 4K Line Receiver
Lights green when the device receives power. HDMI™ OUT Connector Connect to an HDMI acceptor. DGKAT-2 IN RJ-45 Connector Connect to the DGKAT-2 OUT RJ-45 connector on the TP-873XR. SETUP DIP-switches Set the operation DIP-switches (see Setting the DIP-Switches on page IR 3.5mm Mini Jack Connector... -
Page 8: Mounting Tp-873Xr/Tp-874Xr
Kramer Electronics Ltd. Mounting TP-873XR/TP-874XR This section provides instructions for mounting TP-873XR/TP-874XR. Before installing, verify that the environment is within the recommended range: • Operation temperature – 0 to 40C (32 to 104F). • Storage temperature – -40 to +70C (-40 to +158F). -
Page 9: Connecting Tp-873Xr/Tp-874Xr
Figure 3: Connecting to the TP-873XR/TP-874XR Rear Panel To connect the TP-873XR/TP-874XR as illustrated in the example in Figure 1. On TP-873XR, connect an HDMI source (for example, a 4K Blu-ray player) to the HDMI™ IN connector 2. On TP-874XR, connect the HDMI™ OUT connector to an acceptor (for example, a 4K display). -
Page 10: Connecting To Tp-873Xr/Tp-874Xr Via Rs-232
These extenders are not Blue / White compatible with HDBaseT technologies. Green Prior to signal extension, ensure that the Brown / White extension line cable is lying straight and not Brown coiled. TP-873XR / TP-874XR – Connecting TP-873XR/TP-874XR... -
Page 11: Setting The Dip-Switches
OFF (up) – Serial extension. RS-232 Mode ON (down) – Serial device service mode. OFF (up) – Normal operation mode. FW Upgrade ON (down) – FW upgrade mode (DIP-switch 3 needs to be ON). TP-873XR / TP-874XR – Connecting TP-873XR/TP-874XR... -
Page 12: Technical Specifications
Net Weight (each) 0.25kg (0.6lbs) approx. Shipping Weight 0.68kg (1.5lbs) approx. Accessories Included 1 Power adapter, 1 power cord and 1 bracket set per device Specifications are subject to change without notice at www.kramerav.com TP-873XR / TP-874XR – Technical Specifications... - Page 13 Electronics products, this product must be insured during shipment, with the insurance and shipping charges prepaid by you. If this product is returned uninsured, you assume all risks of loss or damage during shipment. Kramer Electronics will not be responsible for any costs related to the removal or re- installation of this product from or into any installation.
- Page 14 SAFETY WARNING Disconnect the unit from the power supply before opening and servicing For the latest information on our products and a list of Kramer distributors, visit our Web site where updates to this user manual may be found. We welcome your questions, comments, and feedback.
