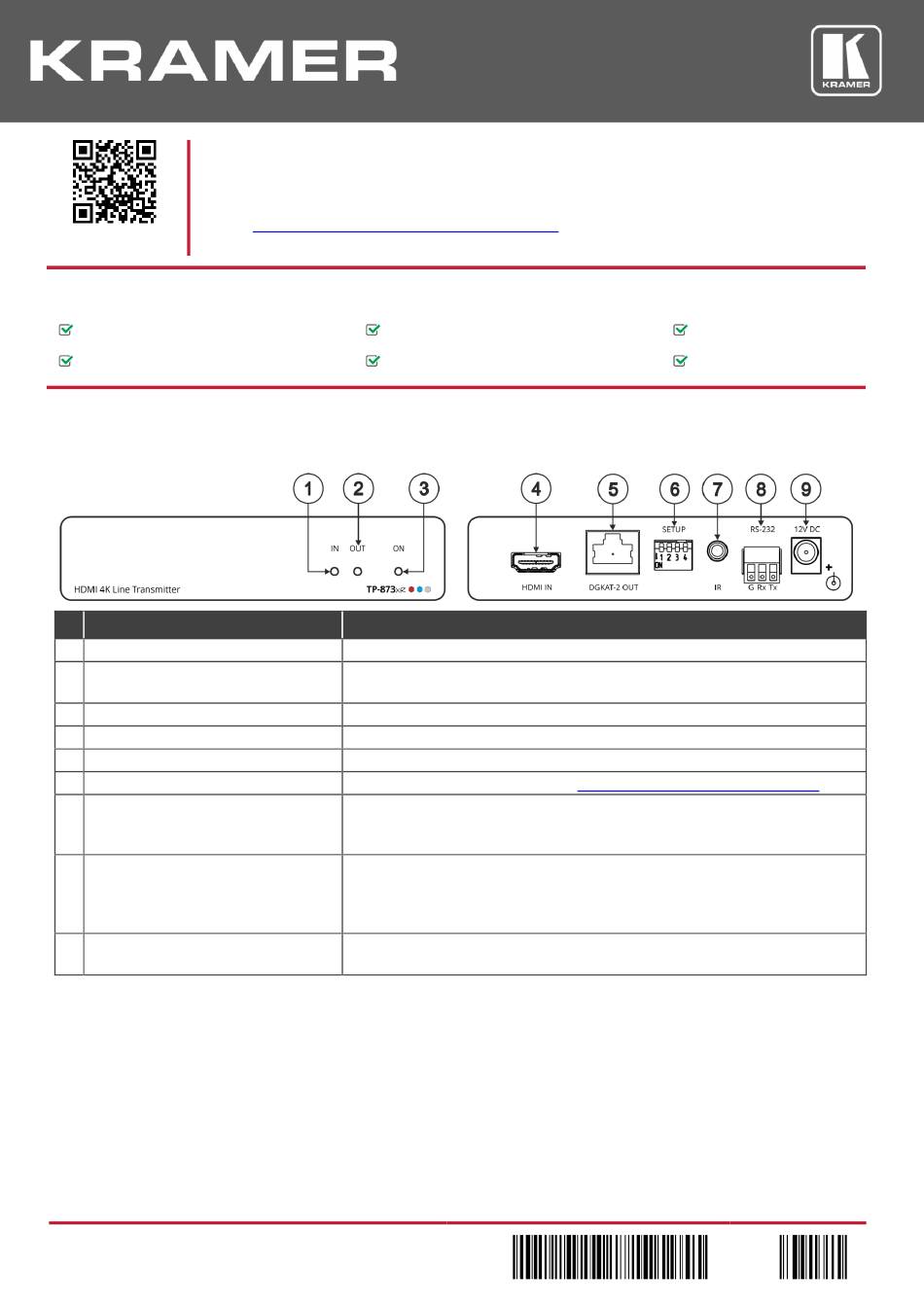

TP-873xr/TP-874xr Quick Start Guide
This guide helps you install and use your TP-873xr/TP-874xr for the first time.
Go to
Scan for full manual
firmware upgrades are available.
Step 1: Check what's in the box
TP-873xr HDMI 4K Line Transmitter or
TP-874xr HDMI 4K Line Receiver
Step 2: Get to know your TP-873xr and TP-874xr
TP-873xr
#
Feature
1
IN LED
2
OUT LED
3
ON LED
4
HDMI IN Connector
5
DGKAT-2 OUT RJ-45 Connector
6
SETUP DIP-switches
7
IR 3.5mm Mini Jack Connector
8
RS-232 (G, Rx, Tx) 3-pin Terminal
Block Connector
9
12V DC Power Connector
TP-873xr/TP-874xr Quick Start (P/N: 2900-301014QS REV 1)
www.kramerav.com/downloads/TP-873xr, TP-874xr
1 Power adapter and cord per device
4 Rubber feet
Function
Lights green when an active source device input signal is detected.
Lights green when an active, far-end sink (acceptor) output signal is detected via
the DGKAT link.
Lights green when the device receives power.
Connect to an HDMI source.
Connect to the DGKAT 2 IN RJ-45 connector on the TP-874xr.
Set the operation DIP-switches (see
Connect to an external infrared emitter / sensor for IR signal bidirectional
extension to control a remote device. For example, connect to an external infrared
sensor to control the HDMI OUT acceptor that is connected to TP-874xr.
Connect to a laptop to perform firmware upgrade or to an RS-232 port for serial
signal bidirectional extension to the receiver. For example, connect to an SL-240C
controller device to serially control the HDMI OUT acceptor that is connected to
TP-874xr.
12V DC connector for powering the unit when it is not powered by TP-874xr via
the DGKAT link.
to download the latest user manual and check if
Step 4: Connect the inputs and
P/N:
2 9 0 0 - 3 0 1 0 1 4 QS
1 Quick start guide
1 Bracket set
outputs).
Rev:
1
Advertisement
Related Manuals for Kramer TP-873xr
Summary of Contents for Kramer TP-873xr
- Page 1 TP-873xr/TP-874xr Quick Start Guide This guide helps you install and use your TP-873xr/TP-874xr for the first time. Go to www.kramerav.com/downloads/TP-873xr, TP-874xr to download the latest user manual and check if Scan for full manual firmware upgrades are available. Step 1: Check what’s in the box...
- Page 2 TP-874xr). Step 4: Connect the inputs and outputs Always switch OFF the power on each device before connecting it to your TP-873xr/TP-874xr. For best results, we recommend that you always use Kramer high-performance cables to connect AV equipment to TP-873xr/TP-874xr.
- Page 3 Step 5: Connect the power Connect the 12V power adapter to either TP-873xr or TP-874xr and plug it into the mains electricity. This device provides power to its counterpart via DGKat 2.0. Each device can provide or accept power over cable (PoC) via DGKat 2.0.
-
Page 4: Technical Specifications
Compliance HDMI 2.0, HDCP 2.2, HDR 10 Extension Range We recommend that you use Kramer shielded cables to achieve optimum extension ranges. Standard Compression Level Up to 35m (110ft) at 4K@60Hz (4:4:4) Up to 70m (230ft) at 4K@60Hz (4:2:0) or full HD (1080p @60Hz 36bpp)
