- Page 1 Kramer Electronics, Ltd. USER MANUAL Models: TP-141 XGA/Audio Line Transmitter TP-142 XGA/Audio Line Receiver...
-
Page 2: Table Of Contents
Figure 6: CAT 5 PINOUT Tables Table 1: TP-141 XGA/Audio Line Transmitter Features Table 2: Features of the TP-141 Internal Polarity Switches Table 3: TP-142 XGA/Audio Line Receiver (Topside) Features Table 4: TP-142 XGA/Audio Line Receiver (Underside) Features Table 5: CAT 5 PINOUT... -
Page 3: Introduction
Scan Converters and Scalers; GROUP 8: Cables and Connectors; GROUP 9: Room Connectivity; GROUP 10: Accessories and Rack Adapters; GROUP 11: Sierra Products 2 Download up-to-date Kramer user manuals from the Internet at this URL: http://www.kramerelectronics.com 3 The complete list of Kramer cables is on our Web site at http://www.kramerelectronics.com... -
Page 4: Quick Start
Getting Started Quick Start This quick start chart summarizes the basic setup and operation steps. KRAMER: SIMPLE CREATIVE TECHNOLOGY... -
Page 5: Overview
50m (150ft) of each other Note: The TP-141 and TP-142 are not compatible with existing Kramer TP units such as the TP-121, TP-122, and so on. -
Page 6: Shielded Twisted Pair (Stp) / Unshielded Twisted Pair (Utp)
We recommend that you use shielded twisted pair (STP) cable. There are different levels of STP cable available, and we advise you to use the best quality STP cable that you can afford. Our STP skew-free cable: Kramer BC-SXTP, is intended for transmitting VGA signals; our non-skew-free cable: Kramer BC-STP, is intended for digital signals. -
Page 7: Your Tp-141 / Tp-142

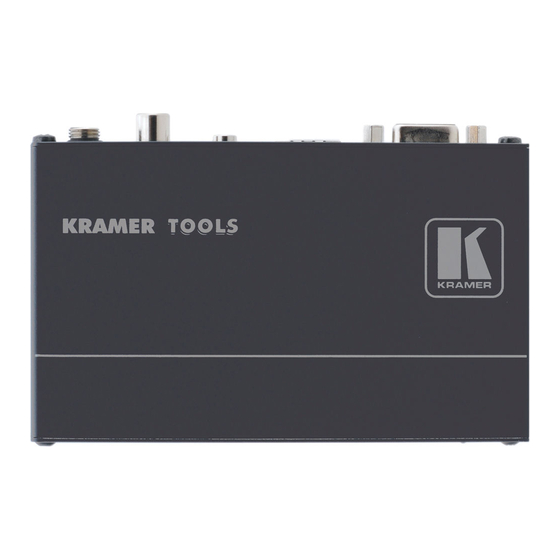

Receiver. 4.1.1 Your TP-141 XGA/Audio Line Transmitter (Topside) The TP-141 is an XGA/stereo audio line transmitter that receives an XGA signal and an unbalanced stereo analog audio signal, codes them, and transmits them over CAT 5 cable to a TP-142 receiver. -
Page 8: 4.1.2 The Tp-141 Internal Polarity Switches
Figure 2 and Table 2 define the internal sync polarity switches inside the TP-141. Note: If adjustment is necessary, open the TP-141 unit to gain access to the Vs and Hs Polarity switches. After setting the switches, close the TP-141 unit. -
Page 9: Your Tp-142 Xga/Audio Line Receiver
4.2.1 Your TP-142 XGA/Audio Line Receiver (Topside) The TP-142 is an XGA/audio line receiver that receives the coded CAT 5 signal transmitted by a TP-141, decodes it and converts it to XGA, stereo analog and S/PDIF digital audio outputs. Figure 3 and Table 3 define the topside of the TP-142 XGA/Audio Line... -
Page 10: Your Tp-142 Xga/Audio Line Receiver (Underside)
Your TP-141 / TP-142 Table 3: TP-142 XGA/Audio Line Receiver (Topside) Features Feature Function 12V DC +12V DC connector for powering the unit S/PDIF RCA connector Connects to the digital audio acceptor ANALOG 3.5mm Mini Connects to the analog audio acceptor... -
Page 11: Connecting The Xga/Audio Line Transmitter/Receiver
, on the underside 1 Not supplied. The complete list of Kramer cables is on our Web site at http://www.kramerelectronics.com 2 Use a screwdriver to carefully rotate the trimmer, adjusting the appropriate level 3 By default, both switches are set to the left (for negative V SYNC and H SYNC polarity) -
Page 12: Figure 5: Connecting The Xga/Audio Line Transmitter/Receiver System
Connecting the XGA/Audio Line Transmitter/Receiver Figure 5: Connecting the XGA/Audio Line Transmitter/Receiver System KRAMER: SIMPLE CREATIVE TECHNOLOGY... -
Page 13: 5.1 Wiring The Cat 5 Line In / Line Out Rj-45 Connectors
Connecting the XGA/Audio Line Transmitter/Receiver 5.1 Wiring the CAT 5 LINE IN / LINE OUT RJ-45 Connectors Table 5 and Figure 6 define the UTP CAT 5 PINOUT, using a straight pin to pin cable with RJ-45 connectors: Figure 6: CAT 5 PINOUT Table 5: CAT 5 PINOUT EIA /TIA 568A EIA /TIA 568B... -
Page 14: Technical Specifications
Technical Specifications Technical Specifications The technical specifications are shown in Table 6: Table 6: TP-141/TP-142 Technical Specifications TP-141 TP-142 INPUTS: Video: 1 computer graphics video on a 1 RJ-45 LINE IN connector 15-pin HD connector Audio: 1 audio analog 3.5mm mini jack... - Page 17 For the latest information on our products and a list of Kramer distributors, visit our Web site: www.kramerelectronics.com where updates to this user manual may be found. We welcome your questions, comments and feedback. Safety Warning: Disconnect the unit from the power supply before opening/servicing.
