Scan for full manual
Step 1: Check what's in the box
TP 873xr
HDMI 4K Line Transmitter or
TP 874xr
HDMI 4K Line Receiver
IMPORTANT NOTICE!
We highly recommend using only Kramer UNIKAT cables with these products. If using 3
shield must be soldered to the connectors for the products to function properly. Do not use any jumpers, unshielded wall plates or mid-
span cable connections. These extenders are not compatible with HDBaseT technologies. Prior to signal extension, ensure that the
extension line cable is lying straight and not coiled.

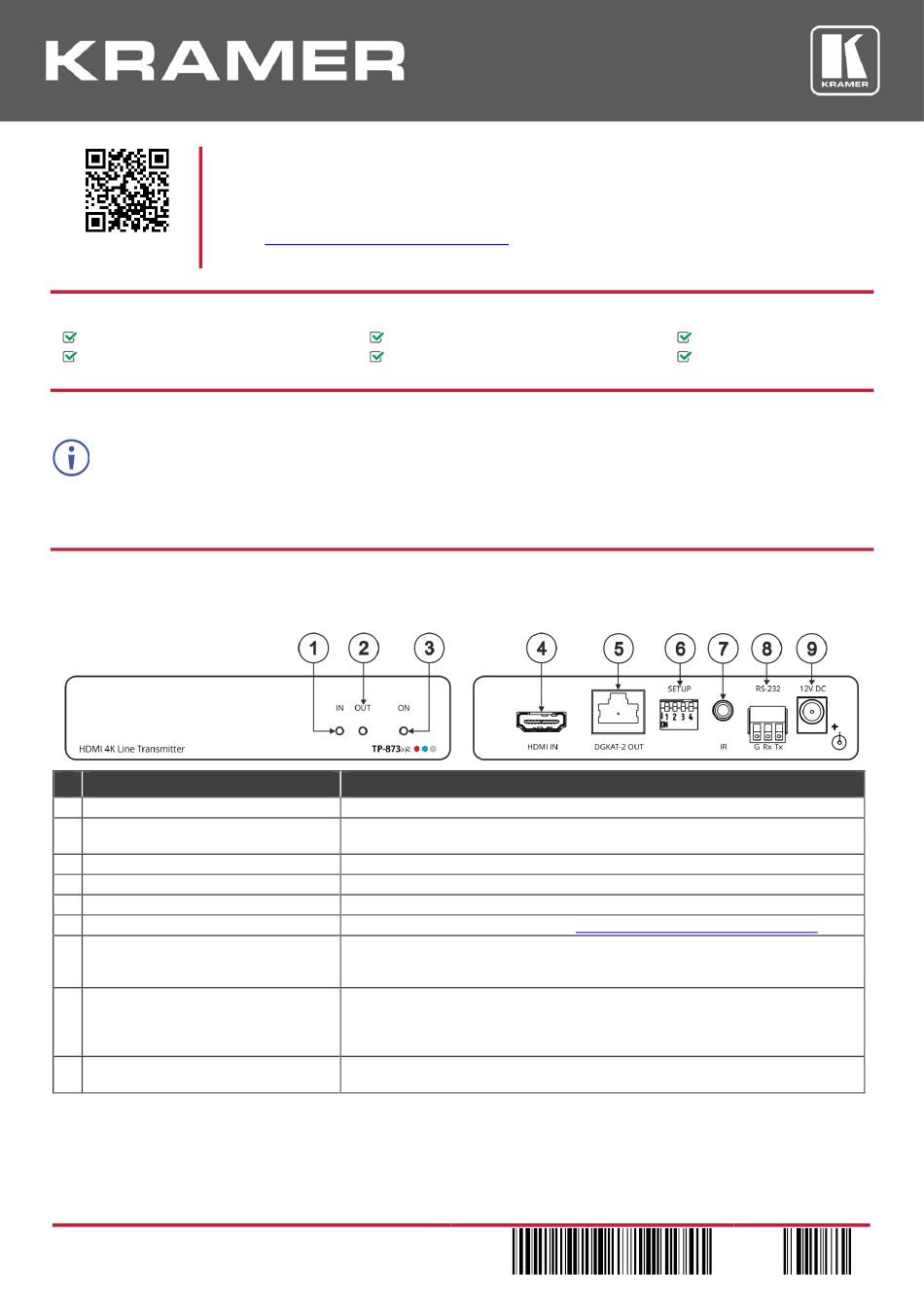

Step 2: Get to know your TP 873xr and TP 874xr
TP 873xr
#
Feature
1
IN LED
2
OUT LED
3
ON LED
4
HDMI IN Connector
5
DGKAT-2 OUT RJ-45 Connector
6
SETUP DIP-switches
7
IR 3.5mm Mini Jack Connector
8
RS-232 (G, Rx, Tx) 3-pin Terminal
Block Connector
9
12V DC Power Connector
TP-873xr/TP-874xr Quick Start
TP-873xr/TP-874xr Quick Start Guide
This guide helps you install and use your
Go to
www.kramerav.com/downloads/TP-873xr
upgrades are available.
1 Power adapter and cord per device
4 Rubber feet
Function
Lights green when an active source device input signal is detected.
Lights green when an active, far-end sink (acceptor) output signal is detected via
the DGKAT link.
Lights green when the device receives power.
Connect to an HDMI source.
Connect to the DGKAT 2 IN RJ-45 connector on the
Set the operation DIP-switches (see
Connect to an external infrared emitter / sensor for IR signal bidirectional
extension to control a remote device. For example, connect to an external infrared
sensor to control the HDMI OUT acceptor that is connected to
Connect to a laptop to perform firmware upgrade or to an RS-232 port for serial
signal bidirectional extension to the receiver. For example, connect to an SL-
240C controller device to serially control the HDMI OUT acceptor that is
connected to
12V DC connector for powering the unit when it is not powered by
the DGKAT link.
TP-873xr/TP-874xr
for the first time.
to download the latest user manual and check if firmware
rd
party shielded CAT-6A cables, both ends of the
Step 4: Connect the inputs and
TP
874xr.
P/N: 2 9 0 0 - 3 0 1 0 1 4 QS
1 Quick start guide
1 Bracket set
TP 874xr
outputs).
TP 874xr
TP 874xr
via
Rev: 2
Advertisement
Related Manuals for Kramer TP-873xr
Summary of Contents for Kramer TP-873xr
-
Page 1: Important Notice
1 Bracket set IMPORTANT NOTICE! We highly recommend using only Kramer UNIKAT cables with these products. If using 3 party shielded CAT-6A cables, both ends of the shield must be soldered to the connectors for the products to function properly. Do not use any jumpers, unshielded wall plates or mid- span cable connections. - Page 2 • Reliable earthing of rack-mounted equipment should be maintained. Step 4: Connect the inputs and outputs Always switch OFF the power on each device before connecting it to your TP-873xr/TP-874xr. To achieve specified extension distances, use the recommended Kramer cables available at www.kramerav.com/product/TP-873xr.
- Page 3 Warning: • Use only the power cord that is supplied with the unit. • Disconnect the power and unplug the unit from the wall before installing. Step 6: Operate TP-873xr/TP-874xr Upgrade TP-873xr/TP-874xr firmware, by RS-232 serial commands transmitted by a PC, or laptop.
-
Page 4: Technical Specifications
3840x2160@60Hz (4:4:4) 24bpp Compliance HDMI 2.0, HDCP 2.2, HDR 10 Extension Range We recommend that you use Kramer shielded cables to achieve optimum extension ranges. Standard Compression Up to 35m (110ft) at 4K@60Hz (4:4:4) Level Up to 70m (230ft) at 4K@60Hz (4:2:0) or full HD (1080p @60Hz 36bpp)
