Page 1: User Manual
K R A ME R E LE CT R O N IC S L TD . USER MANUAL MODELS: TP-121xl UXGA/Audio Line Transmitter TP-122xl UXGA/Audio Line Receiver P/N: 2900-300261 Rev 4... -
Page 3: Table Of Contents
Figure 2: TP-121xl UXGA/Audio Line Transmitter Rear Panel Figure 3: TP-122xl UXGA/Audio Line Receiver Front Panel Figure 4: TP-122xl UXGA/Audio Line Receiver Rear Panel Figure 5: Connecting the TP-121xl Transmitter and TP-122xl Receiver Figure 6: TP Pinout Wiring TP-121xl/TP-122xl – Contents... -
Page 4: Introduction
Introduction Welcome to Kramer Electronics! Since 1981, Kramer Electronics has been providing a world of unique, creative, and affordable solutions to the vast range of problems that confront video, audio, presentation, and broadcasting professionals on a daily basis. In recent years, we have redesigned and upgraded most of our... -
Page 5: Getting Started
Achieving the Best Performance To achieve the best performance: Use only good quality connection cables (we recommend Kramer high- performance, high-resolution cables) to avoid interference, deterioration in signal quality due to poor matching, and elevated noise levels (often associated with low quality cables) ... -
Page 6: About The Power Connect™ Feature
STP cable. There are different levels of STP cable available, and we advise you to use the best quality STP cable that you can afford. Our non-skew-free cable, Kramer BC-STP is intended for analog signals where skewing is not an issue. -
Page 7: Overview
Overview The TP-121xl and TP-122xl is a high-performance, TP (Twisted Pair) transmitter and receiver pair for transmitting computer graphics video and unbalanced stereo audio signals over extended distances using CAT 5/6 cable. The TP-121xl and TP-122xl together form an extended computer graphics/audio line transmission and reception system. -
Page 8: Defining The Tp-121Xl Transmitter And Tp-122Xl Receiver
Computer graphics video Unbalanced stereo audio The TP-121xl encodes the video and audio signals and transmits them over STP cable to a TP-122xl receiver. The TP-122xl accepts the encoded signal over STP from the TP-121xl and outputs computer graphics video, unbalanced stereo audio and digital audio. -

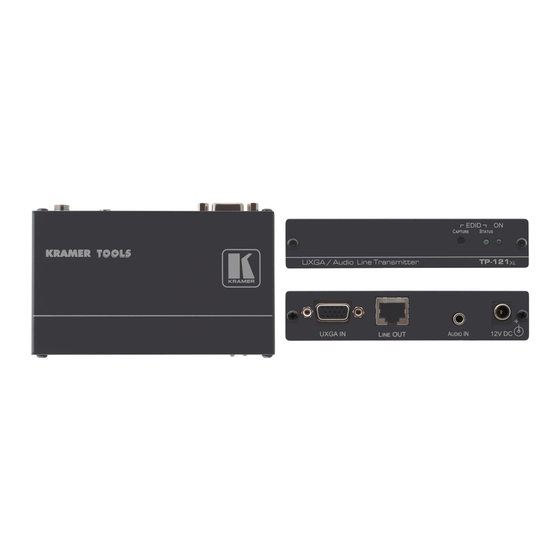

Page 9: Figure 2: Tp-121Xl Uxga/Audio Line Transmitter Rear Panel
Figure 2 defines the rear panel of the TP-121xl. Figure 2: TP-121xl UXGA/Audio Line Transmitter Rear Panel Feature Function UXGA IN 15-pin HD Connect to a computer graphics source (see Section Connector (F) LINE OUT RJ-45 Connect to the Line In RJ-45 connector on the TP-122xl... -
Page 10: Defining The Tp-122Xl Uxga/Audio Line Receiver
UXGA OUT 15-pin HD Connect to a computer graphics video acceptor (see Section Connector (F) LINE IN RJ-45 Connector Connect to the Line Out RJ-45 connector on the TP-121xl (See Section 2.2) ANALOG 3.5mm Connect to an unbalanced, stereo audio acceptor (see... -
Page 11: Connecting The Tp-121Xl Transmitter And Tp-122Xl Receiver
Figure 5: Connecting the TP-121xl Transmitter and TP-122xl Receiver To connect the TP-121xl and the TP-122xl as illustrated in Figure 1. On the TP-121xl, connect: ... - Page 12 (for example, an AV display system with speakers) The Audio Out S/PDIF RCA connector to the digital audio acceptor, (for example, a DAT recorder) 3. Using STP cabling, connect the TP-121xl Line Out RJ-45 connector to the TP-122xl Line In RJ-45 connector (see Section 2.2).
-
Page 13: Operating The Tp-121Xl And Tp-122Xl
Operating the TP-121xl and TP-122xl Capturing the EDID The TP-121xl is programmed with a default EDID. The default EDID can be replaced with the EDID from a display device. To capture a new EDID: With the display device connected to the TP-121xl, press the EDID Capture button on the front panel. -
Page 14: Wiring The Twisted Pair Rj-45 Connectors
Brown Pair 1 4 and 5 Pair 2 1 and 2 Pair 3 3 and 6 Warning: Using a TP cable that is incorrectly wired will cause permanent damage to the device TP-121xl/TP-122xl - Wiring the Twisted Pair RJ-45 Connectors... -
Page 15: Technical Specifications
