QUANTUM™ LX CONDENSER/VESSEL CONTROL PANEL

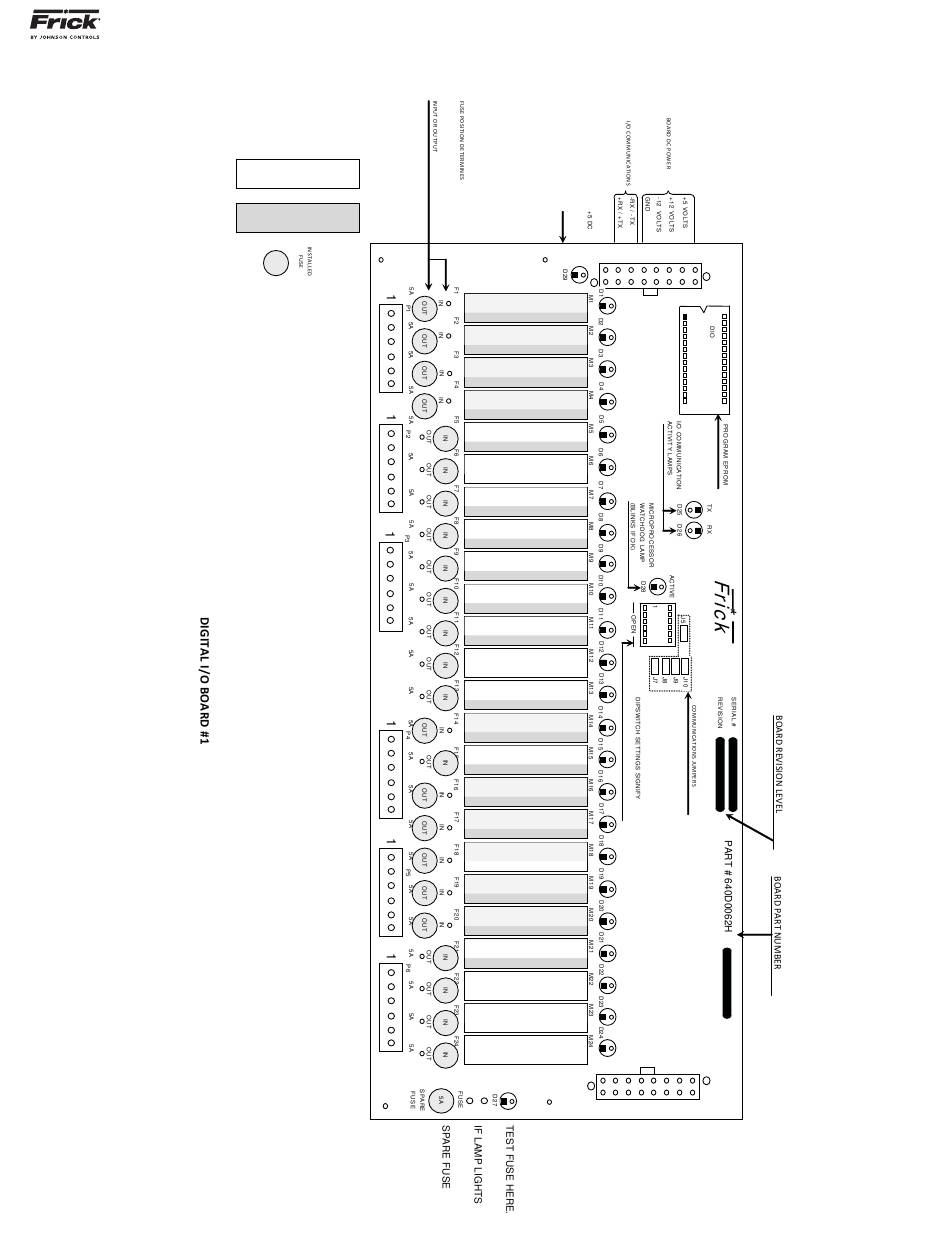

VESSEL PANEL DIGITAL I/O BOARD #1 PICTORIAL
INPUT MODULE
OUTPUT MODULE
Vessel 1 Solenoid 1
Vessel 1 Solenoid 2
HOT
NEUTRAL
Vessel 1 Refrig. Pump #1
Vessel 1 Refrig. Pump #2
Vessel 1 High Level Shutdown
Vessel 1 High Level Warning
HOT
NEUTRAL
Vessel 1 Operating Level 1
Vessel 1 Operating Level 2
Vessel 1 Low Level Warning
Vessel 1 Low Level Shutdown
HOT
NEUTRAL
Vessel 1 Refrig. Pump 1
Vessel 1 Refrig. Pump 2
Vessel 1 Compressor Running
Alarm Output #1
HOT
NEUTRAL
Aux. Input #1
Aux. #1 Output
Vessel 2 Solenoid #1
Vessel 2 Solenoid #2
HOT
NEUTRAL
Vessel 2 Refrig. Pump #1
Vessel 2 Refrig. Pump #2
Vessel 2 High Level Shutdown
Vessel 2 High Level Warning
HOT
NEUTRAL
Vessel 2 Operating Level 1
Vessel 2 Operating Level 2
MAINTENANCE
POWER
ON
OUTPUT MODULE
OUTPUT MODULE
OUTPUT MODULE
OUTPUT MODULE
INPUT MODULE
INPUT MODULE
INPUT MODULE
INPUT MODULE
INPUT MODULE
INPUT MODULE
INPUT MODULE
INPUT MODULE
INPUT MODULE
OUTPUT MODULE
INPUT MODULE
OUTUT MODULE
OUTPUT MODULE
OUTPUT MODULE
OUTPUT MODULE
OUTPUT MODULE
INPUT MODULE
INPUT MODULE
INPUT MODULE
INPUT MODULE
P8
FUSE TESTER
1
090.560-M (APRIL 13)
AMP794068-1
1
P7
U8
DP1
AMP794068-1
Page 39
