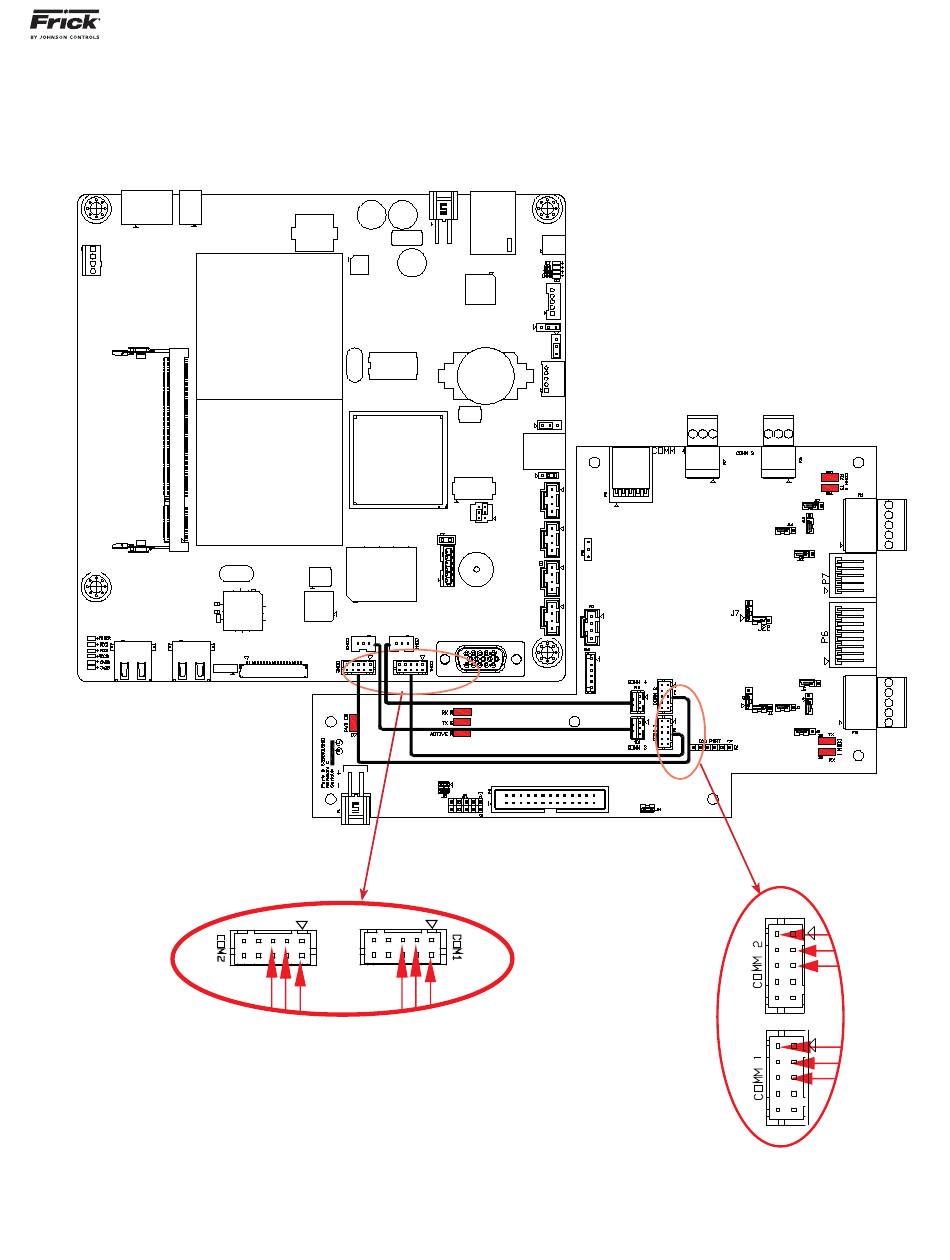

The pictorial below depicts the Q5 motherboard, and the nec-
essary interconnects between it and the Interface board. Each
QUANTUM™ LX CONDENSER/VESSEL CONTROL PANEL
MAINTENANCE
Q5 INTERCONNECTIONS
of the interconnecting harnesses must be installed as shown for
proper operation.
If the harness for
either
COMM1
COMM2 is ever re-
moved for either re-
pair, replacement or
troubleshooting, en-
sure that the pinout
matches
as
shown
here when plugging
the ends back in. All
other Interconnection
harness ends share
the same pinout at
both ends.
090.560-M (APRIL 13)
or
Page 17
