Electrified Exit Device Installation Example - Command access MLRK1-HAG Insert Instructions

Ceiling Tile
All Command Access exit devices & field installable kits have been thoroughly
U S C U S T O M E R S U P P O R T 1 - 8 8 8 - 6 2 2 - 2 3 7 7 | W W W . C O M M A N D A C C E S S . C O M | C A C U S T O M E R S U P P O R T 1 - 8 5 5 - 8 2 3 - 3 0 0 2

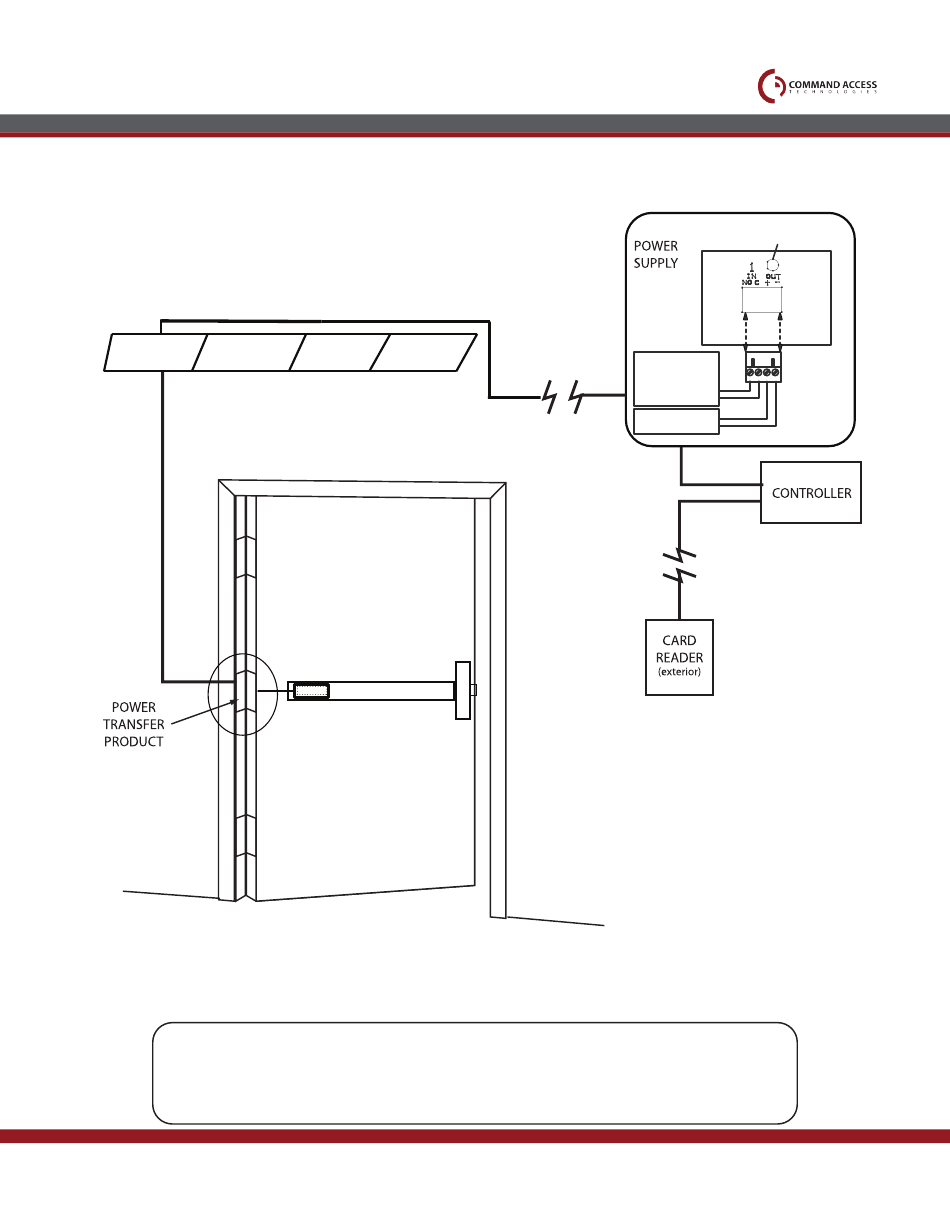

Electrified Exit Device
Installation Example
Module
R ecommend ed Po w er Su ppli e s:
cycle tested with Command Access power supplies at our factory.
CAT
GREEN
CHANNEL 1
LED
NORMALLY OPEN
DRY CONTACT FROM
ACCESS CONTROL
SYSTEM
NO VOLTAGE
+
LOCKING
HARDWARE
-
Legend
Standard Placement
Optional Placement
3
