eBOX625-842-FL Series User's Manual

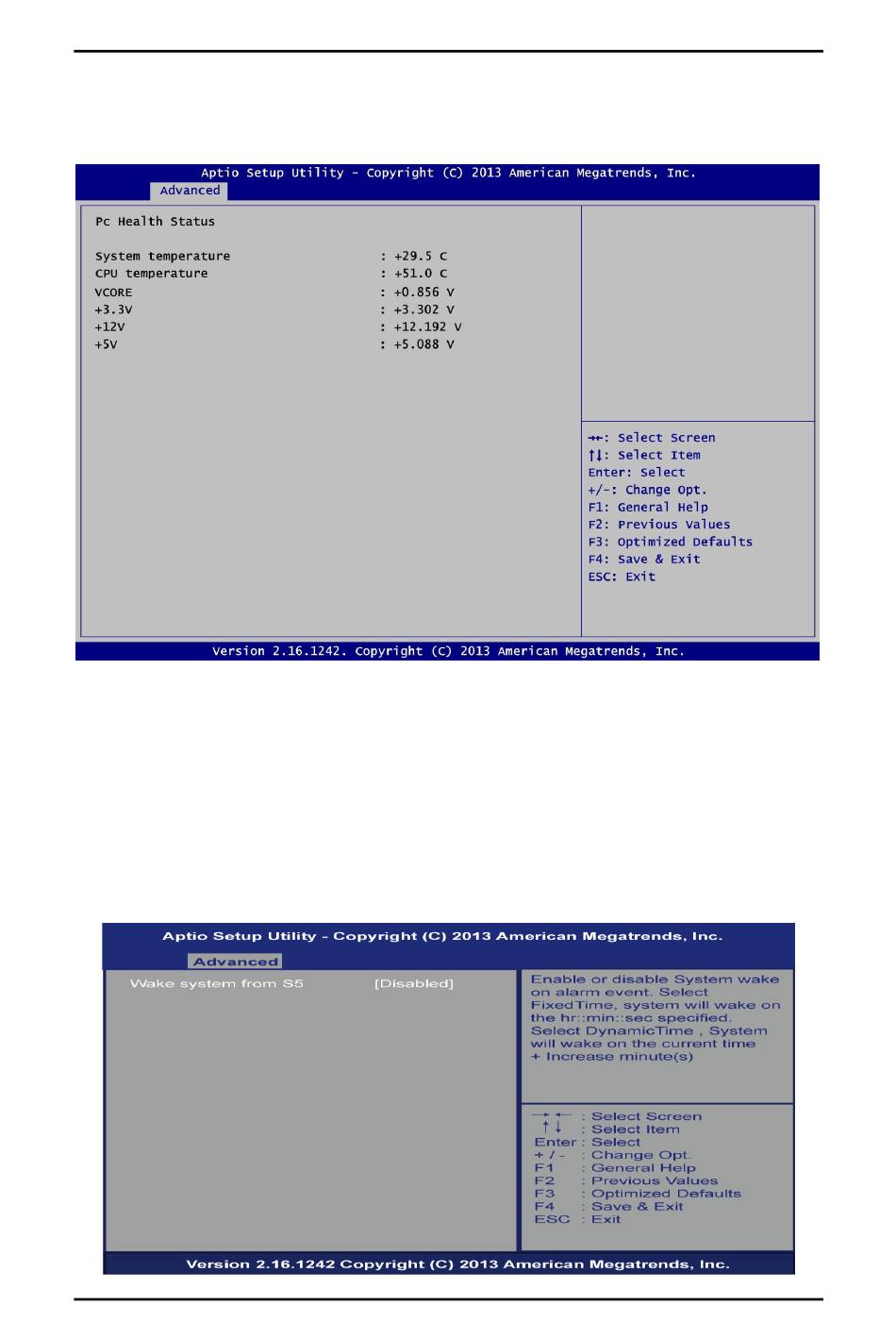

 NCT6106D HW Monitor
This screen monitors hardware health status.
This screen displays the temperature of system and CPU, and system voltages (VCORE,
+3.3V, +12V and +5V).
 S5 RTC Wake Setting
Enable or disable system wake on alarm event. When enabled, System will wake on the
hr:min::sec specified; the default setting is disabled.
While enable RTC Wake up setting, there are two options for setting Fixed Time/Dynamic
Time; While choosing Fixed Time at the BIOS and reboot the system, it will be turned on base
on the fixed setting time (hr:min:sec); for DynamicTime option, system will be turned on after
waiting time (minutes) which is set.
36
BIOS Setup Utility
