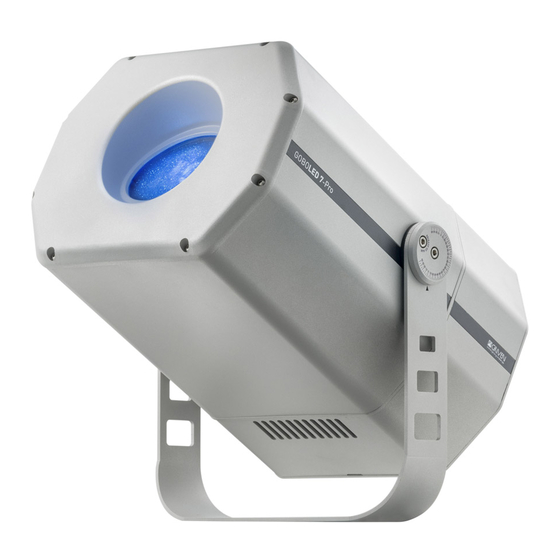

GoboLED 7-Pro
AL5160
Weight / Peso
Housing / Corpo proiettore
IK rating / classe IK
IP rating / grado IP
Ambient temp./ Temperatura ambientale
Power supply / Alimentazione
Inrush current / Corrente di spunto
Power / Potenza massima
Nominal current / Corrente nominale
Power factor / Rifasamento
Thermal protection / Protezione termica
Electrical class / Classe elettrica
Cable / Cavo
Control / Sistema di controllo
Channels / Canali
Color range / Colori
Gobos
Other features/Altre funzioni
Optics/ Ottiche
Accessories/Accessori

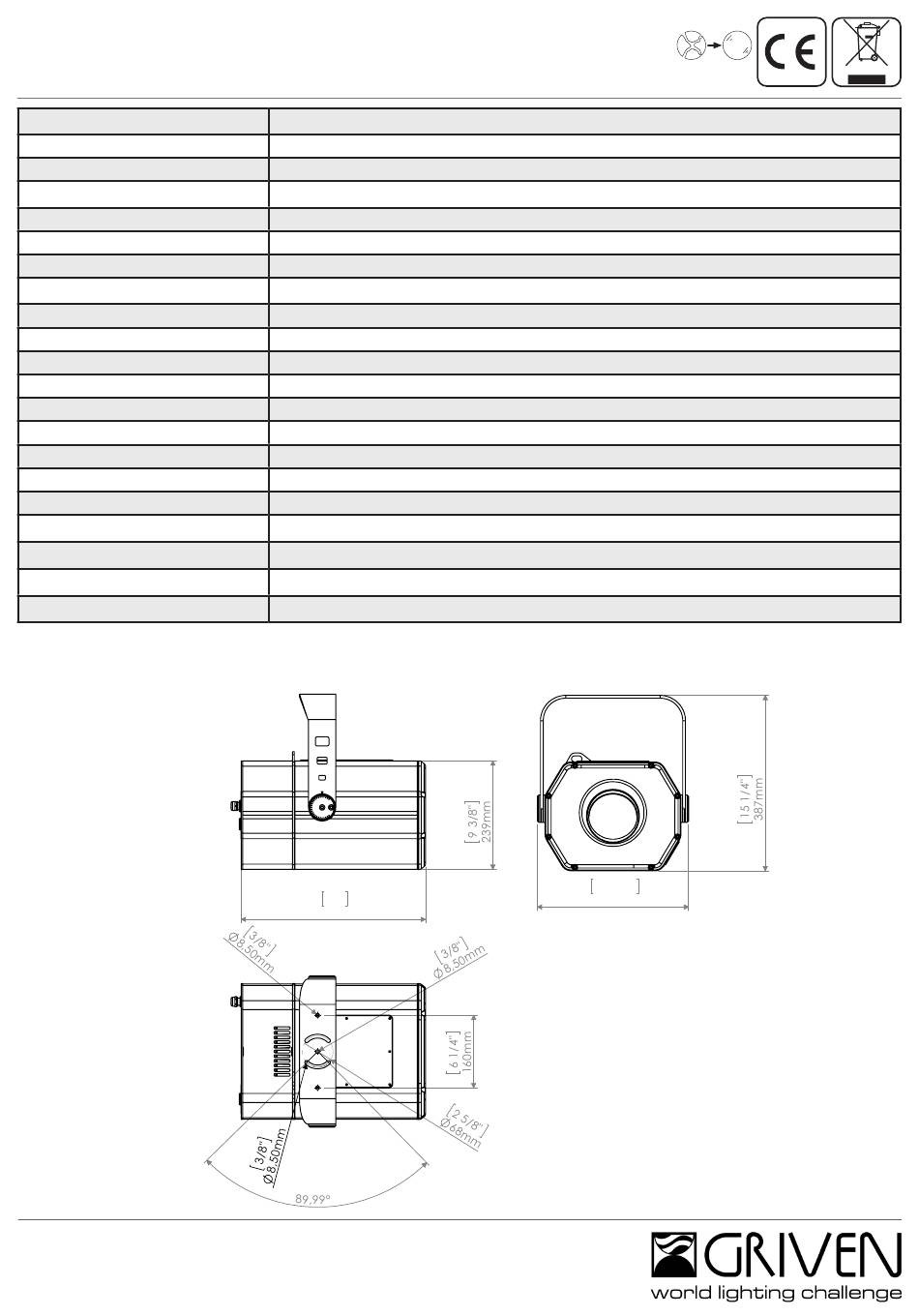

Dimensions
Griven S.r.l. - Via Bulgaria, 16
46042 Castel Goffredo
Mantova - Italy
User Manual
Rev. 1.10
Date: 06/09/2018
3 prisms, linear 0-100% dimmer, strobe function ( 27.7 FPS max), pulsation effect, electronic blackout, motorized electronic focus
16"
407mm
Tel. +39.0376.779483
© Copyright Griven 2018 - Griven reserves the right to make
changes to this product and related instructions at any time
Fax +39.0376.779682
without prior notice and such changes shall be effective
E-mail: sales@griven.com
immediatly
Web: www.griven.com
AL5160
20Kg (44 Lbs)
Iron/Alluminum, scratch resistant paint
IK07
IP66
-30°C to 50°C ( -40°F to122°F)
100-240 VAC 50/60Hz
cold start - 70A -1010 µs.
230 W
0,57A@230VAC
cos. φ= 0,96
Integrated electronic thermal protection management.
1,5 m.
USITT DMX-512 , RDM
1 High output LED 6500°K, 8 colours + white wheel
7 rotating gobos (Ø27/24 mm) wheel + 4 fixed gobos plus effect wheel
AL5161 - 11°, AL5162 - 20°, AL5163 - 31°
GR0250 Safety cable
.
I
12
13 1/8"
334mm
page 1 of 20
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Griven GoboLED 7-Pro
Summary of Contents for Griven GoboLED 7-Pro
- Page 1 407mm page 1 of 20 Griven S.r.l. - Via Bulgaria, 16 Tel. +39.0376.779483 © Copyright Griven 2018 - Griven reserves the right to make changes to this product and related instructions at any time 46042 Castel Goffredo Fax +39.0376.779682 without prior notice and such changes shall be effective Mantova - Italy E-mail: sales@griven.com...
- Page 2 - Fix the projector by using screws, hooks or other adequate supports that can bear its weight. Fissare il proiettore con viti, ganci o altri supporti in grado di sostenerne il peso. page 2 of 20 AL5160 GoboLED 7-Pro - Rev. 1.10...
- Page 3 -Far passare i cavi attraverso i fori praticati nei gommini. -Tagliare la fascetta, svolgere i cavi e forare i gommini con un cacciavite. -Close the metal cover . -Fissare nuovamente lo sportello al proiettore. page 3 of 20 AL5160 GoboLED 7-Pro - Rev. 1.10...
-
Page 4: Dmx Input
RED/ROSSO ( DATA+) WHITE/BIANCO ( COMMON) BLACK/NERO ( DATA-) Mains Power :100-240VAC 50/60 Hz. MARRONE/BROWN (L-Live) GREEN-YELLOW GIALLO-VERDE (GND) BLUE/BLU (N-Neutral) *DMX cable type: 2x0.34 mmq impedance 110Ω, capacity 43pF/m, resistance 50Ω/Km. page 4 of 20 AL5160 GoboLED 7-Pro - Rev. 1.10... - Page 5 -scroll up the menu -scroll down the menu -exit the menu Edit mode: Edit mode: Edit mode: Edit mode: -exit without modifications -confirm modification -increase the selected value -decrease the selected value page 5 of 20 AL5160 GoboLED 7-Pro - Rev. 1.10...
- Page 6 X-YY TIME 001-999 sec. tempo di scena X-YY Deleting of one scene -GoboLed 7-Pro is provided with an intelligent heating/cooling system DELETE DELETE? Cancellazione di una scena yes/no that allows to operate also in very cold ( down to -30°C /- 40°F) or hot ( +50°...
- Page 7 300 m ( 1000 ft.). Installare un terminatore di linea ( 120 Ω ) sul cavo dell’ultimo proiettore come descritto nelle istruzioni del kit di connessione . For further details consult the configurator schemes available on our Website. page 7 of 20 AL5160 GoboLED 7-Pro - Rev. 1.10...
- Page 8 Color 1 + 2 29~35 Color 2 COLOR WHEEL 36~42 Color 2 + 3 43~49 Color 3 50~56 Color 3 + 4 57~63 Color 4 64~70 Color 4 + 5 page 8 of 20 AL5160 GoboLED 7-Pro - Rev. 1.10...
- Page 9 No effect GOBOS 8~248 360° gobo indexing INDEXING 249~255 No effect GOBOS FINE 0~255 Proportional fine gobo indexing INDEXING 0~10 Open FIXED GOBO 11~20 Gobo 1 WHEEL 21~30 Gobo 2 page 9 of 20 AL5160 GoboLED 7-Pro - Rev. 1.10...
- Page 10 Zap: slow closing, fast opening (blackout during 121~130 No effect motor positioning ) 131~180 Zap: fast closing, slow opening 181~190 No effect 191~240 Zap: fast closing, fast opening 241~255 No effect page 10 of 20 AL5160 GoboLED 7-Pro - Rev. 1.10...
- Page 11 5 (ISO) Allen key 260° max excursion CAUTION: prolonged staring at the LED source should be avoided by placing the fixture in a proper position. GR0250 safety cable ( sold separately) page 11 of 20 AL5160 GoboLED 7-Pro - Rev. 1.10...
- Page 12 Fixing M8 (ISO) +45° / -45° page 12 of 20 AL5160 GoboLED 7-Pro - Rev. 1.10...
- Page 13 -Afferrare l’obiettivo per la parte -Con un cacciavite a stella svitare la posteriore e sollevarlo. vite sopra indicata. -Once inclined, pull it out. -Una volta inclinato, estrarre l’obiettivo. page 13 of 20 AL5160 GoboLED 7-Pro - Rev. 1.10...
- Page 14 -At the end of the operations, close the cover by cross-tightening the six screws. -Al termine dell’operazione chiudere il coperchio e serrare le sei viti con metodo incrociato. page 14 of 20 AL5160 GoboLED 7-Pro - Rev. 1.10...
- Page 15 -Undo the six screws to remove the cover. -Lift the cover to access the inside of the fixture. -Svitare le sei viti che fissano il coperchio, quindi -Sollevare il coperchio per accedere all’interno del proiettore. rimuoverlo. page 15 of 20 AL5160 GoboLED 7-Pro - Rev. 1.10...
- Page 16 -At the end of the operations, fix in place the crosspiece and close the cover by cross-tightening the six screws. -Al termine dell’operazione riposizionare la traversina e chiudere il coperchio e serrare le sei viti con metodo incrociato. page 16 of 20 AL5160 GoboLED 7-Pro - Rev. 1.10...
- Page 17 -Sollevare il coperchio per accedere all’interno del proiettore. rimuoverlo. -Untight the screw using a Phillips screwdriver. -Turn 90° the crosspiece . -Allentare la vite utilizzando un cacciavite a croce. -Ruotare la traversina di 90°. page 17 of 20 AL5160 GoboLED 7-Pro - Rev. 1.10...
- Page 18 -Push down the wheel (until the heads of the two screws reach the bigger slots ) to remove it. -Spingete la ruota verso il basso fino a quando le teste delle viti raggiungeranno i fori più larghi e quindi estrarre la ruota. page 18 of 20 AL5160 GoboLED 7-Pro - Rev. 1.10...
- Page 19 -At the end of the operations, fix in place the crosspiece and close the cover by cross-tightening the six screws. -Al termine dell’operazione riposizionare la traversina e chiudere il coperchio e serrare le sei viti con metodo incrociato. page 19 of 20 AL5160 GoboLED 7-Pro - Rev. 1.10...
- Page 20 20 of 20 AL5160 GoboLED 7-Pro - Rev. 1.10...
