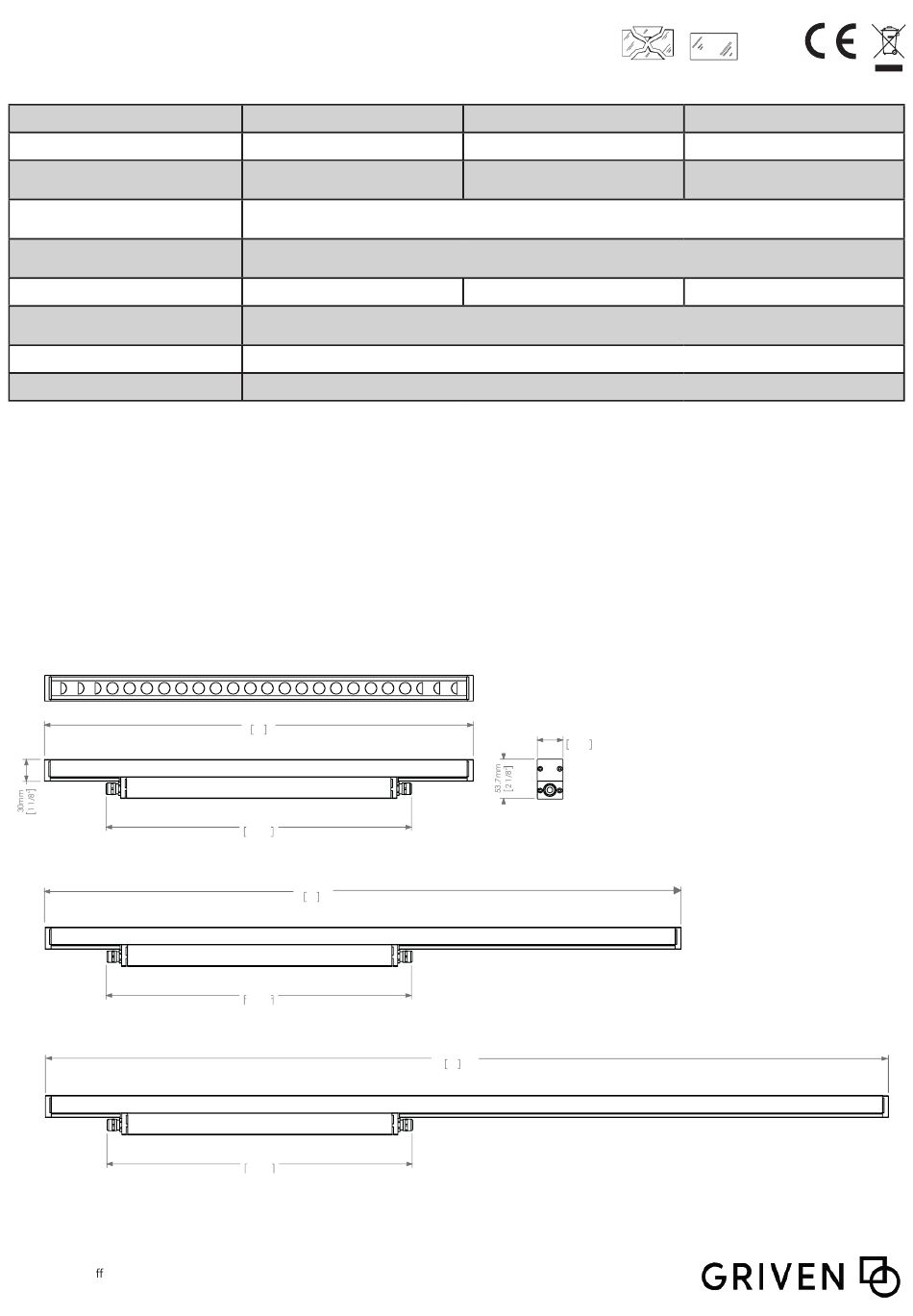

Chiron RGBW/DW
2- 3 - 4
Code / Codice
Power consumption
Consumo di energia
Remote power supply
Alimentatore remoto
Electrical class
Classe elettrica
Weight / Peso
Operating temperature
Temperatura di funzionamento
IP rating / Grado IP
IK rating / Grado IK
Size / Dimensioni
Chiron 2 RGBW
Chiron 3 RGBW
Chiron 4 RGBW
Griven S.r.l. - Via Bulgaria, 16
46042 Castel Go redo
Mantova - Italy
User Manual
Rev. 0.0
Date: 26/01/2024

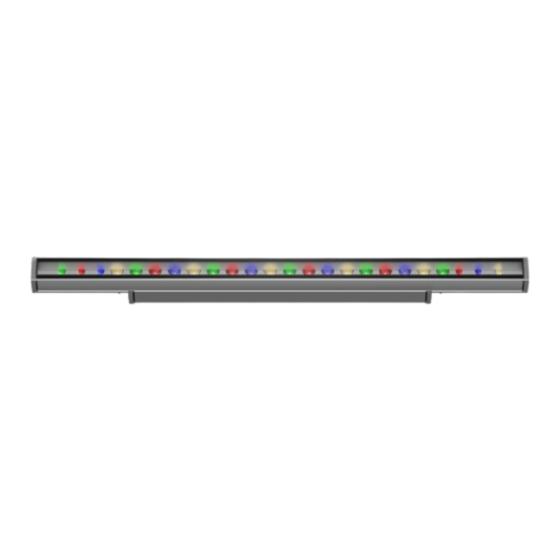

CHIRON 2 RGBW/DW
AL8320
28 W
1.2Kg
584mm
23"
416mm
16 3/8"
866mm
34"
416mm
16 3/8"
416mm
16 3/8"
Tel. +39.0376.779483
E-mail: sales@griven.com
Web: www.griven.com
CHIRON 3 RGBW/DW
AL8325
40 W
Constant Voltage: Min. 42Vdc - Max. 48Vdc
1.7Kg
-40°C to 50°C / (-40°F to 122°F)
IP67
IK06
1148mm
45"
© Copyright Griven 2020 - GRIVEN S.r.l. is continuously
developing and improving all its products.
We reserve the right to change specifications without
prior notification
CHIRON 4 RGBW/DW
III
35mm
1 3/8"
551029
AL8330
50 W
2.1Kg
page 1 of 7
Advertisement
Related Manuals for Griven CHIRON 2 RGBW/DW
Summary of Contents for Griven CHIRON 2 RGBW/DW
- Page 1 Chiron 4 RGBW 1148mm 45" 416mm 16 3/8" page 1 of 7 © Copyright Griven 2020 - GRIVEN S.r.l. is continuously Griven S.r.l. - Via Bulgaria, 16 Tel. +39.0376.779483 developing and improving all its products. E-mail: sales@griven.com 46042 Castel Go redo We reserve the right to change specifications without...
- Page 2 Important notices - Avvisi importanti - This product must be installed in accordance with applicable national and local - Questo prodotto deve essere installato secondo le normative locali, da personale electrical and construction codes by a person familiar with the construction and specializzato.
- Page 3 Important notices - Avvisi importanti Chiron RGBW/DW Brown/Marrone= L (Live) Brown/Marrone= L (Live) Blue/Blu= N (Neutral) Blue/Blu= N (Neutral) Red/Rosso= LED + Red/Rosso= LED + Black/Nero= LED - Black/Nero= LED - The external exible cable or cord of this luminaire cannot be replaced; if the cord is damaged, the luminaire shall be destroyed.
- Page 4 Connection / Connessioni CHIRON RGBW / DW “M” Cable type ( Power+DMX in/Power+DMX out) - 2x01,5 + 2X0,34 mm^2 Tipo di cavo “M” ( Hybrid cables without connectors) - 2x01,5 + 2X0,34 mm^2 Chiron 2 L 1 = 350 mm, 1.1 ft (IN/OUT) - L 2 = 376, 1.2 ft (IN/OUT) Chiron 3 L 1 = 350 mm, 1.1 ft (IN/OUT) - L 2 = 691, 2.2 ft (IN/OUT) Chiron 4 L 1 = 350 mm, 1.1 ft (IN/OUT) - L 2 = 1001, 3.1 ft (IN/OUT) DATA+...
- Page 5 Con guration examples / Esempi di con gurazioni MAXIMUN DISTANCE BETWEEN POWER SUPPLY UNIT AND LAST FIXTURE: AL8213 - 185W 48V - max 4ml [13ft] / max. 20m [65ft] with a 1.5 mm² wiring section AL4450 - 240W 48V - max. 5ml [16ft] / max. 14m [45ft] with a 1.5 mm² wiring section AL8271 - 320W 48V - max.
-
Page 6: Dmx Chart
DMX Chart RGBW and DW Mode Channel Function Value Mode 4 channel - “RGBW 4ch” 0-100% Red 0-255 0-100% Green 0-255 0-100% Blue 0-255 0-100% White 0-255 Mode 5 channel - “RGBW 5ch” 0-100% Red 0-255 0-100% Green 0-255 0-100% Blue 0-255 0-100% White 0-255... - Page 7 page 7 of 7 Chiron RGBW - Rev. 0.0...
