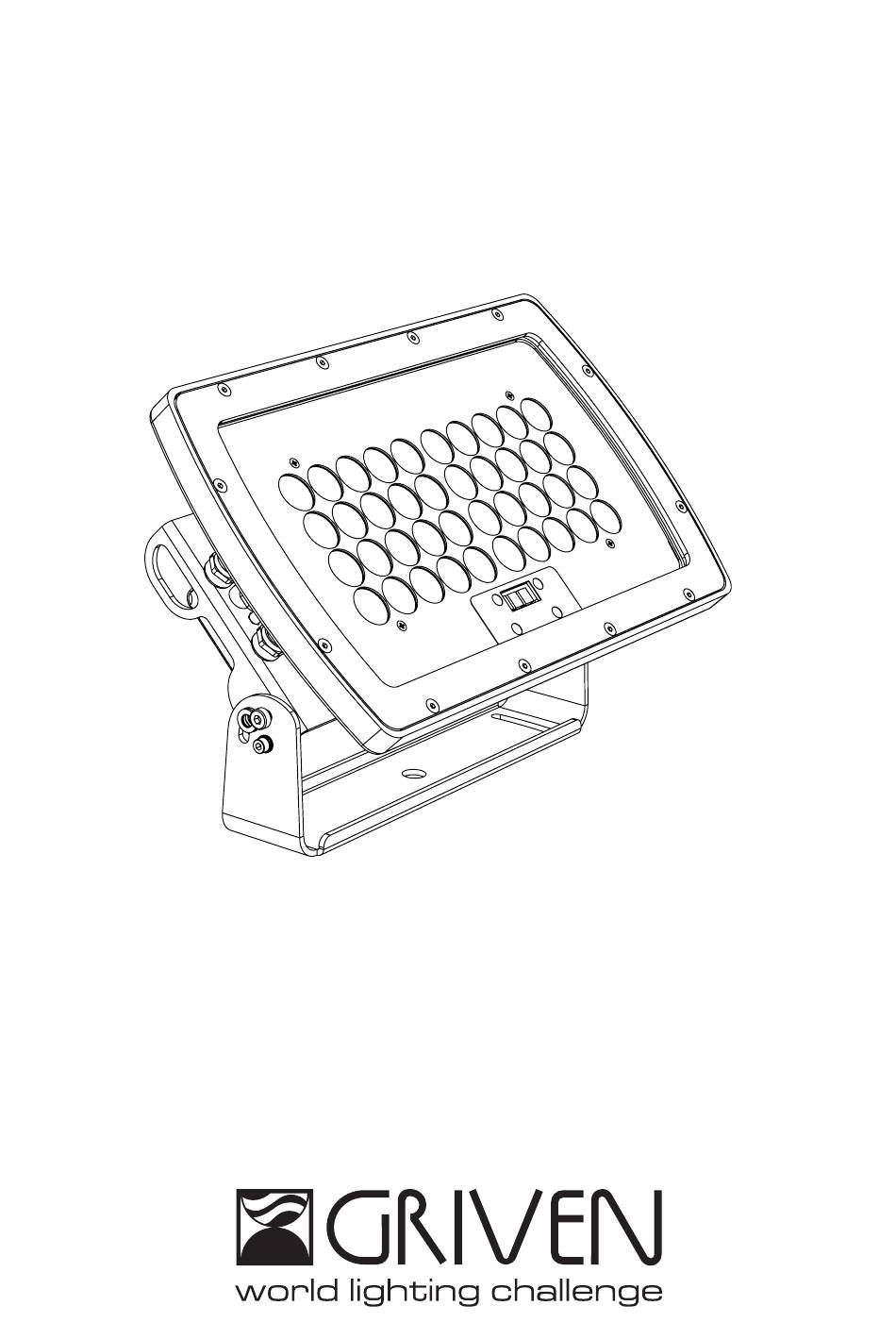

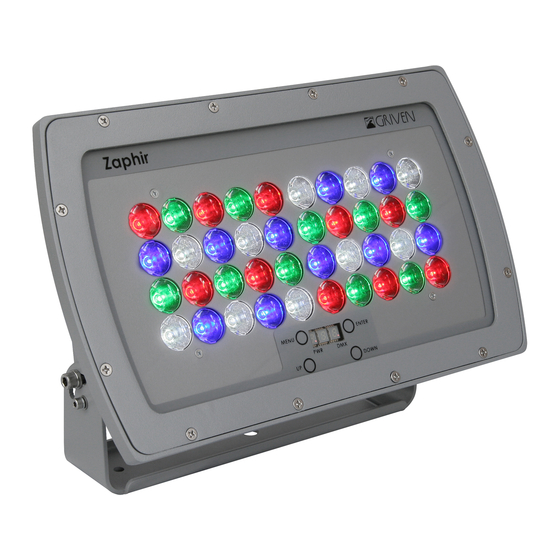

  • Page 1 ZAPHIR Manuale di istruzioni Instructions manual...

  • Page 2: Table Of Contents

    INDEX 1.0 Introduction ..........................16 1.1 Safety information...............................16 1.1.1 Protecting against electric shock ..........................16 1.1.2 Installation ................................16 1.1.3 Protection against burns and fire ...........................16 1.1.4 Weather protection..............................16 1.2 Compliance ................................16 2.0 Size ...............................17 3.0 Packaging and transport ......................17 3.1 Packaging ...................................17 3.2 Transport ..................................17 4.0 Installation ...........................18 4.1 Fixing ....................................18...

  • Page 3: Introduction

    1.0 Introduction 1.1 Safety information Warning! This unit is suitable for professional use only, not for domestic use. 1.1.1 Protecting against electric shock • Disconnect the unit from mains supply before servicing it or performing any other action. • Always ground/earth the unit electrically. •...

  • Page 4: Size

    • Griven S.r.l. will accept claims for broken or missing goods only within seven days of receipt of the goods. • Returns of equipment will not be accepted without prior authorization granted by Griven S.r.l. and if not duly ac- companied by relevant shipping documents.

  • Page 5: Installation

    4.0 Installation 4.1 Fixing The unit can be used both rested on floor and fixed onto a structure. The unit can operate in any position. Use the holes Ø12.5 (1/2”) or Ø6.5 (1/4”) in the bracket to fix the 100mm unit.

  • Page 6: Connection To Mains Power

    4.3 Connection to mains power The unit can operate with voltage from 100-277Vac and with frequency of 50 and 60Hz. Warning! • Before connecting the unit, verify that power supplies features are compatible with the unit features. • The unit must never be installed if not grounded electrically. •...

  • Page 7: Use Of The Unit

    5.0 Use of the unit 5.1 Setting operating mode By the control panel it is possible to select one of the following operating modes: • using DMX512 signal control mode Each fixture is controlled from DMX512 signal control. (see chapter DMX function) •...

  • Page 8: Dmx Function Mode

    6.0 DMX function mode 6.1 Setting DMX channels The number of DMX channels used by the unit to operate will depend from the selected operating mode. Each RGBW unit will use 4, 5 or 6 DMX channels. Each DW unit will use 2 or 3 DMX channels. Each monochrome unit will use 1 DMX channel.

  • Page 9: Dmx Functions With Dmx Mode = 6 Channels

    6.3.3 DMX functions with DMX MODE = 6 channels Channel Function Value Description 0-255 Proportional control 0-100% of the Red color Green 0-255 Proportional control 0-100% of the Green color Blue 0-255 Proportional control 0-100% of the Blue color White 0-255 Proportional control 0-100% of the White color Luminous output intensity 0%...

  • Page 10: Dmx Functions Monochrome

    6.5 DMX functions monochrome Attention! In absence of DMX signal the led will remain ON. Channel Function Value Description 0-15 Luminous output intensity 100% 16-150 Proportional control of the luminous output intensity 100-0% Dimmer Strobe 151-160 Luminous output intensity 0% 161-255 Proportional control of the strobe effect 0-100% (255=max) 7.0 Master-Slave and Automatic function - RGBW - DW...

  • Page 11: Automatic Configuration Rgbw

    7.2 AUTOMATIC configuration RGBW To activate the AUTOMATIC mode, press the “MENU” button up to visualize “ADR”. Through the “UP” and “DOWN” keys select “AUT”. Press “ENTER” to confirm. Through the “UP” and “DOWN” keys select “ACT”. Through the “UP” and “DOWN” keys select “ON” or “OFF” to activate or deactivate the AUTOMATIC mode.

  • Page 12: Dw Master Configuration

    Now, through the “UP” and “DOWN” keys, it is possible scroll the colours. 1. Red 2. Green 3. Blue 4. White Once positioned onto the desired colour, press “ENTER” to confirm. By the keys “UP”and “DOWN” select “ON” or “OFF”. It is possible to activate or disactivate the colours. Press ENTER to confirm. Now the unit is in FIXED COLOURS mode and the diplay will keep reading “COL”.

  • Page 13: Maintenance

    • Check that the unit is not damaged mechanically. Replace those components which have got deteriorated. 14.0 Spare parts All components of the unit are available as spare parts at Griven dealers. Exploded views, wiring diagrams, electronic layouts and advertising brochures are available on request.

  • Page 14: Troubleshooting

    16.0 Troubleshooting Inconvenience Possibile Cause Action Incorrect DMX cable Check connections and wires. Rectify inefficient connec- connection. tions. Repair or replace damaged wires. Insert a terminal plug in the output jack of the last Unfinished data connection. unit of the connection. Incorrect address Check the addresses of the units and the protocol settings.
  • Page 15 Via Bulgaria, 16 - 46042 CASTEL GOFFREDO (MN) - Italy Telefono 0376/779483 - Fax 0376/779682 - 0376/779552 http://www.griven.com/ e-mail griven@griven.com http://www.griven.it/ e-mail griven@griven.it User’s manual rel. 2.20...
