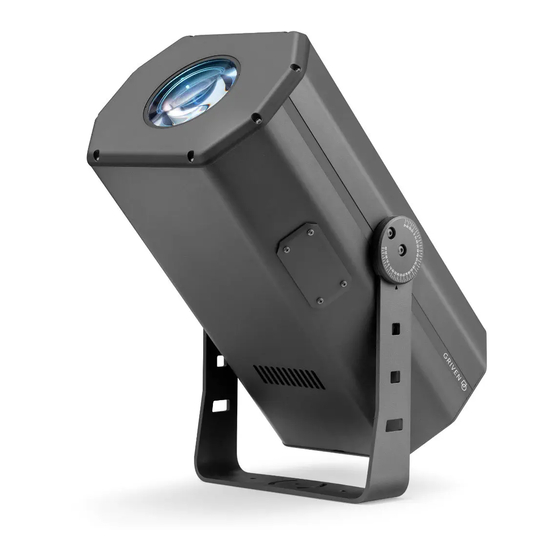

GoboLED 500
AL5179
Power consumption
Nominal current
Power supply
Inrush current
Power factor
Electrical class
Weight
Operating temperature
IP rating
IK rating
Housing
Thermal protection
Cable
Control
Channels
Source & colors
Gobos
Other features

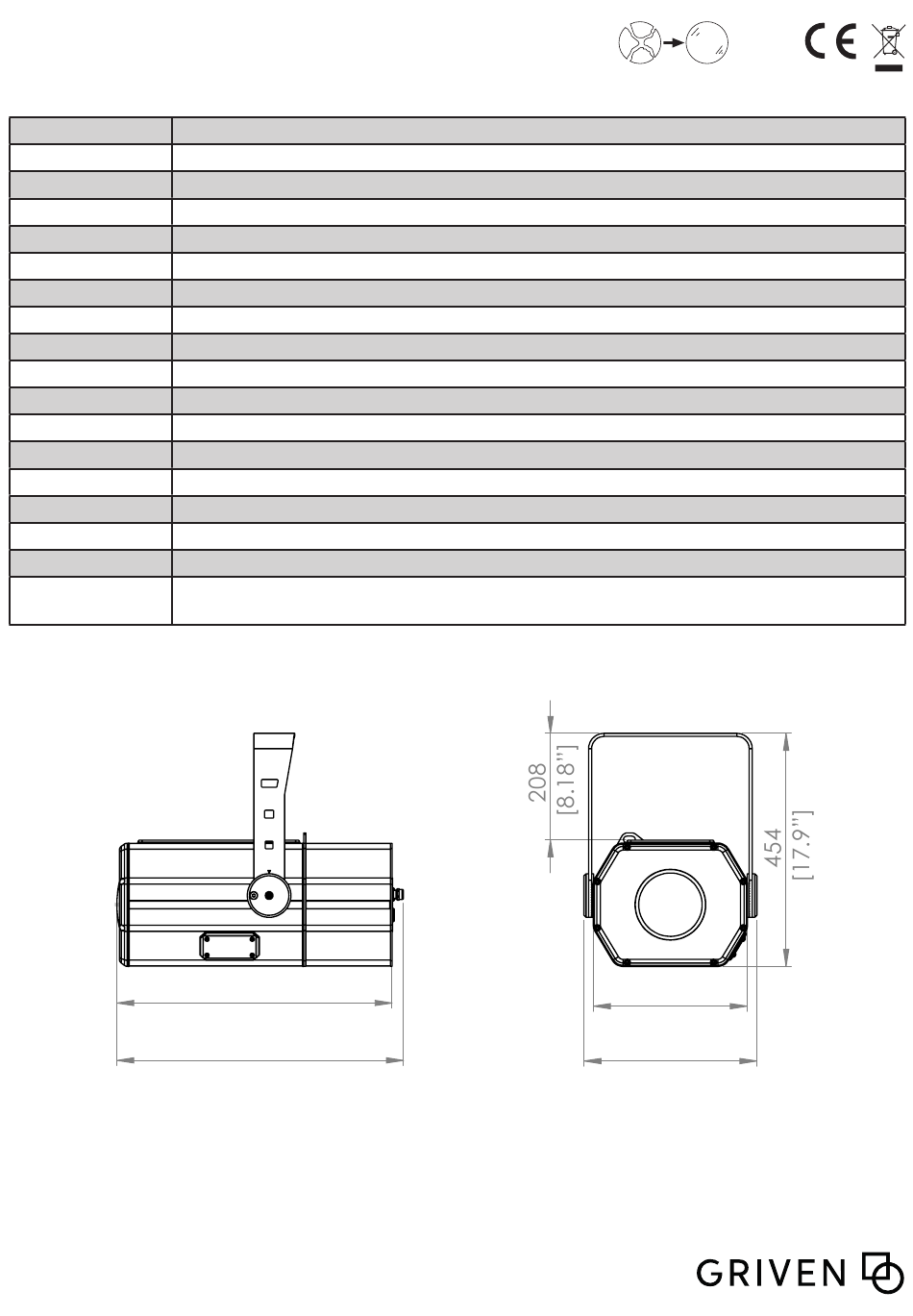

Dimensions
Griven S.r.l. - Via Bulgaria, 16
46042 Castel Goffredo
Mantova - Italy
User Manual
Rev. 1.4
Date: 27/07/2021
560 W (LED+ motors + Heater) - 425 W (LED + motors only)
2.51 A (LED+ motors + Heater)
Integrated electronic thermal protection management
1 high output LED 8000K, 8 colours+ white wheel
7 rotating gobos (ø27/22 mm) wheel + 4 fixed gobos plus effect wheel
2 prisms, linear 0-100% dimmer, strobe function (27.7 fps max), pulse and zap effect,
electronic blackout, motorized electronic focus, motorized linear zoom
536
[21"]
559
[22"]
Tel. +39.0376.779483
E-mail: sales@griven.com
Web: www.griven.com
100 - 240 VAC 50/60Hz
35 A @ 230 VAC, cold start, 1800 μs.
cos.φ= 0.97
I
30 Kg
-30°C to +50°C ( -22°F to 122°F )
IP66
IK07
Steel/alluminium, scratch resistant paint
1.5 m
USITT DMX-512, RDM
14
© Copyright Griven 2020 - GRIVEN S.r.l. is continuously
developing and improving all its products.
We reserve the right to change specifications without
prior notification
- 1.98 A (LED + motors only)
300
[11.8"]
337
[13.7"]
551093
page 1 of 20
