Underwater Series
Code / Codice
Power consumption
Consumo di energia
Power supply
Alimentazione elettrica
Electrical class
Classe elettrica
Weight / Peso
Operating temperature
Temperatura di funzionamento
IP rating / Grado IP
IK rating / Grado IK
40°
Size / Dimensioni
Micro Waterled MK3
155
6.10"
Waterled MK3
255
10.04"
Griven S.r.l. - Via Bulgaria, 16
46042 Castel Goffredo
Mantova - Italy
Micro Waterled MK3 Mini Waterled MK3
AL8365
9 W Max.
2.3 Kg / 5.1 lb
66.2
2.61"
89.45
3.30"
Tel. +39.0376.779483
© Copyright Griven 2018 - Griven reserves the right to make
changes to this product and related instructions at any time
E-mail: sales@griven.com
without prior notice and such changes shall be effective
Web: www.griven.com
immediatly
User's Manual
Rev. 1.00
Date: 15/06/2022
AL8369
25W Max.
24 Vdc
III
3.7 Kg / 8.2 lb
-20°C to 40°C / -4°F to 104°F
IP68 (-3
IK10

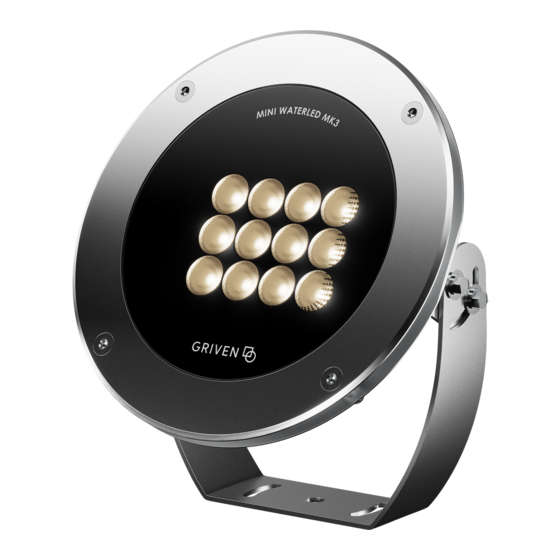

Mini Waterled MK3
Maxi Waterled MK3
.
551163
Waterled MK3
Maxi Waterled MK3
AL8373
48W Max.
4.9 Kg / 10.8 lb
)
M
215
8.46"
298
11.73"
AL8377
86W Max.
6.0 Kg / 13.23 lb
89.45
3.30"
89.45
3.30"
page 1 of 7
Advertisement
Related Manuals for Griven Micro Waterled MK3
Summary of Contents for Griven Micro Waterled MK3
- Page 1 3.30” page 1 of 7 Griven S.r.l. - Via Bulgaria, 16 Tel. +39.0376.779483 © Copyright Griven 2018 - Griven reserves the right to make changes to this product and related instructions at any time 46042 Castel Goffredo E-mail: sales@griven.com without prior notice and such changes shall be effective Mantova - Italy Web: www.griven.com...
- Page 2 Important notices / Avvertimenti importanti - This product must be installed in accordance with applicable national and local electrical and construction codes by a person familiar with the construction and operation of the product and the hazards involved. Failure to comply with the following installation instructions may result in death or serious injury. Questo prodotto deve essere installato secondo le normative locali, da personale specializzato.
- Page 3 Fixing / Fissaggio Micro Waterled MK3 Mini Waterled MK3 40° Waterled MK3 Maxi Waterled MK3 Vertical beam-aiming - Orientamento 90° 66.2 6.10” 2.61” 8.46” Hex key size 7 or 8 (ISO) Chiave inglese 7 o 8 (ISO) Connection - Connessione...
- Page 4 Power Supply 100-277 Vac 24 Vdc 120Ω RESISTANCE Junction Box (Not supplied by Griven) (Minimum IP Rating: IP67) Use a DMX repeater in case the total DMX LINE length exceeds 300m (1000 ft)* *Including the projector cable. Utilizzare un ripetitore DMX se la lunghezza totale...
- Page 5 DMX Line 1 AL4385/A Power (24 Vdc) 24 Vdc 120Ω RESISTANCE DMX Line 2 Junction Box 120Ω RESISTANCE (Not supplied by Griven) (Minimum IP Rating: IP67) Power input Power output Power Supply Power Supply 100-277 Vac Power (24 Vdc) 24 Vdc Junction Box 120Ω...
-
Page 6: Dmx Mode
IR Remote Control operations / Operazioni del telecomando IR The fixture must be configured only by using AL1321 IR remote control ( sold separately ) or via any DMX-RDM compatible controller. L’apparecchiatura deve essere configurata solo utilizzando il telecomando IR AL1321 (venduto separatamente) o tramite qualsiasi controller compatibile DMX-RDM. -
Page 7: Dmx Chart
0-100% Dimmer 0-255 • Manufacturer: it displays the name of the manufacturer 0-100% Red 0-255 (Griven). 0-100% Red fine tuning 0-255 • Model description: it displays the fixture’s model. • Software version description: it displays the current version 0-100% Green 0-255 of the firmware.
